2806

项序 零配件号码 最近的零配件号码 描述
1 CH11512 1 CH11512 CYL 座盖 ASSY
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11512 1 CH11512 CYL HEAD COVER ASSY
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CH10840 1 CH10840 SEAL - O RING
3 CH10316 2 CH10316 SEAL - O RING
4 CH11079 1 CH11079 SEAL - O RING
5 CH11573 1 CH11573 SEAL - O RING
6 CH10371 12 CH10371 STUD
7 CH10775 1 CH10775 STUD
8 CH10340 1 CH10340 SEAL - O RING
9 CH10544 2 CH10544 SEAL - O RING
10 CH11562 2 CH11562 SEAL - O RING
11 R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH
12 CH10816 2 CH10816 SEAL - O RING
13 1 SEALING RING
14 1 SEAL
15 1 Check History FILTER HOUSING
16 6 CONROD BEARING
17 6 PISTON
18 2 THRUST WASHER
19 7 BEARING
20 1 SEAL - INJECTOR
21 6 PISTON RING
22 CH10620 1 CH10620 SEAL - O RING
23 6 PISTON RING
24 6 PISTON RING
25 CH10829 1 CH10829 GASKET - TIMING CASE
26 CH11560 1 CH11560 SEAL
27 CH12739 1 CH12739 GASKET - SUMP
28 1 GASKET - CYLINDER HEAD
29 R/CH11607 1 R/CH11607 TURBOCHARGER - EXCHANGE
30 R/CH11608 1 R/CH11608 TURBOCHARGER - EXCHANGE
31 CH10545 1 CH10545 SEAL - O RING
32 CH10757 1 CH10757 SEAL
33 CH10579 2 CH10579 GASKET
34 CH12010 3 CH12010 SEAL
35 CH11379 1 CH11379 SEAL - FRONT END OIL
36 CH11304 1 CH11304 SEAL - REAR END OIL
37 CH10554 1 CH10554 SEAL - WATER PUMP
38 CH11654 6 CH11654 SEAL - OIL
39 CH11656 12 CH11656 SEAL - OIL
40 CH10625 1 CH10625 GASKET
41 R/CH10860 1 R/CH10860 OIL PUMP - EXCHANGE
42 CH10795 3 CH10795 PLUG
43 CH10770 1 CH10770 SEAL - THERMOSTAT HOUSING
44 CH10727 12 CH10727 SEAL - O RING
45 CH10766 1 CH10766 SEAL - O RING
46 CH10755 2 CH10755 SEAL - O RING
47 CH11503 6 CH11503 GUDGEON PIN
48 CH11619 1 CH11619 SEAL - O RING
49 CH11561 2 CH11561 GASKET
50 CH10008 1 CH10008 GASKET
51 CH10582 2 CH10582 BOLT
52 CH11001 1 CH11001 PIPE - FUEL
53 CH11002 1 CH11002 PIPE - FUEL
54 T409314 7 T409314 SEAL - O RING
55 CH11880 12 CH11880 SEAL - O RING
56 CH11507 6 CH11507 CON ROD ASSEMBLY
57 CH11398 1 CH11398 GASKET
58 CH12649 1 CH12649 SEAL - O RING
59 CH11508 12 CH11508 CIRCLIP
60 T406205 5 T406205 SEAL - O RING
61 CH11620 2 CH11620 THERMOSTAT
62 CH12062 1 CH12062 SEAL
63 CH12063 1 CH12063 SEAL
64 CH12340 6 CH12340 SLEEVE
65 R/CH12071 6 R/CH12071 INJECTOR - EXCHANGE
66 CH10940 2 CH10940 GASKET
67 CH10733 8 CH10733 BOLT
68 1 LIFT PUMP
69 CH12742 6 CH12742 LINER - PRESS FIT
70 R/CH12790 1 R/CH12790 WATER PUMP - EXCHANGE
71 CH10703 24 CH10703 SEAL
72 CH10046 2 CH10046 SEAL - O RING
73 CH10047 1 CH10047 SEAL - O RING
74 CH10050 1 CH10050 SEAL - O RING
75 CH10870 1 CH10870 SEAL - O RING
76 CH10056 2 CH10056 SEAL - THERMOSTAT HOUSING
77 CH12347 1 CH12347 HOSE
78 CH10612 1 CH10612 SEAL - O RING
79 CH11602 1 CH11602 GASKET
79 CH10668I 1 CH10668I SEAL
79 CH10980 1 CH10980 DIPSTICK ASSEMBLY
79 CH11560 3 CH11560 SEAL
79 CH12739 2 CH12739 GASKET - SUMP
79 KRP1643 1 KRP1643 SEAL KIT
79 KRP1719 1 KRP1719 OIL FILTER ASSEMBLY
79 KRP3016 1 KRP3016 BIG END BEARING KIT
79 KRP3021 6 KRP3021 PISTON RING KIT
79 KRP3022 1 KRP3022 BIG END BEARING KIT
79 KRP3026 6 KRP3026 PISTON KIT
79 KRP3122 1 KRP3122 MAIN BEARING KIT
79 KRP3206 1 KRP3206 THRUST WASHER KIT
79 R/CH11218 1 R/CH11218 TURBOCHARGER - EXCHANGE
80 CH10660 2 CH10660 SEAL - O RING
81 CH11905 1 CH11905 SEAL - O RING
82 CH11906 1 CH11906 SEAL - O RING
83 CH10587 1 CH10587 SEAL - O RING
84 CH10119 1 CH10119 SEAL - O RING
85 CH10875 1 CH10875 SEAL - O RING
86 CH10132 1 CH10132 SEAL - O RING
87 CH11621 1 CH11621 SEAL - O RING
88 CH12756 1 CH12756 SEAL - O RING
89 CH10146 3 CH10146 SEAL - O RING
90 CH11761 2 CH11761 GASKET - TURBOCHARGER
91 CH10224 2 CH10224 SEAL - O RING
92 CH10228 1 CH10228 SEAL - O RING
93 CH10229 1 CH10229 SEAL - O RING
94 CH10791 12 CH10791 BOLT
95 CH10590 1 CH10590 SEAL - O RING
96 CH10673 6 CH10673 BAND
97 CH11614 1 CH11614 SEAL - O RING
98 CH10723 6 CH10723 SEAL - O RING
99 CH10310 1 CH10310 GASKET
100 CH11353 1 CH11353 SEAL - ROCKER BOX COVER

项序 零配件号码 最近的零配件号码 描述
2 CH11353 1 CH11353 摇臂室垫片
3 CH10955 15 CH10955
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CH11353 1 CH11353 SEAL - ROCKER BOX COVER
3 CH10955 15 CH10955 FASTENER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
12 1 CYLINDER HEAD
13 CH10731 12 CH10731 VALVE SEAT INSERT
14 CH11021 12 CH11021 INTAKE VALVE
15 CH10732 12 CH10732 VALVE SEAT INSERT
16 CH11022 12 CH11022 EXHAUST VALVE
17 CH10724 24 CH10724 VALVE GUIDE
18 CH10716 24 CH10716 WASHER
19 CH11486 24 CH11486 SEAL - VALVE STEM
20 CH11487 24 CH12798 VALVE SPRING OUTER
21 CH11489 24 CH11489 VALVE SPRING INNER
22 CH10715 24 CH10715 SEAT
23 CH10019 48 CH10019 VALVE COLLET
24 CH11311 6 CH11311 SLEEVE
25 CH10726 6 CH10726 SEAL - O RING
26 CH10727 6 CH10727 SEAL - O RING
27 CH10723 6 CH10723 SEAL - O RING
28 CH10032 17 CH10032 PLUG
29 CH10258 3 CH10258 PLUG
30 CH11228 7 CH11228 CAMSHAFT BUSH
31 CH10722 20 CH10722 PLUG

项序 零配件号码 最近的零配件号码 描述
1 T401471 1 T401471 曲轴组件
1 CH11521 1 CH11521 曲轴组件
6 CH11379 1 CH11379 密封垫 -前面端油
7 KRP3122 1 KRP3122 曲轴瓦
7 KRP3118 1 KRP3122 曲轴瓦
(7) KRP3116/025 1 KRP3116/025 曲轴瓦 -U/S
(7) KRP3116/050 1 KRP3116/050 曲轴瓦 -U/S
(7) KRP3117/025 1 KRP3117/025 曲轴瓦 -U/S
(7) KRP3117/050 1 KRP3117/050 曲轴瓦 -U/S
(7) CV11001 1 CV11001                   (-)0.63 MM
(7) CV11002 1 CV11002                   (-)0.127 MM
(7) CV11003 1 CV11003                   (+)0.63 MM
(7) CV11004 1 CV11004                   (+-)0.63 MM
8 KRP3206 1 KRP3206 止推片
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T401471 1 T401471 CRANKSHAFT ASSEMBLY
1 CH11521 1 CH11521 CRANKSHAFT ASSEMBLY
6 CH11379 1 CH11379 SEAL - FRONT END OIL
7 KRP3122 1 KRP3122 MAIN BEARING KIT
7 KRP3118 1 KRP3122 MAIN BEARING KIT
(7) KRP3116/025 1 KRP3116/025 MAIN BEARING KIT - U/S
(7) KRP3116/050 1 KRP3116/050 MAIN BEARING KIT - U/S
(7) KRP3117/025 1 KRP3117/025 MAIN BEARING KIT - U/S
(7) KRP3117/050 1 KRP3117/050 MAIN BEARING KIT - U/S
(7) CV11001 1 CV11001 MAIN SHELL BEARING (-)0.63MM
(7) CV11002 1 CV11002 MAIN SHELL BEARING (-)0.127MM
(7) CV11003 1 CV11003 MAIN SHELL BEARING (+)0.63MM
(7) CV11004 1 CV11004 MAIN SHELL BEARING (+-)0.63MM
8 KRP3206 1 KRP3206 THRUST WASHER KIT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11375 1 CH11375 PLUG
2 CH10119 1 CH10119 SEAL - O RING
3 CH10287 1 CH10287 PLUG
4 T406205 1 T406205 SEAL - O RING
5 CH10286 5 CH10286 PLUG
6 CH11880 5 CH11880 SEAL - O RING
7 CH10287 2 CH10287 PLUG
8 CH10146 2 CH10146 SEAL - O RING
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
69 1 PUMP BODY
73 CH10861 1 CH10861 END COVER
74 CH10862 1 CH10862 SHAFT
75 CH10863 1 CH10863 DRIVE SHAFT
76 CH10748 4 CH10748 BOLT
77 CH10736 1 CH10736 RETAINER
78 CH10735 2 CH10735 BOLT
79 CH10541 2 CH10255 WASHER
80 CH10737 1 CH10737 SPRING
81 CH10738 1 CH10738 PLUNGER


项序 零配件号码 最近的零配件号码 描述
2 1
3 CH10652 1 CH10652 销
4 CH10653 1 CH10653 合钉
5 CH12793 1 CH12793 曲轴传动机构
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CRANKSHAFT
3 CH11687 1 CH12793 CRANKSHAFT GEAR
4 CH10653 1 CH10653 DOWEL
5 CH10652 1 CH10652 PIN
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CRANKSHAFT
3 CH10652 1 CH10652 PIN
4 CH10653 1 CH10653 DOWEL
5 CH12793 1 CH12793 CRANKSHAFT GEAR
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
116 1 WATER PUMP HOUSING
117 CH12680 1 CH12680 STRAINER
118 CH11545 1 CH11545 PLUG
119 CH10559 1 CH10559 RETAINING PLATE
120 CH11544 1 CH11544 WATER PUMP GEAR
121 CH10557 4 CH10557 BOLT
122 CH11943 1 CH11943 IMPELLER
123 CH11942 1 CH11942 SHAFT
124 CH10558 1 CH10558 ROLLER BEARING
125 CH12791 1 CH12791 SEAL

项序 零配件号码 最近的零配件号码 描述
1 CH11552 1 CH11552 堵塞盖
2 CH10310 1 CH10310 密封垫
3 CH11554 3 CH11554 螺拴
4 CH10100 3 CH10100 垫圈
5 CH10539 2 CH10539 堵塞盖
6 T400196 2 T400196 密封垫
7 CH10538 2 CH10538 螺拴
8 CH10255 2 CH10255 垫圈
9 CH11895 2 CH11895 螺拴
10 CH10255 2 CH10255 垫圈
11 1 堵塞盖
12 CH11560 1 CH11560 密封垫
13 CH10815 2 CH10815 螺拴
14 CH10255 2 CH10255 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11552 1 CH11552 BLANKING COVER
2 CH10310 1 CH10310 GASKET
3 CH11554 3 CH11554 BOLT
4 CH10100 3 CH10100 WASHER
5 CH10539 2 CH10539 BLANKING COVER
6 T400196 2 T400196 SEAL
7 CH10538 2 CH10538 BOLT
8 CH10255 2 CH10255 WASHER
9 CH11895 2 CH11895 BOLT
10 CH10255 2 CH10255 WASHER
11 1 BLANKING COVER
12 CH11560 1 CH11560 SEAL
13 CH10815 2 CH10815 BOLT
14 CH10255 2 CH10255 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CH10840 1 CH10840 SEAL - O RING
3 CH10316 2 CH10316 SEAL - O RING
4 CH11079 1 CH11079 SEAL - O RING
5 CH11573 1 CH11573 SEAL - O RING
6 CH10340 1 CH10340 SEAL - O RING
7 CH10544 2 CH10544 SEAL - O RING
8 CH10816 2 CH10816 SEAL - O RING
9 1 SEALING RING
10 CH10668I 1 CH10668I SEAL
11 1 Check History FILTER HOUSING
12 6 CONROD BEARING
13 6 PISTON
14 2 THRUST WASHER
15 7 BEARING
16 1 SEAL - INJECTOR
17 CH10620 1 CH10620 SEAL - O RING
18 6 PISTON RING
19 6 PISTON RING
20 6 PISTON RING
21 CH10829 1 CH10829 GASKET - TIMING CASE
22 CH11560 1 CH11560 SEAL
23 CH12739 1 CH12739 GASKET - SUMP
24 1 GASKET - CYLINDER HEAD
25 CH10545 1 CH10545 SEAL - O RING
26 CH10757 1 CH10757 SEAL
27 CH10579 2 CH10579 GASKET
28 CH12010 3 CH12010 SEAL
29 CH11379 1 CH11379 SEAL - FRONT END OIL
30 CH11304 1 CH11304 SEAL - REAR END OIL
31 CH10554 1 CH10554 SEAL - WATER PUMP
32 CH11654 6 CH11654 SEAL - OIL
33 CH11656 12 CH11656 SEAL - OIL
34 CH10625 1 CH10625 GASKET
35 R/CH10860 1 R/CH10860 OIL PUMP - EXCHANGE
36 CH10795 3 CH10795 PLUG
37 CH10770 1 CH10770 SEAL - THERMOSTAT HOUSING
38 CH10727 12 CH10727 SEAL - O RING
39 CH10766 1 CH10766 SEAL - O RING
40 CH10755 2 CH10755 SEAL - O RING
41 CH11503 6 CH11503 GUDGEON PIN
42 CH11619 1 CH11619 SEAL - O RING
43 CH11561 2 CH11561 GASKET
44 CH10008 1 CH10008 GASKET
45 CH11001 1 CH11001 PIPE - FUEL
46 CH11002 1 CH11002 PIPE - FUEL
47 T409314 7 T409314 SEAL - O RING
48 CH11880 12 CH11880 SEAL - O RING
49 CH11398 1 CH11398 GASKET
50 CH12649 1 CH12649 SEAL - O RING
51 CH11508 12 CH11508 CIRCLIP
52 T406205 5 T406205 SEAL - O RING
53 CH11620 2 CH11620 THERMOSTAT
54 CH12062 1 CH12062 SEAL
54 CH10340 12 CH10340 SEAL - O RING
55 CH12063 1 CH12063 SEAL
56 CH12340 6 CH12340 SLEEVE
57 CH10940 2 CH10940 GASKET
58 1 LIFT PUMP
59 CH12742 6 CH12742 LINER - PRESS FIT
60 R/CH12790 1 R/CH12790 WATER PUMP - EXCHANGE
61 CH10703 24 CH10703 SEAL
62 CH10046 2 CH10046 SEAL - O RING
63 CH10047 1 CH10047 SEAL - O RING
64 CH10050 1 CH10050 SEAL - O RING
65 CH10870 1 CH10870 SEAL - O RING
66 CH10056 2 CH10056 SEAL - THERMOSTAT HOUSING
67 CH12347 1 CH12347 HOSE
68 CH10612 1 CH10612 SEAL - O RING
69 CH11602 1 CH11602 GASKET
70 CH10660 2 CH10660 SEAL - O RING
71 CH11905 1 CH11905 SEAL - O RING
72 CH11906 1 CH11906 SEAL - O RING
73 CH10587 1 CH10587 SEAL - O RING
74 CH10119 1 CH10119 SEAL - O RING
75 CH10875 1 CH10875 SEAL - O RING
76 CH10132 1 CH10132 SEAL - O RING
77 CH11621 1 CH11621 SEAL - O RING
78 CH12756 1 CH12756 SEAL - O RING
79 CH10146 3 CH10146 SEAL - O RING
80 CH11761 2 CH11761 GASKET - TURBOCHARGER
81 CH10224 2 CH10224 SEAL - O RING
82 CH10228 1 CH10228 SEAL - O RING
83 CH10229 1 CH10229 SEAL - O RING
84 CH10590 1 CH10590 SEAL - O RING
85 CH10673 6 CH10673 BAND
86 CH11614 1 CH11614 SEAL - O RING
87 CH10723 6 CH10723 SEAL - O RING
88 CH10310 1 CH10310 GASKET
89 CH11353 1 CH11353 SEAL - ROCKER BOX COVER

项序 零配件号码 最近的零配件号码 描述
CH10567 1 CH10567 螺拴
1 CH10594 1 CH10594 承接器
2 CH10581 1 CH10581 扣环
3 CH10004 2 CH10004 滚珠轴承
4 CH10592 1 CH10592 燃油喷射泵传动机构
5 CH10583 3 CH10583 螺拴
5 CH10541 4 CH10255 垫圈
6 CH10593 3 CH10593 垫圈
7 CH10550 3 CH10550 螺拴
8 CH10255 4 CH10255 垫圈
9 CH10590 1 CH10590 密封垫O形圈
10 CH10798 1 CH10798 螺帽
11 CH12764 1 CH12764 图钉
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10567 1 CH10567 BOLT
1 CH10594 1 CH10594 ADAPTOR
2 CH10581 1 CH10581 SNAP RING
3 CH10004 2 CH10004 BALL BEARING
4 CH10592 1 CH10592 FUEL INJECTION PUMP GEAR
5 CH10583 3 CH10583 BOLT
5 CH10541 4 CH10255 WASHER
6 CH10593 3 CH10593 WASHER
7 CH10550 3 CH10550 BOLT
8 CH10255 4 CH10255 WASHER
9 CH10590 1 CH10590 SEAL - O RING
10 CH10798 1 CH10798 NUT
11 CH12764 1 CH12764 STUD
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
44 1 PUMP BODY
48 CH10861 1 CH10861 END COVER
49 CH10862 1 CH10862 SHAFT
50 CH10863 1 CH10863 DRIVE SHAFT
51 CH10748 4 CH10748 BOLT
52 CH10736 1 CH10736 RETAINER
53 CH10735 2 CH10735 BOLT
54 CH10541 2 CH10255 WASHER
55 CH10737 1 CH10737 SPRING
56 CH10738 1 CH10738 PLUNGER

项序 零配件号码 最近的零配件号码 描述
1 CH12695 3 CH12695 摇臂轴
1 CH10685 3 CH12695 摇臂轴
2 T400223 12 T400223 摇臂组件
2 CH11165 12 T400223 摇臂组件
3 CH12701 12 CH12701 螺旋
3 CH11162 12                  螺旋
3 CH11916 12                  螺旋
4 T400403 12 T400403 螺帽
4 CH10688 12 T400403 螺帽
4 CH12697 12 T400403 螺帽
5 CH10229 12 CH10229 密封垫O形圈
6 CH12702 12 CH12702 枢
6 CH10689 12 CH12702 钮扣
6 CH12510 12 CH12702 枢
7 CH12831 12 CH12831 结轴块
7 CH10680 12 CH12831 结轴
8 T400224 6 T400224 摇臂组件
8 CH11161 6 T400224 摇臂组件
8 CH12698 6 T400224 摇臂组件
9 CH11076 6 CH11076 螺旋
10 CH11077 6 CH11077 螺帽
11 CH11079 6 CH11079 密封垫O形圈
12 CH11078 6 CH11078 钮扣
13 CH10566 4 CH10566 螺拴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12695 3 CH12695 ROCKER SHAFT
1 CH10685 3 CH12695 ROCKER SHAFT
2 T400223 12 T400223 ROCKER ARM ASSEMBLY
2 CH11165 12 T400223 ROCKER ARM ASSEMBLY
3 CH12701 12 CH12701 SCREW
3 CH11162 12 Check History SCREW
3 CH11916 12 Check History SCREW
4 T400403 12 T400403 NUT
4 CH10688 12 T400403 NUT
4 CH12697 12 T400403 NUT
5 CH10229 12 CH10229 SEAL - O RING
6 CH12702 12 CH12702 PIVOT
6 CH10689 12 CH12702 BUTTON
6 CH12510 12 CH12702 PIVOT
7 CH12831 12 CH12831 BRIDGE PIECE
7 CH10680 12 CH12831 BRIDGE
8 T400224 6 T400224 ROCKER ARM ASSEMBLY
8 CH11161 6 T400224 ROCKER ARM ASSEMBLY
8 CH12698 6 T400224 ROCKER ARM ASSEMBLY
9 CH11076 6 CH11076 SCREW
10 CH11077 6 CH11077 NUT
11 CH11079 6 CH11079 SEAL - O RING
12 CH11078 6 CH11078 BUTTON
13 CH10566 4 CH10566 BOLT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
82 1 WATER PUMP HOUSING
83 CH12680 1 CH12680 STRAINER
84 CH11545 1 CH11545 PLUG
85 CH10559 1 CH10559 RETAINING PLATE
86 CH11544 1 CH11544 WATER PUMP GEAR
87 CH10557 4 CH10557 BOLT
88 CH11943 1 CH11943 IMPELLER
89 CH11942 1 CH11942 SHAFT
90 CH10558 1 CH10558 ROLLER BEARING
91 CH12791 1 CH12791 SEAL

项序 零配件号码 最近的零配件号码 描述
1 CH11526 1 CH11526 惰轮传动机构
1 CH10963 1 CH10963 惰轮传动机构
2 CH10876 1 CH10876 螺木桩
3 CH10611 5 CH10611 螺拴
4 CH10619 1 CH10619 推力板
5 CH10621 4 CH10621 螺拴
6 CH10622 1 CH10622 油泵传动机构
7 CH10005 1 CH10005 半圆键
8 CH10609 1 CH10609 螺拴
9 CH10610 1 CH10610 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11526 1 CH11526 IDLER GEAR
1 CH10963 1 CH10963 IDLER GEAR
2 CH10876 1 CH10876 STUB
3 CH10611 5 CH10611 BOLT
4 CH10619 1 CH10619 THRUST PLATE
5 CH10621 4 CH10621 BOLT
6 CH10622 1 CH10622 OIL PUMP GEAR
7 CH10005 1 CH10005 WOODRUFF KEY
8 CH10609 1 CH10609 BOLT
9 CH10610 1 CH10610 WASHER



项序 零配件号码 最近的零配件号码 描述
1 T400235 1 T400235 凸轮轴传动机构
1 CH10910 1 T400235 凸轮轴传动机构
7 CH10616 6 CH10616 螺拴
8 CH10617 1 CH10617 推力板
9 CH10618 3 CH10618 螺拴
10 CH10625 1 CH10625 密封垫
11 CH10620 1 CH10620 密封垫O形圈
12 CH10612 1 CH10612 密封垫O形圈
13 CH10627 1 CH10627 承接器
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T400235 1 T400235 CAMSHAFT GEAR
1 CH10910 1 T400235 CAMSHAFT GEAR
7 CH10616 6 CH10616 BOLT
8 CH10617 1 CH10617 THRUST PLATE
9 CH10618 3 CH10618 BOLT
10 CH10625 1 CH10625 GASKET
11 CH10620 1 CH10620 SEAL - O RING
12 CH10612 1 CH10612 SEAL - O RING
13 CH10627 1 CH10627 ADAPTOR

项序 零配件号码 最近的零配件号码 描述
1 CH10635 1 CH10635 惰轮传动机构
2 CH10623 1 CH10623 螺木桩
3 CH10614 1 CH10614 推力板
4 CH10621 3 CH10621 螺拴
5 CH10609 1 CH10609 螺拴
6 CH10615 1 CH10615 垫圈
7 CH10615 5 CH10615 垫圈
8 CH10290 5 CH10798 螺帽
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10635 1 CH10635 IDLER GEAR
2 CH10623 1 CH10623 STUB
3 CH10614 1 CH10614 THRUST PLATE
4 CH10621 3 CH10621 BOLT
5 CH10609 1 CH10609 BOLT
6 CH10615 1 CH10615 WASHER
7 CH10615 5 CH10615 WASHER
8 CH10290 5 CH10798 NUT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10632 1 CH10632 IDLER GEAR
2 CH10624 1 CH10624 STUB
3 CH10290 5 CH10798 NUT
4 CH10615 5 CH10615 WASHER
5 CH10609 1 CH10609 BOLT
6 CH10615 1 CH10615 WASHER
7 CH10614 1 CH10614 THRUST PLATE
8 CH10621 3 CH10621 BOLT

项序 零配件号码 最近的零配件号码 描述
1 CH11399 1 CH11399 汽缸盖组件
1 CH11399 1 CH11399 汽缸盖组件
1 CH11399 1 CH11399 汽缸盖组件
(1) 半径/CH11399 1 半径/CH11399 汽缸盖总成 -EXCH
(1) 半径/CH11399 1 半径/CH11399 汽缸盖总成 -EXCH
(1) 半径/CH11399 1 半径/CH11399 汽缸盖总成 -EXCH
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY
1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY
1 CH11399 1 CH11399 CYLINDER HEAD ASSEMBLY
(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH
(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH
(1) R/CH11399 1 R/CH11399 CYLINDER HEAD KIT - EXCH
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10726 6 CH10726 SEAL - O RING
2 1 CYLINDER HEAD
3 T400215 12 T400215 VALVE SEAT INSERT
3 CH10731 12 CH10731 VALVE SEAT INSERT
4 CH11021 12 CH11021 INTAKE VALVE
5 T400216 12 T400216 VALVE SEAT INSERT
5 CH10732 12 CH10732 VALVE SEAT INSERT
6 CH11022 12 CH11022 EXHAUST VALVE
7 CH10724 24 CH10724 VALVE GUIDE
8 CH10716 24 CH10716 WASHER
8 CH11485 24 CH10716 WASHER
9 CH11486 24 CH11486 SEAL - VALVE STEM
10 CH12798 24 CH12798 VALVE SPRING OUTER
10 CH11487 24 CH12798 VALVE SPRING OUTER
11 CH11489 24 CH11489 VALVE SPRING INNER
12 CH10715 24 CH10715 SEAT
13 CH10019 48 CH10019 VALVE COLLET
14 CH12582 6 CH12582 SLEEVE
14 CH11311 6 CH11311 SLEEVE
15 CH10727 12 CH10727 SEAL - O RING
16 CH10723 6 CH10723 SEAL - O RING
17 CH10032 17 CH10032 PLUG
18 CH10258 3 CH10258 PLUG
19 CH11228 7 CH11228 CAMSHAFT BUSH
20 CH10722 20 CH10722 PLUG
21 CH10286 2 CH10286 PLUG
22 CH11880 2 CH11880 SEAL - O RING

项序 零配件号码 最近的零配件号码 描述
CH10708 6 CH10708 套筒
1 1 密封垫 - 汽缸盖
2 CH10712 16 CH10712 螺拴
3 CH10711 16 CH10711 垫圈
4 CH10713 10 CH10713 螺拴
5 CH10711 10 CH10711 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10708 6 CH10708 SLEEVE
1 1 GASKET - CYLINDER HEAD
2 CH10712 16 CH10712 BOLT
3 CH10711 16 CH10711 WASHER
4 CH10713 10 CH10713 BOLT
5 CH10711 10 CH10711 WASHER

项序 零配件号码 最近的零配件号码 描述
1 CH11520 1 CH11520 凸轮轴
2 CH10587 1 CH10587 密封垫O形圈
3 CH10588 1 CH10588 端盖
4 CH10589 3 CH10589 公制的螺旋
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11520 1 CH11520 CAMSHAFT
2 CH10587 1 CH10587 SEAL - O RING
3 CH10588 1 CH10588 END COVER
4 CH10589 3 CH10589 SCREW METRIC

项序 零配件号码 最近的零配件号码 描述
CH10657 2 CH10657 密封垫O形圈
CH10663 1 CH10663 堵塞
1 CH10662 1 CH10662 间隔器
1 CH11398 1 CH11398 密封垫
2 1 密封垫
3 1 密封垫
4 CH10661 1 CH10661 合钉
5 CH10656 1 CH10656 合钉
6 CH10659 1 CH10659 合钉
7 CH10660 1 CH10660 密封垫O形圈
8 CH10221 5 CH10221 堵塞
9 CH10568 2 CH11963 堵塞
10 CH10664 1 CH10664 堵塞
11 CH10667 1 CH10667 密封垫O形圈
12 CH10658 2 CH10658 合钉
13 T400206 2 T400206 堵塞
13 CH10666 2 CH10666 堵塞
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10657 2 CH10657 SEAL - O RING
CH10663 1 CH10663 PLUG
1 CH10662 1 CH10662 SPACER
1 CH11398 1 CH11398 GASKET
2 1 GASKET
3 1 SEAL
4 CH10661 1 CH10661 DOWEL
5 CH10656 1 CH10656 DOWEL
6 CH10659 1 CH10659 DOWEL
7 CH10660 1 CH10660 SEAL - O RING
8 CH10221 5 CH10221 PLUG
9 CH10568 2 CH11963 PLUG
10 CH10664 1 CH10664 PLUG
11 CH10667 1 CH10667 SEAL - O RING
12 CH10658 2 CH10658 DOWEL
13 T400206 2 T400206 PLUG
13 CH10666 2 CH10666 PLUG

项序 零配件号码 最近的零配件号码 描述
1 T400909 1 T400909 缸体
6 CH12742 6 CH12742 缸套
7 CH10673 6 CH10673 带
8 CH11654 6 CH11654 密封垫
9 CH11656 6 CH11656 密封垫
10 CH11656 6 CH11656 密封垫
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T400909 1 T400909 CRANKCASE
6 CH12742 6 CH12742 LINER - PRESS FIT
7 CH10673 6 CH10673 BAND
8 CH11654 6 CH11654 SEAL - OIL
9 CH11656 6 CH11656 SEAL - OIL
10 CH11656 6 CH11656 SEAL - OIL

配件号码 Qty。 最近的零配件号码 描述
2 1 缸体
3 1 轴承盖
4 T400209 14 T400209 螺拴
5 CH10672 14 CH10672 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CYLINDER BLOCK
3 1 BEARING CAP
4 T400209 14 T400209 BOLT
5 CH10672 14 CH10672 WASHER
Plate No. Description Cut Out Cut In Repairs and Replaces
PPL055727 Connecting Rods & Big End Bearings
PPL055728 Piston Cooling Jets U19661W
PPL102036 Piston Cooling Jets U19662W
PPL055726 Pistons & Rings U19661W
PPL102035 Pistons & Rings U19662W

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11507 6 CH11507 CON ROD ASSEMBLY
6 KRP3022 1 KRP3022 BIG END BEARING KIT
(6) KRP3016/064 1 KRP3016/064 BIG END BRG KIT - U/S
(6) KRP3016/127 1 KRP3016/127 BIG END BRG KIT - U/S
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 CON ROD
3 CV60967 1 CV60967 SMALL END BUSH
4 CH11684 4 CH11684 CON ROD BOLT
5 CH11494 2 CH11494 PIN



项序 零配件号码 最近的零配件号码 描述
1 CH12344 6 CH12344 活塞冷却喷咀
1 CH12344 6 CH12344 活塞冷却喷咀
1 T400197 6 T400197 活塞冷却喷咀
2 CH10600 6 CH10600 螺拴
2 CH11468 6 CH10600 螺拴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12344 6 CH12344 PISTON COOLING JET
1 CH12344 6 CH12344 PISTON COOLING JET
1 T400197 6 T400197 PISTON COOLING JET
2 CH10600 6 CH10600 BOLT
2 CH11468 6 CH10600 BOLT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T400197 6 T400197 PISTON COOLING JET
2 CH10600 6 CH10600 BOLT


项序 零配件号码 最近的零配件号码 描述

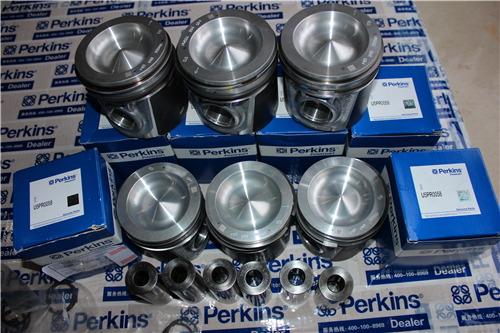

1 KRP3026 6 KRP3026 活塞总成
1 KRP3020 6 KRP3026 活塞总成 01/01/2007
6 KRP3021 6 KRP3021 活塞环总成
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP3026 6 KRP3026 PISTON KIT
1 KRP3020 6 KRP3026 PISTON KIT 01/01/2007
6 KRP3021 6 KRP3021 PISTON RING KIT

项序 零配件号码 最近的零配件号码 描述
2 1 活塞
3 CH11503 1 CH11503 活塞销
4 CH11508 1 CH11508 CIRCLIP
5 CH11508 1 CH11508 CIRCLIP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PISTON
3 CH11503 1 CH11503 GUDGEON PIN
4 CH11508 1 CH11508 CIRCLIP
5 CH11508 1 CH11508 CIRCLIP


项序 零配件号码 最近的零配件号码 描述
2 1 活塞
3 CH11503 1 CH11503 活塞销
4 CH11992 1 CH11992 CIRCLIP
4 CH11508 1 CH11508 CIRCLIP
5 CH11992 1 CH11992 CIRCLIP
5 CH11508 1 CH11508 CIRCLIP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP3032 6 KRP3032 PISTON KIT
1 KRP3032 6 KRP3032 PISTON KIT
6 KRP3033 6 KRP3033 PISTON RING KIT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PISTON
3 CH11503 1 CH11503 GUDGEON PIN
4 CH11992 1 CH11992 CIRCLIP
4 CH11508 1 CH11508 CIRCLIP
5 CH11992 1 CH11992 CIRCLIP
5 CH11508 1 CH11508 CIRCLIP

项序 零配件号码 最近的零配件号码 描述
CH11352 1 CH11352 密封垫
1 TIMINGGEAR 盖
CH11976 14 CH10946
1 CH11848 1 CH11848 正时            安排盖
1 CH11848 1 CH11848 正时            安排盖
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH11352 1 CH11352 SEAL
1 TIMINGGEAR COVER
CH11976 14 CH10946 FASTENER
1 CH11848 1 CH11848 TIMING COVER
1 CH11848 1 CH11848 TIMING COVER


项序 零配件号码 最近的零配件号码 描述
2 1 TIMINGGEAR 盖
3 CH11352 1 CH11352 密封垫
4 CH10946 14 CH10946 螺旋
4 CH11976 14 CH10946
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 TIMINGGEAR COVER
3 CH11352 1 CH11352 SEAL
4 CH10946 14 CH10946 SCREW
4 CH11976 14 CH10946 FASTENER


项序 零配件号码 最近的零配件号码 描述
1 CH11667 1 CH11667 正时齿轮箱
1 CH11615 1 CH11667 正时齿轮箱
2 CH10829 1 CH10829 正时齿轮密封垫
3 CH10953 10 CH10953 图钉
4 CH10815 8 CH10815 螺拴
5 CH10255 8 CH10255 垫圈
5 CH10541 8 CH10255 垫圈
6 CH10791 9 CH10791 螺拴
6 CH11476 9 CH10791 螺拴
7 CH10832 1 CH10832 支撑托架
8 CH11895 2 CH11895 螺拴
8 CH10537 2 CH11895 螺拴
9 CH10615 2 CH10615 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11667 1 CH11667 TIMING GEAR CASE
1 CH11615 1 CH11667 TIMING GEAR CASE
2 CH10829 1 CH10829 GASKET - TIMING CASE
3 CH10953 10 CH10953 STUD
4 CH10815 8 CH10815 BOLT
5 CH10255 8 CH10255 WASHER
5 CH10541 8 CH10255 WASHER
6 CH10791 9 CH10791 BOLT
6 CH11476 9 CH10791 BOLT
7 CH10832 1 CH10832 SUPPORT BRACKET
8 CH11895 2 CH11895 BOLT
8 CH10537 2 CH11895 BOLT
9 CH10615 2 CH10615 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10952 2 CH10952 STUD
2 CH10099 2 CH10099 WASHER
3 CH10564 2 CH10564 NUT


项序 零配件号码 最近的零配件号码 描述
1 半径/CH12895 1 半径/CH12895 引擎控制模块ECM组件
1 半径/CH11930 1 半径/CH12895 引擎控制模块ECM组件
1 半径/CH12104 1 半径/CH12895 引擎控制模块ECM组件
2 CH10578 4 CH10578 图钉
3 CH10272 8 CH10272 减振器
4 CH10108 4 CH10108 间隔器
5 CH10279 8 CH10279 垫圈
6 CH10576 1 CH10576 架
7 CH10577 1 CH10577 架
8 CH11932 2 CH11932 托架
9 CH11931 2 CH11931 不C 螺拴
10 CH11933 2 CH11933 普通垫圈
11 CH10277 2 CH10277 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 R/CH12895 1 R/CH12895 ENGINE CONTROL MODULE
1 R/CH11930 1 R/CH12895 ENGINE CONTROL MODULE
1 R/CH12104 1 R/CH12895 ENGINE CONTROL MODULE
2 CH10578 4 CH10578 STUD
3 CH10272 8 CH10272 VIBRATION MOUNT
4 CH10108 4 CH10108 SPACER
5 CH10279 8 CH10279 WASHER
6 CH10576 1 CH10576 SUPPORT
7 CH10577 1 CH10577 SUPPORT
8 CH11932 2 CH11932 BRACKET
9 CH11931 2 CH11931 UNC BOLT
10 CH11933 2 CH11933 PLAIN WASHER
11 CH10277 2 CH10277 WASHER

项序 零配件号码 最近的零配件号码 描述
1 KRP1721 1 KRP1721 提升泵
1 KRP1679 1 KRP1721 提升泵
4 CH10582 2 CH10582 螺拴
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP1721 1 KRP1721 LIFT PUMP
1 KRP1679 1 KRP1721 LIFT PUMP
4 CH10582 2 CH10582 BOLT



项序 零配件号码 最近的零配件号码 描述
1 CH12071 6 CH12071 喷油器
1 CH12341 6 CH12071 喷油器
(1) 半径/CH12071 6 半径/CH12071 喷油器
6 CH10790 6 CH10790 夹
7 CH10791 6 CH10791 螺拴
8 CH10792 6 CH10792 间隔器
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12071 6 CH12071 INJECTOR
1 CH12341 6 CH12071 INJECTOR
(1) R/CH12071 6 R/CH12071 INJECTOR - EXCHANGE
6 CH10790 6 CH10790 CLAMP
7 CH10791 6 CH10791 BOLT
8 CH10792 6 CH10792 SPACER

项序 零配件号码 最近的零配件号码 描述
2 KRP1643 1 KRP1643 密封垫总成
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 KRP1643 1 KRP1643 SEAL KIT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 KRP1643 1 KRP1643 SEAL KIT

项序 零配件号码 最近的零配件号码 描述
CH10970 1 CH10970 支撑托架
1 CH10974 1 CH10974 喷油器马具
2 CH10195 6 CH10195 帽
3 CH10977 1 CH10977 架设托架
4 CH10938 3 CH10938 螺拴
5 CH10099 3 CH10099 垫圈
6 CH10827 5 CH10827 缆拉杆
7 T400187 12 T400187 螺拴
7 CH10566 12 CH10566 螺拴
8 T400186 2 T400186 螺拴
8 CH10160 2 CH10160 螺拴
9 CH10303 2 CH10303 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10970 1 CH10970 SUPPORT BRACKET
1 CH10974 1 CH10974 INJECTOR HARNESS
2 CH10195 6 CH10195 CAP
3 CH10977 1 CH10977 MOUNTING BRACKET
4 CH10938 3 CH10938 BOLT
5 CH10099 3 CH10099 WASHER
6 CH10827 5 CH10827 CABLE TIE
7 T400187 12 T400187 BOLT
7 CH10566 12 CH10566 BOLT
8 T400186 2 T400186 BOLT
8 CH10160 2 CH10160 BOLT
9 CH10303 2 CH10303 WASHER


项序 零配件号码 最近的零配件号码 描述
1 CH12371 1 CH12371 飞轮壳
1 CH11584 1 CH12371 飞轮壳
2 CH11304 1 CH11304 后油封
3 CH12062 1 CH12062 密封垫
3 CH11583 1 CH12062 密封垫
4 CH12063 1 CH12063 密封垫
4 CH11582 1 CH12063 密封垫
5 CH10539 1 CH10539 堵塞盖
6 CH10540 1 CH10540 密封垫
7 CH10538 1 CH10538 螺拴
8 CH10255 2 CH10255 垫圈
8 CH10541 2 CH10255 垫圈
9 CH11895 1 CH11895 螺拴
9 CH10537 1 CH11895 螺拴
10 CH10262 2 CH10262 堵塞
11 CH11587 9 CH11587 螺拴
12 CH10099 9 CH10099 垫圈
13 CH10939 1 CH10939 排泄堵塞
14 CH10940 1 CH10940 密封垫
15 CH11585 8 CH11585 螺拴
16 CH10255 8 CH10255 垫圈
16 CH10541 8 CH10255 垫圈
17 CH11586 7 CH11586 螺拴
18 CH10255 7 CH10255 垫圈
18 CH10541 7 CH10255 垫圈
19 CH11588 1 CH11588 堵塞
20 CH10220 1 CH10220 堵塞
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12371 1 CH12371 FLYWHEEL HOUSING
1 CH11584 1 CH12371 FLYWHEEL HOUSING
2 CH11304 1 CH11304 SEAL - REAR END OIL
3 CH12062 1 CH12062 SEAL
3 CH11583 1 CH12062 SEAL
4 CH12063 1 CH12063 SEAL
4 CH11582 1 CH12063 SEAL
5 CH10539 1 CH10539 BLANKING COVER
6 CH10540 1 CH10540 GASKET
7 CH10538 1 CH10538 BOLT
8 CH10255 2 CH10255 WASHER
8 CH10541 2 CH10255 WASHER
9 CH11895 1 CH11895 BOLT
9 CH10537 1 CH11895 BOLT
10 CH10262 2 CH10262 PLUG
11 CH11587 9 CH11587 BOLT
12 CH10099 9 CH10099 WASHER
13 CH10939 1 CH10939 DRAIN PLUG
14 CH10940 1 CH10940 GASKET
15 CH11585 8 CH11585 BOLT
16 CH10255 8 CH10255 WASHER
16 CH10541 8 CH10255 WASHER
17 CH11586 7 CH11586 BOLT
18 CH10255 7 CH10255 WASHER
18 CH10541 7 CH10255 WASHER
19 CH11588 1 CH11588 PLUG
20 CH10220 1 CH10220 PLUG

项序 零配件号码 最近的零配件号码 描述
1 CH11441 1 CH11441 启动马达
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10237 3 CH10237 BOLT
2 0920007 1 0920007 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11441 1 CH11441 STARTER MOTOR

项序 零配件号码 最近的零配件号码 描述
1 CH11024 1 CH11024 紧张轮
1 CH11024 1 CH11024 紧张轮
17 CH10813 4 CH10813 螺拴
18 ST15903 4 ST15903 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11024 1 CH11024 TENSIONER ARM
1 CH11024 1 CH11024 TENSIONER ARM
17 CH10813 4 CH10813 BOLT
18 ST15903 4 ST15903 WASHER

项序 零配件号码 最近的零配件号码 描述
2131 A012 2 2131 A012 垫圈
2318 A210 2 2318 A210 螺帽
CH11444 2 CH11444 滚珠轴承
2 1 壳
3 CV17729 1 CV17729 轴
4 CV17731 1 CV17731 垫圈
5 CV5324 1 CV5324 螺帽
6 CH11444 1 CH11444 滚珠轴承
7 CV17765 1 CV17765 套筒
8 CV17732 1 CV17732 拉紧带轮
9 CH11444 1 CH11444 滚珠轴承
10 2722 A022 1 2722 A022 CIRCLIP
11 2721351 1 2721351 CIRCLIP
12 CV19793 1 CV19793 螺拴
13 2131 A012 1 2131 A012 垫圈
14 2131 A012 1 2131 A012 垫圈
15 2318 A210 1 2318 A210 螺帽
16 2318 A210 1 2318 A210 螺帽
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2131A012 2 2131A012 WASHER
2318A210 2 2318A210 NUT
CH11444 2 CH11444 BALL BEARING
2 1 HOUSING
3 CV17729 1 CV17729 SHAFT
4 CV17731 1 CV17731 WASHER
5 CV5324 1 CV5324 NUT
6 CH11444 1 CH11444 BALL BEARING
7 CV17765 1 CV17765 SLEEVE
8 CV17732 1 CV17732 TENSIONER PULLEY
9 CH11444 1 CH11444 BALL BEARING
10 2722A022 1 2722A022 CIRCLIP
11 2721351 1 2721351 CIRCLIP
12 CV19793 1 CV19793 BOLT
13 2131A012 1 2131A012 WASHER
14 2131A012 1 2131A012 WASHER
15 2318A210 1 2318A210 NUT
16 2318A210 1 2318A210 NUT

项序 零配件号码 最近的零配件号码 描述
2 1 紧张轮
3 CH12834 1 CH12834 衬套
4 1 轴
5 1 螺拴
6 2131 A012 1 2131 A012 垫圈
7 2131 A012 1 2131 A012 垫圈
8 2318 A210 1 2318 A210 螺帽
9 2318 A210 1 2318 A210 螺帽
10 1 垫圈
11 CH11444 1 CH11444 滚珠轴承
12 1 螺帽
13 1 套筒
14 2722 A022 1 2722 A022 CIRCLIP
15 CH11444 1 CH11444 滚珠轴承
16 2721351 1 2721351 CIRCLIP
17 CH12872 1 T400228 拉紧带轮
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12832 1 T400228 TENSIONER ARM
18 CH10813 4 CH10813 BOLT
19 ST15903 4 ST15903 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 TENSIONER
3 CH12834 1 CH12834 BUSH
4 1 SHAFT
5 1 BOLT
6 2131A012 1 2131A012 WASHER
7 2131A012 1 2131A012 WASHER
8 2318A210 1 2318A210 NUT
9 2318A210 1 2318A210 NUT
10 1 WASHER
11 CH11444 1 CH11444 BALL BEARING
12 1 NUT
13 1 SLEEVE
14 2722A022 1 2722A022 CIRCLIP
15 CH11444 1 CH11444 BALL BEARING
16 2721351 1 2721351 CIRCLIP
17 CH12872 1 T400228 TENSIONER PULLEY

项序 零配件号码 最近的零配件号码 描述
1 T400228 1 T400228 紧张轮
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T400228 1 T400228 TENSIONER ARM

项序 零配件号码 最近的零配件号码 描述
2 1 壳
3 CH12834 1 CH12834 衬套
4 1 轴
5 1 螺拴
6 CH11604 1 CH11604 垫圈
7 CH11604 1 CH11604 垫圈
8 T400231 1 T400231 螺帽
9 T400231 1 T400231 螺帽
10 1 垫圈
11 1 螺帽
12 1 套筒
13 CH11444 2 CH11444 滚珠轴承
14 CH12872 1 T400228 拉紧带轮
15 T400229 1 T400229 CIRCLIP
16 T400230 1 T400230 CIRCLIP
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 HOUSING
3 CH12834 1 CH12834 BUSH
4 1 SHAFT
5 1 BOLT
6 CH11604 1 CH11604 WASHER
7 CH11604 1 CH11604 WASHER
8 T400231 1 T400231 NUT
9 T400231 1 T400231 NUT
10 1 WASHER
11 1 NUT
12 1 SLEEVE
13 CH11444 2 CH11444 BALL BEARING
14 CH12872 1 T400228 TENSIONER PULLEY
15 T400229 1 T400229 CIRCLIP
16 T400230 1 T400230 CIRCLIP

项序 零配件号码 最近的零配件号码 描述
1 CH11691 1 CH11691 风扇
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11186 1 CH11186 BELT
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11691 1 CH11691 FAN

项序 零配件号码 最近的零配件号码 描述
1 CH12385 1 CH12385 FANDRIVE
1 CH12385 1 CH12385 FANDRIVE
18 CH12433 1 CH12433 圈
19 2315 C066 6 2315 C066 螺旋
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH12385 1 CH12385 FANDRIVE
1 CH12385 1 CH12385 FANDRIVE
18 CH12433 1 CH12433 RING
19 2315C066 6 2315C066 SCREW

项序 零配件号码 最近的零配件号码 描述
2 CH12391 1 CH12391 轴
3 1
4 CH12908 1 CH12908 放泄阀
4 CH12376 1 CH12908 放泄阀
5 CH12388 1 CH12388 风扇皮带轮   257.5
6 CH12374 1 CH12374 球
7 CH12378 1 CH12378 密封垫
8 CH12379 1 CH12379 间隔器
9 CH12382 1 CH12382 滚珠轴承
10 CH12383 1 CH12383 间隔器
11 CH12375 1 CH12375 滚珠轴承
12 CH12384 1 CH12384 密封垫O形圈
13 CH12380 1 CH12380 垫圈
14 CH12377 2 CH12377 螺拴
15 CH12390 1 CH12390 承接器
16 CH10585 6 CH10585 螺拴
17 CH10220 1 CH10220 堵塞
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 CH12391 1 CH12391 SHAFT
3 1 FAN DRIVE HOUSING
4 CH12908 1 CH12908 RELIEF VALVE
4 CH12376 1 CH12908 RELIEF VALVE
5 CH12388 1 CH12388 FAN DRIVE PULLEY 257.5
6 CH12374 1 CH12374 BALL
7 CH12378 1 CH12378 SEAL
8 CH12379 1 CH12379 SPACER
9 CH12382 1 CH12382 BALL BEARING
10 CH12383 1 CH12383 SPACER
11 CH12375 1 CH12375 BALL BEARING
12 CH12384 1 CH12384 SEAL - O RING
13 CH12380 1 CH12380 WASHER
14 CH12377 2 CH12377 BOLT
15 CH12390 1 CH12390 ADAPTOR
16 CH10585 6 CH10585 BOLT
17 CH10220 1 CH10220 PLUG


项序 零配件号码 最近的零配件号码 描述
CH10132 2 CH10132 密封垫O形圈
CH10541 3 CH10255 垫圈
CH10815 3 CH10815 螺拴
1 CH11569 1 CH11569 油底壳
2 CH12739 1 CH12739 密封垫 -油底壳
2 CH11572 1 CH11572 密封垫 -油底壳
2 CH11904 1 CH12739 密封垫 -油底壳
3 CH12739 1 CH12739 密封垫 -油底壳
3 CH11904 1 CH12739 密封垫 -油底壳
4 CH11570 1 CH11570 板
5 CH10259 3 CH10259 堵塞
6 CH11571 1 CH11571 排泄堵塞
7 T400201 1 T400201 密封垫O形圈
7 CH11573 1 CH11573 密封垫O形圈
8 CH10748 40 CH10748 螺拴
9 CH10285 1 CH10285 堵塞
9 CH10282 1 CH10282 堵塞
10 T409314 1 T409314 密封垫O形圈
10 CH10665 1 CH10665 密封垫O形圈
11 CH10567 2 CH10567 螺拴
12 CH10567 3 CH10567 螺拴
12 CH11572 1 CH11572 密封垫 -油底壳
13 CH10786 1 CH10786 油管
14 CH11906 1 CH11906 密封垫O形圈
15 CH10550 2 CH10550 螺拴
16 CH10855 1 CH10855 支撑托架
17 CH10785 2 CH10785 锁紧螺母
18 CH10615 2 CH10615 垫圈
19 CH11645 1 CH11645 螺拴
20 CH11903 1 CH11903 管 - 油的吸入
21 CH11905 1 CH11905 密封垫O形圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH10132 2 CH10132 SEAL - O RING
CH10541 3 CH10255 WASHER
CH10815 3 CH10815 BOLT
1 CH11569 1 CH11569 SUMP
2 CH12739 1 CH12739 GASKET - SUMP
2 CH11572 1 CH11572 GASKET - SUMP
2 CH11904 1 CH12739 GASKET - SUMP
3 CH12739 1 CH12739 GASKET - SUMP
3 CH11904 1 CH12739 GASKET - SUMP
4 CH11570 1 CH11570 PLATE
5 CH10259 3 CH10259 PLUG
6 CH11571 1 CH11571 DRAIN PLUG
7 T400201 1 T400201 SEAL - O RING
7 CH11573 1 CH11573 SEAL - O RING
8 CH10748 40 CH10748 BOLT
9 CH10285 1 CH10285 PLUG
9 CH10282 1 CH10282 PLUG
10 T409314 1 T409314 SEAL - O RING
10 CH10665 1 CH10665 SEAL - O RING
11 CH10567 2 CH10567 BOLT
12 CH10567 3 CH10567 BOLT
12 CH11572 1 CH11572 GASKET - SUMP
13 CH10786 1 CH10786 OIL PIPE
14 CH11906 1 CH11906 SEAL - O RING
15 CH10550 2 CH10550 BOLT
16 CH10855 1 CH10855 SUPPORT BRACKET
17 CH10785 2 CH10785 LOCKNUT
18 CH10615 2 CH10615 WASHER
19 CH11645 1 CH11645 BOLT
20 CH11903 1 CH11903 PIPE - OIL SUCTION
21 CH11905 1 CH11905 SEAL - O RING

项序 零配件号码 最近的零配件号码 描述
1 CH10860 1 CH10860 油泵
(1) 半径/CH10860 1 半径/CH10860 油泵
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH10860 1 CH10860 OIL PUMP
(1) R/CH10860 1 R/CH10860 OIL PUMP - EXCHANGE


项序 零配件号码 最近的零配件号码 描述
2 1 泵体
3 CH10746 2 CH10746 衬套
4 CH10747 2 CH10747 合钉
5 CH10861 1 CH10861 端盖
6 CH10862 1 CH10862 轴
7 CH10863 1 CH10863 驱动轴
8 CH10748 4 CH10748 螺拴
9 CH10736 1 CH10736 承件
10 CH10735 2 CH10735 螺拴
11 CH10541 2 CH10255 垫圈
12 CH10737 1 CH10737 弹簧
13 CH10738 1 CH10738 柱塞
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 PUMP BODY
3 CH10746 2 CH10746 BUSH
4 CH10747 2 CH10747 DOWEL
5 CH10861 1 CH10861 END COVER
6 CH10862 1 CH10862 SHAFT
7 CH10863 1 CH10863 DRIVE SHAFT
8 CH10748 4 CH10748 BOLT
9 CH10736 1 CH10736 RETAINER
10 CH10735 2 CH10735 BOLT
11 CH10541 2 CH10255 WASHER
12 CH10737 1 CH10737 SPRING
13 CH10738 1 CH10738 PLUNGER

项序 零配件号码 最近的零配件号码 描述
CH11139 1 CH12010 密封垫O形圈 U24141V
CH12010 1 CH12010 密封垫 U24142V
1 CH10929 1 CH10929 滤油器
1 CH10929 1 CH10929 滤油器
4 KRP1719 1 KRP1719 滤油器组件 U24142V
4 KRP1570 1 KRP1719 过滤器壳 U24141V
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
CH11139 1 CH12010 SEAL - O RING U24141V
CH12010 1 CH12010 SEAL U24142V
1 CH10929 1 CH10929 OIL FILTER
1 CH10929 1 CH10929 OIL FILTER
4 KRP1719 1 KRP1719 OIL FILTER ASSEMBLY U24142V
4 KRP1570 1 KRP1719 FILTER HOUSING U24141V

项序 零配件号码 最近的零配件号码 描述
2 1 滤油器
3 CH12010 1 CH12010 密封垫


项序 零配件号码 最近的零配件号码 描述
2 1 滤油器座
3 CH10818 1 CH10818 滤油器座
4 CH10316 2 CH10316 密封垫O形圈
5 CH10567 4 CH10567 螺拴
6 CH10541 4 CH10255 垫圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 CH11579 1 CH11579 OIL FILTER HEAD
7 CH10133 1 CH10133 SEAL - O RING
8 CH10888 1 CH10888 ADAPTOR
9 CH10262 1 CH10262 PLUG
10 CH10513 2 CH10513 RELIEF VALVE
11 CH10819 2 CH10819 SPRING
12 CH10091 2 CH10091 SEAL - O RING
13 CH10291 2 CH10291 PLUG
14 CH10133 1 CH10133 SEAL - O RING
15 CH10284 1 CH10284 PLUG
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 T400222 2 T400222 SEAL - O RING
1 CH10816 2 CH10816 SEAL - O RING
2 CH10567 2 CH10567 BOLT
3 CH10541 2 CH10255 WASHER
4 CH10814 2 CH10814 BOLT
5 CH10541 2 CH10255 WASHER
6 CH10224 2 CH10224 SEAL - O RING
7 CH10815 4 CH10815 BOLT
8 CH10541 4 CH10255 WASHER


项序 零配件号码 最近的零配件号码 描述
2 CH11620 2 CH11620 恒温节温器
3 CH10766 1 CH10766 密封垫O形圈
4 CH10770 1 CH10770 密封垫 - 恒温节温器壳
5 CH10056 2 CH10056 密封垫 - 恒温节温器壳
6 CH10755 2 CH10755 密封垫O形圈
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
2 1 OIL FILTER HEAD
3 CH10818 1 CH10818 OIL FILTER HEAD
4 CH10316 2 CH10316 SEAL - O RING
5 CH10567 4 CH10567 BOLT
6 CH10541 4 CH10255 WASHER
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP1645 1 KRP1645 THERMOSTAT KIT
7 CH11224 1 CH11224 HOUSING
8 CH10260 2 CH10260 PLUG
9 CH10765 1 CH10765 THERMOSTAT HOUSING
10 CH10751 1 CH10751 BOLT
11 CH10753 1 CH10753 BOLT
12 CH10260 1 CH10260 PLUG
13 CH10751 1 CH10751 BOLT
14 CH10752 1 CH10752 PIPE
15 CH11618 1 CH11618 COVER
16 CH11895 5 CH11895 BOLT
17 CH11619 1 CH11619 SEAL - O RING
18 CH11621 3 CH11621 SEAL - O RING
19 CH12474 3 CH12474 PLUG
19 CH11622 3 CH11622 PLUG
20 CH11621 1 CH11621 SEAL - O RING

项序 零配件号码 最近的零配件号码 描述
1 KRP1678 1 KRP1715 水泵总成
1 KRP1644 1 KRP1715 水泵总成
Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment
1 KRP1678 1 KRP1715 WATER PUMP KIT
1 KRP1644 1 KRP1715 WATER PUMP KIT

项序 零配件号码 最近的零配件号码 描述
2 1 水泵
13 CH11568 1 CH11568 密封垫O形圈


项序 零配件号码 最近的零配件号码 描述
3 1 水泵壳
4 CH11634 1 CH11634 过滤器
5 CH11545 1 CH11545 堵塞
6 CH10559 1 CH10559 保有板
7 CH11544 1 CH11544 水泵传动机构
8 CH10557 1 CH10557 螺拴
9 CH11943 1 CH11943 动叶轮
10 CH11941 1 CH12791 密封垫 - 水泵
11 CH11942 1 CH11942 轴
12 CH10558 1 CH10558 辊轴承

项序 零配件号码 最近的零配件号码 描述
2 1 水泵
6 CH11568 1 CH11568 密封垫O形圈
13 CH10545 1 CH10545 密封垫O形圈

项序 零配件号码 最近的零配件号码 描述
3 1 水泵壳
4 CH12680 1 CH12680 过滤器
5 CH11545 1 CH11545 堵塞
6 CH10559 1 CH10559 保有板
7 CH11544 1 CH11544 水泵传动机构
8 CH10557 4 CH10557 螺拴
9 CH11943 1 CH11943 动叶轮
10 CH11942 1 CH11942 轴
11 CH10558 1 CH10558 辊轴承
12 CH12791 1 CH12791 密封垫



项序 零配件号码 最近的零配件号码 描述
1 CH11087 1 CH11087 充电发电机
(1) 半径/CH11087 1 半径/CH11087 交换充电发电机



项序 零配件号码 最近的零配件号码 描述
2 1 充电发电机
3 CH12877 1 CH12877 充电发电机皮带轮


项序 零配件号码 最近的零配件号码 描述
1 CH11625 1 CH11625 管 - 涡轮增压器的油补给
2 CH11563 1 CH11563 管夹
3 CH10776 1 CH10776 间隔器
4 CH10538 1 CH10538 螺拴
5 CH10255 1 CH10255 垫圈
5 CH10541 1 CH10255 垫圈




项序 零配件号码 最近的零配件号码 描述
1 CH11627 1 CH11627 管 - 涡轮增压器的油排泄
2 CH11561 1 CH11561 密封垫
3 CH11565 2 CH11565 螺拴
4 CH10585 2 CH10585 螺拴
5 CH10277 2 CH10277 垫圈
6 CH11624 1 CH11624 肘管
7 CH11560 1 CH11560 密封垫
8 CH11562 1 CH11562 密封垫O形圈
9 1 涡轮增压器

项序 零配件号码 最近的零配件号码 描述
1 CH11607 1 CH11607 涡轮增压器
(1) 半径/CH11607 1 半径/CH11607 涡轮增压器
2 CH11761 1 CH11761 密封垫 -涡轮增压器
2 CH11746 1 CH11761 密封垫
3 CH10733 4 CH10733 螺拴
4 CH10734 4 CH10734 锁紧螺母



项序 零配件号码 最近的零配件号码 描述
1 CH11556 1 CH11556 排气岐管
2 CH11557 1 CH11557 排气岐管
3 CH11555 12 CH11555 间隔器
4 CH10775 12 CH10775 图钉
5 CH10734 12 CH10734 锁紧螺母
6 CH12340 6 CH12340 套筒
6 CH11882 6 CH12340 密封垫 - 排气岐管


项序 零配件号码 最近的零配件号码 描述
1 CH12434 1 CH12434 燃油过滤器座
1 CH11075 1 CH12434 燃油过滤器座
2 CH10609 1 CH10609 螺拴
3 CH10255 1 CH10255 垫圈
3 CH10541 1 CH10255 垫圈
4 CH10286 1 CH10286 堵塞
5 CH11880 1 CH11880 密封垫O形圈
5 CH10046 1 CH10046 密封垫O形圈
6 CH10287 1 CH10287 堵塞
7 T406205 1 T406205 密封垫O形圈
7 CH10048 1 CH10048 密封垫O形圈
8 CH10439 1 CH10439 手油泵
9 CH10008 1 CH10008 密封垫
10 CH10557 1 CH10557 螺拴
11 CH10277 1 CH10277 垫圈
11 CH10131 1 CH10131 密封垫O形圈
12 CH10848 1 CH10848 螺拴
13 CH10086 1 CH10086 垫圈
14 CH10836 1 CH10836 阀
15 T400188 1 T400188 密封垫O形圈
16 CH12017 1 CH12017 非回路阀
16 CH10457 1                  阀
16 CH12017 1 CH12017 非回路阀
20 CH10131 1 CH10131 密封垫O形圈
21 CH11410 1 CH11410 堵塞
22 CH11880 1 CH11880 密封垫O形圈
23 CH11411 1 CH11411 灰尘盾


项序 零配件号码 最近的零配件号码 描述
1 CH12893 1 CH12893 温度感应传感器
1 CV18338/5 1 CH12893 温度感应传感器
2 OE51375 1 OE51375 承接器


项序 零配件号码 最近的零配件号码 描述
1 CH12894 1 CH12894 油压寄件人
1 CV18339/2 1 CH12894 油压寄件人
2 CH11138 1 CH11138 承接器


项序 零配件号码 最近的零配件号码 描述
1 CH11985 1 CH11985 线束
2 CH11981 1 CH11981 缆拉杆
3 CH10071 2 T410794 夹
4 CH10054 2 CH10054 缆拉杆
5 CH10794 2 CH11897 螺拴
6 CH10541 2 CH10255 垫圈
7 CH10799 2 CH10799 夹
8 CH10054 2 CH10054 缆拉杆
9 CH10797 2 CH10797 螺拴
10 CH10100 2 CH10100 垫圈
11 CH10072 1 CH10072 夹
12 CH10054 1 CH10054 缆拉杆
13 CH10537 1 CH11895 螺拴
14 CH10541 1 CH10255 垫圈
15 CH10072 2 CH10072 夹
16 CH10054 2 CH10054 缆拉杆
17 CH10794 2 CH11897 螺拴
18 CH10541 2 CH10255 垫圈
19 CH10072 1 CH10072 夹
20 CH10054 1 CH10054 缆拉杆
21 CH10796 1 CH10796 螺拴
22 CH10277 1 CH10277 垫圈


项序 零配件号码 最近的零配件号码 描述
CH10867 1 CH10867 间隔器
CH10870 1 CH10870 密封垫O形圈
1 CH12004 1 KRP1705 速度感应传感器
4 CH10796 1 CH10796 螺拴
5 CH10277 1 CH10277 垫圈
6 CH10873 1 CH10873 连接器
7 CH10132 1 CH10132 密封垫O形圈
8 CH10133 1 CH10133 密封垫O形圈
9 CH12001 1 CH12001 肘管



项序 零配件号码 最近的零配件号码 描述
1 CH12003 1 KRP1700 速度感应传感器
4 CH10796 1 CH10796 螺拴
5 CH10277 1 CH10277 垫圈
6 CH10867 1 CH10867 间隔器
7 CH10870 1 CH10870 密封垫O形圈



项序 零配件号码 最近的零配件号码 描述
1 CH10907 1 CH10907 承接器
2 CH10875 1 CH10875 密封垫O形圈
3 CH10228 1 CH10228 密封垫O形圈
4 T400184 2 T400184 螺拴
4 CH10567 2 CH10567 螺拴
5 CH10541 2 CH10255 垫圈
6 CH10285 1 CH10285 堵塞
6 CH10282 1 CH10282 堵塞
7 T409314 1 T409314 密封垫O形圈
7 CH10132 1 CH10132 密封垫O形圈
