奥林匹亚发电机配件CH11116

项序 零配件号码 最近的零配件号码  描述

1 CH11116 1 CH11116

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

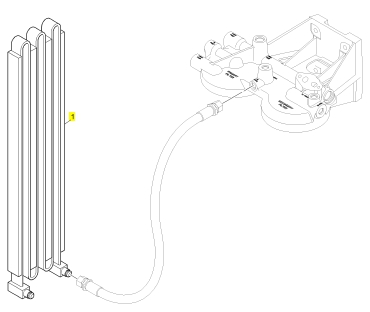

1 CH11116 1 CH11116 CORE

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

1 CH11118 1 CH11118 HOSE KIT

2 CH10854 1 CH10854 CONNECTOR

3 CH10751 4 CH10751 BOLT

4 CH11119 8 CH11119 WASHER

5 CH11117 8 CH11117 ISOLATOR

项序 零配件号码 最近的零配件号码  描述

CH10567 1 CH10567 螺拴

1 CH10594 1 CH10594 承接器

2 CH10581 1 CH10581 扣环

3 CH10004 2 CH10004 滚珠轴承

4 CH10592 1 CH10592 燃油喷射泵传动机构

5 CH10583 3 CH10583 螺拴

5 CH10541 4 CH10255 垫圈

6 CH10593 3 CH10593 垫圈

7 CH10550 3 CH10550 螺拴

8 CH10255 4 CH10255 垫圈

9 CH10590 1 CH10590 密封垫O形圈

10 CH10798 1 CH10798 螺帽

11 CH12764 1 CH12764 图钉

Item Parts No. Qty. Latest Part No. Description Cut Out Cut In Comment

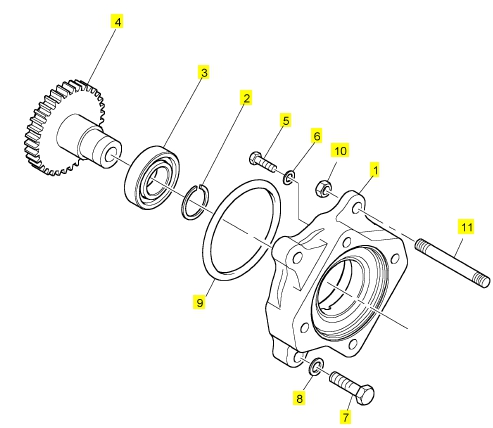

CH10567 1 CH10567 BOLT

1 CH10594 1 CH10594 ADAPTOR

2 CH10581 1 CH10581 SNAP RING

3 CH10004 2 CH10004 BALL BEARING

4 CH10592 1 CH10592 FUEL INJECTION PUMP GEAR

5 CH10583 3 CH10583 BOLT

5 CH10541 4 CH10255 WASHER

6 CH10593 3 CH10593 WASHER

7 CH10550 3 CH10550 BOLT

8 CH10255 4 CH10255 WASHER

9 CH10590 1 CH10590 SEAL - O RING

10 CH10798 1 CH10798 NUT

11 CH12764 1 CH12764 STUD
