珀金斯柴油发动机U5LC0015修理包

珀金斯柴油发动机U5LC0015修理包 T4.20

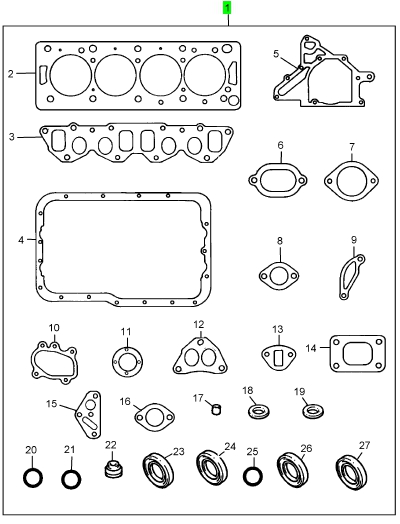

项目 零配件号码 最近的部分号码

1 U5LC0015 1 U5LC0015 修理包 -完成 ENG

2 0921176 8 0921176 WASHER

3 2411101 8 2411101 WASHER

4 2415638 1 2415638 SEAL - O RING

5 33811114 10 33811114 OLIVE

6 3381D004 1 3381D004 GASKET

7 3683L003 2 3683L003 GASKET

8 3681V003I 2 3681V003I GASKET - IND MANIFOLD

9 3687M014 2 3687M014 GASKET - THERMOSTAT HSG

10 3687W005 2 3687W005 GASKET - OIL FILTER HEAD

11 K415JF02 8 K415JF02 SEAL - VALVE STEM

12 K415EF01 1 24881012 O RING

13 K415EF02 1 K415EF02 SEAL - O RING

14 K418AF02 1 K418AF02 SEAL - FRONT END OIL

15 K418FF01 1 K418FF01 SEAL - REAR END OIL

16 K418FF02 1 K418FF02 SEAL - CAMSHAFT

17 K418FF05 1 K418FF05 SEAL - CAMSHAFT

18 L311FF02 4 L311FF02 INJECTOR WASHER

19 L681EF06 1 L681EF06 GASKET - CYLINDER HEAD

20 L681VF02 1 L681VF02 GASKET - IND MANIFOLD

21 L681VF03 1 L681VF03 GASKET - TURBOCHARGER

22 L683HF01 1 L683HF01 GASKET - OIL FILLER

23 L683NF02 1 L683NF02 GASKET - WATER OUTLET

24 L686JF02 1 L686JF02 GASKET - LIFT PUMP

25 L687MF05 1 L687MF05 GASKET

26 L687MF12 1 L687MF12 GASKET - THERMOSTAT HSG

27 L687YF02 1 L687YF02 GASKET - LIFT PUMP

28 L688CF01 1 L688CF01 GASKET

29 L688CF02 1 L688CF02 GASKET - EXHAUST OUTLET

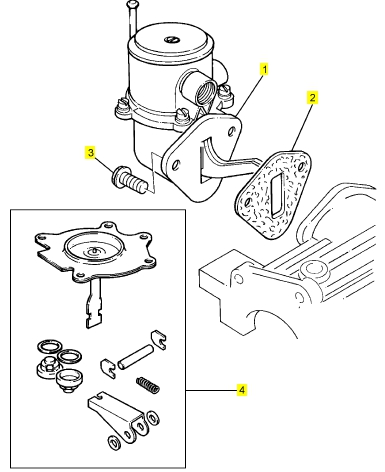

项目 零配件号码 最近的部分号码

1 K641AF04 1 ULPK0012 提升泵

2 L686JF02 1 L686JF02 密合垫 - 提升泵

3 2314 H004 2 2314 H004 螺旋

4 26410009 1 ULPR0003 修补装备 - 提升泵
