John Deere约翰迪尔强鹿柴油发动机仪表盘零件图册

仪表盘

John Deere约翰迪尔强鹿6068  6.8L柴油发动机仪表盘零件图册

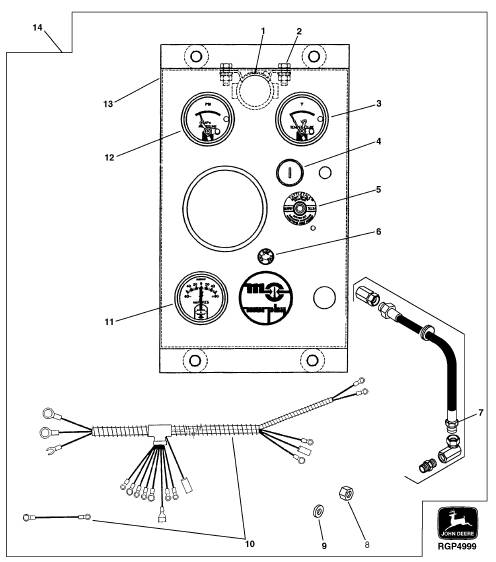

KEY PART NO. PART NAME QTY SERIAL NO. 0 0 0 REMARKS

1 AT141011 RELAY 1 X X

2 .................. CAP SCREW 2 X X (A) (1/4-20 X 3/4)

.................. LOCK WASHER 2 X X (A) (1/4")

.................. NUT 2 X X (B) (1/4-20 X 7/16)

.................. WASHER 2 X X (B) (1/4")

.................. LOCK WASHER 2 X X (B) (1/4")

3 RE43306 TEMPERATURE GAUGE 1 X X

4 AR58126 KEY SWITCH 1 X X

5 RE63642 SWITCH 1 X X

6 RE63643 FUSE HOLDER 1 X X

AH84168 FUSE 1 X X 14 AMP

7 AR64315 HYDRAULIC HOSE 1 X X 7/16" X 521 MM (20-1/2") X 1/8"

R35352 FITTING 1 X X

15H197 ELBOW FITTING 10 X X 3.175 MM (1/8")

15H197 ELBOW FITTING 1 X X 3.175 MM (1/8")

8 R44342 NUT 10 X X

9 A4827R WASHER 10 X X

10 RE63641 WIRING HARNESS 1 X X

11 RE43304 AMMETER 1 X X

12 RE43305 METER 1 X X

13 .................. INSTRUMENT PANEL 1 X X (SUB RG23817)

14 RG23817 KIT 1 X X (CONSISTS OF (4) RE63154)

(A) EXTERNAL

EXTERNE

EXTERN

ESTERNO

EXTERNO

UTVAENDIG

(B) INTERNAL

INTERNE

INTERN

INTERNO

INTERNO

INVAENDIG
