约翰迪尔强鹿燃油泵零件图册

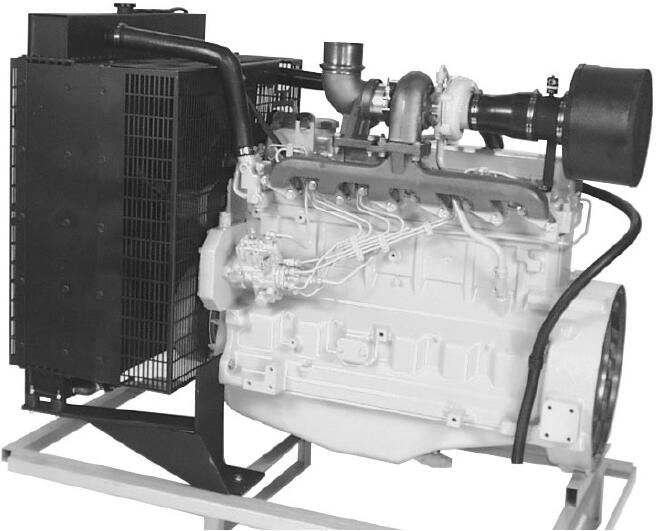

John Deere约翰迪尔强鹿6068 3.9-6.8L燃油泵零件图册

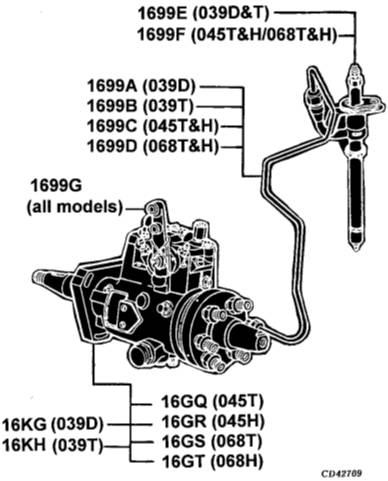

16GQ - 1C7

16GR - 1C8

16GS - 1C9

16KG - 1C11

16KH - 1C12

1699A - 1C13

1699B - 1C14

1699C - 1C15

1699D - 1C16

1699E - 1C17

1699F - 1C18

1699G - 1C19

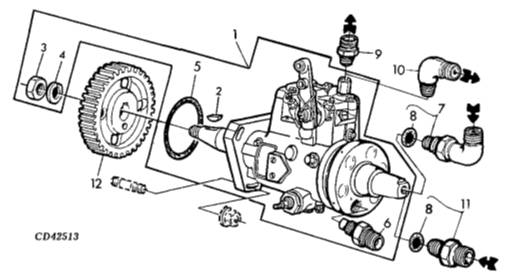

1 RE503048 FUEL INJECTION PUMP 1 X (STANADYNE DB4, 83KW-1500MIN-1, 12V)

2 R56131 SHAFT KEY 1 X

3 R91360 NUT 1 X

4 R132874 WASHER 1 X

5 R502076 PACKING 1 X ID 53MM

6 .................. FITTING 4 X NSEP

7 .................. ELBOW FITTING NA X

8 51M7040 O-RING 1 X 9.300 X 2.200 MM

9 .................. FITTING NA X

10 R67364 ELBOW FITTING 1 X 1/8"-27NPT X 1/2"-24UNS

11 RE60029 FITTING 1 X M12 X 1.5 X 9/16"-24UNEF

12 R132267 HELICAL GEAR 1 X Z = 60

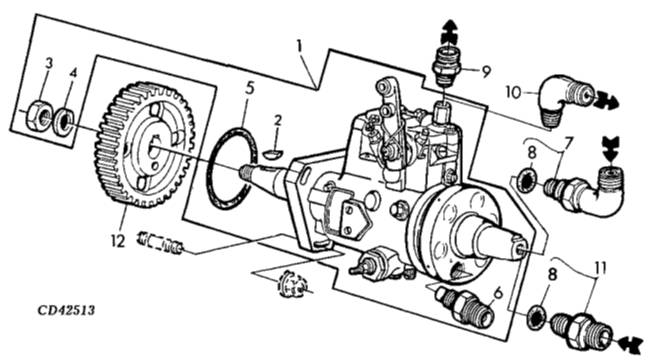

1 RE503050 FUEL INJECTION PUMP 1 X (STANADYNE DB4, 100KW-1500MIN-1, 12V)

2 R56131 SHAFT KEY 1 X

3 R91360 NUT 1 X

4 R132874 WASHER 1 X

5 R502076 PACKING 1 X ID 53MM

6 .................. FITTING 4 X NSEP

7 .................. ELBOW FITTING NA X

8 51M7040 O-RING 1 X 9.300 X 2.200 MM

9 .................. FITTING NA X

10 R67364 ELBOW FITTING 1 X 1/8"-27NPT X 1/2"-24UNS

11 RE60029 FITTING 1 X M12 X 1.5 X 9/16"-24UNEF

12 R132267 HELICAL GEAR 1 X Z = 60

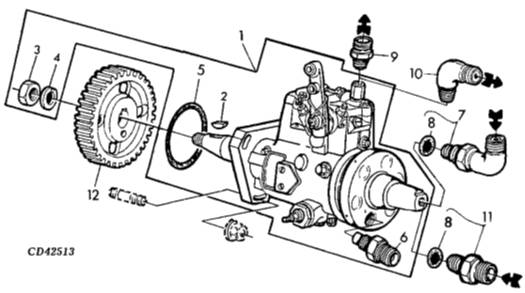

1 RE503049 FUEL INJECTION PUMP 1 X (STANADYNE DB4, 120KW-1500MIN-1, 12V)

2 R56131 SHAFT KEY 1 X

3 R91360 NUT 1 X

4 R132874 WASHER 1 X

5 R502076 PACKING 1 X ID 53MM

6 .................. FITTING 6 X NSEP

7 .................. ELBOW FITTING NA X

8 51M7040 O-RING 1 X 9.300 X 2.200 MM

9 .................. FITTING NA X

10 R67364 ELBOW FITTING 1 X 1/8"-27NPT X 1/2"-24UNS

11 RE60029 FITTING 1 X M12 X 1.5 X 9/16"-24UNEF

12 R132267 HELICAL GEAR 1 X Z= 60
