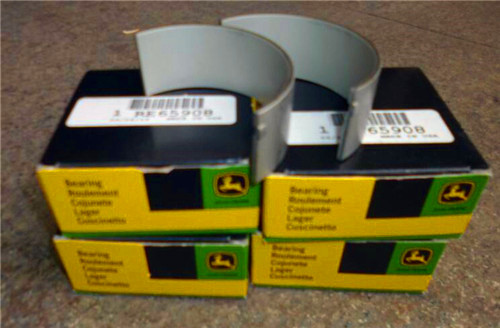

john deere约翰迪尔强鹿柴油机连杆瓦


详细描述:

约翰迪尔公用拖拉机应用的发动机零件

设备型号 备注
790 84mm Bore Non Turbo
4710 88mm Bore Non Turbo
3032E 88mm Bore Non Turbo
4300 84mm Bore Non Turbo
3036E 84mm Bore Turbo & Non Turbo
3320 88mm Bore Non Turbo
4310 84mm Bore Non Turbo
3038E 84mm Bore Turbo & Non Turbo
2720 88mm Bore Non Turbo
990 84mm Bore Non Turbo
3120 84mm Bore Turbo & Non Turbo
4405 88mm Bore Non Turbo
4500 84mm Bore Non Turbo
3203 84mm Bore Turbo & Non Turbo
4005 88mm Bore Non Turbo
4510 84mm Bore Non Turbo
3520 84mm Bore Turbo & Non Turbo
4600 84mm Bore Non Turbo
3720 84mm Bore Turbo & Non Turbo
4610 84mm Bore Non Turbo
4105 84mm Bore Turbo & Non Turbo
4400 88mm Bore Non Turbo
3045R 84mm Bore Turbo & Non Turbo
4410 88mm Bore Non Turbo
3605 84mm Bore Turbo & Non Turbo
4700 88mm Bore Non Turbo
990 84mm Bore Non Turbo

麦克福斯约翰迪尔发动机零配件

约翰迪尔 4045 4.5T/H 活塞(米) RE507758 排放 2 & 3


PowerTech
系列
发动机和设备型号
4045T/H
排放 2 & 3

每缸4个气门

代码 4825

孔径:
4.19 in 106.5 mm

销径 Ø:
1.6250 in (+/- .0002) = 41mm

JOHN DEERE

4045HF475

连杆(米):
R500335 (Fractured) (9)
连杆(米):
RE507758

洋马发动机

农业
6430
6534
7130
工程机械
120
1010D
1010E
444H
444HCL
450G
455G
550G
550H
555G
650G
810D
810E
TC444H
310J
310SJ
410J
710J
SKID STEER
280
280 Series II
1)
发动机大修包
TRE526973
(点击查看套件内容)
2)
发动机内部修理套件
TIK526973
(点击查看套件内容)
活塞缸套组件
TRE516228
组成:
a)
TRE507758
b)
TRE516268
c)
TR502755
d)
TR116397
e)
TAR65507
f)
TR54114
主轴瓦
TRE65165
Std.
TRE65911
0.010
TRE65165B
0.020
(2)
需要4片
止推轴承
TRE65168
Std.
TRE65912
0.010
TRE65168B
0.020
(2)
需要1片
连杆瓦
TRE65908
Std.
TRE65909
0.010
TRE65908B
0.020
(2)
需要4片
1)
前油封
TRE505515
(1)
2)
后油封
TRE44574
3)
齿环
TR114282
(142T)
(5)
TR28811
(129T)
(5)
4)
曲轴
TRE504638
(4)
TRE506195
(3)
1)
密封圈维修包
TRE536962
2)
衬垫套
TRE536967
3)
气缸垫
TR116515
4)
机油底壳垫圈
TR97342
(5)
TR521493
(5)
5)
气门室盖衬垫
TR524498
TR524499
1)
连杆衬套
TR114082
x4
2)
连杆螺栓
TR501124
x8
3)
平衡轴衬套
TR115299
x6
4)
凸轮轴衬套
TR119874
x1
5)
右平衡轴
TRE500448
6)
左平衡轴
TRE500449
7)
凸轮随动件
TR123565
x8
1)
气缸盖螺钉
TR502511
x18
2)
紧张轮
TRE518097
3)
连杆
TRE500608
4)
机油冷却器
TRE59296
(5 板)
TRE56690
(7 板)
TRE59298
(9 板)
1)
水泵
TRE500734
(5)
(高流量)
TRE546918
(5)
2)
水泵盖
TRE508566
3)
水泵衬垫
TR123417
4)
凸轮轴衬套
TRE504914
(5)
TRE521756
(5)

阀门部分

进气门
TRE531221
Std.
(5)
TRE518080
Std
(5)
排气门
TRE518081
Std.
1)
插入阀:进气
TRE518082
Std.
2)
插入阀:排气
TRE518083
Std.
1)
气门密封
TRE526519
x16
(5)
TRE519115
x16
(5)
2)
气门锁夹
TR502371
x32
(5)
1)
弹簧阀
TR518872
x16
(5)
TRE516486
x16
(5)
1)
节温器
TRE522076
180° F
(5)
TRE538289
180o F
(5)
TRE64354
180° F
(5)
2)
节温器盖
TR501130
(5)
3)
水温传感器
TRE51774
(5)
4)
水温传感器
TRE52722
(5)
5)
油压传感器
TRE167207
(5)
6)
曲轴传感器
TRE519144
(5)
7)
燃油压力传感器
TRE522794
(5)
8)
温度感应器
TRE522823
(5)
输油泵
TRE66153
(5) (6)
TRE68345
(5) (7)
TRE502513
(5) (8)
TRE517230
(5)
火花塞
1)
TRE502079
(11 V)
2)
TRE504580
x4
(10 V)
3)
空气加热器
TRE502668
(12 V)
1)
油管喷射器
TRE543935
x4
2)
喷油器O形圈
TRE528349
TRE530609

(1)1件组合式密封和穿套; 替换TRE59810,RE538097。

(2)在曲轴加工过程中必须保持正确的轴承轴颈半径,以确保正确操作。

(3)锥形鼻子。

(4)直鼻。

(5)检查应用程序是否正确使用。

(6)线路连接都是线程化的。

(7)线路连接是一个软管倒钩& 一个线程。

(8)线路连接是两个软管倒钩。

(9)机器分体式和断裂式分体式连杆均可用于同一台发动机,但每个连杆必须使用正确的连杆螺栓。

美国强鹿JOHN DEERE柴油发电机配件及发动机配件:
CD3029DF128、CD4039DF008、CD4045TF258、PE4045、CD6068TF158、CD6068TF258、CD6068HF158、CD6068HF258、CD6081HF001A、4045TFM75、CD6081HF001B、CD6125HF070A、CD6125HF070B、RG6125、6135H458。4045DFM70, 4045TFM75, 6068TFM75, 6068TFM76、4039DFM RE522528、RE519774、RE532628、RE518176、RE507980、RE518503、RE522515、RE504836、RE509031/
强鹿JOHN DEERE柴油机配件、发动机配件、发电机组:
RE509032、RE59754、RE507284、RE59754、RE519626、RE508202、RE58935、T19044、RE62418、RE62419、RE521248、RE520842、C085004、RE509672、RE196945、RE191915、RE522688、RE522687、RE519774、RE532628、RE507980、RE531703、RE24619(cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (30-nov-95) 80-5 pn=355 2f25 acces***y parts lubricant/engine coolant conditioner lubrifiant/conditionneur de liquide de refroidissement schmierstoff/kuehlfluessigkeitszusatz lubrificante/additivo liq-raffred-motore libricante/acondicionador liq-refrig- smoerjmedel/kylvaetsketillsats rgp3041 -un-01jan94 a engine l key part no- part name qty serial no- l remarks 1 ar44402 oil 1 x 0-9l (1 qt-) 2 re23182 engine coolant conditioner 1 x 0-473l (16 oz-) 3 re35992 engine coolant conditioner 1 x 3-8l (1 gal-) 4 ar54749 lubricant 1 x 0-9l (1 qt-) 80-6 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (30-nov-95) pn=356 2g1 acces***y parts liquid gasket joint liquide fluessige dichtung guarnizione liquida junta liquida oeversaettn-ej tillgaenglig cd35696 -un-01jan94 a engine l key part no- part name qty serial no- l remarks 1 dd15664 kit ar x (sub for dd14996) genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 80-7 pn=357 2g2 acces***y parts engine gasket kit jeu de joints du moteur motor-dichtungssatz corredo guarnizioni per motori juego de juntas para el motor packningssats foer motor cd20516a -un-28nov95 this parts listing is continued 80-8 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=358 2g3 acces***y parts a engine l key part no- part name qty serial no- l remarks 1 re64293 gasket kit 1 x (a) (cd3029df) re64290 gasket kit 1 x (a) (cd4039df/tf,cd4045tf) re501054 gasket kit 1 x (a) (sub for re38852) (cd6059tf,cd6068tf) 2 re64294 gasket kit 1 x (b) (cd3029df) re64291 gasket kit 1 x (b) (cd4039df/tf,cd4045tf) re501055 gasket kit 1 x (b) (also order r97185) (cd6059tf,cd6068tf) 3 ar65507 o-ring kit 3 x packg (3) (cd3029df) ar65507 o-ring kit 4 x packg (3) (cd4039df/tf,cd4045tf) ar65507 o-ring kit 6 x packg (3) (cd6059tf,cd6068tf) (a) tune-up (b) overhaul genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 80-9 pn=359 2g5 instrument panel switch (water) code 6602,9701 interupteur (eau) code 6602,9701 schalter (wasser) kode 6602,9701 interruttore (acqua) codice 6602,9701 interruptor (agua) codigo 6602,9701 kontakt (vatten) koden 6602,9701 cd37309 -un-20jul95 a engine l key part no- part name qty serial no- l remarks 1 at135260 switch 1 x (12volt - 24volt) 2 14h605 nut 1 x no- 8-32unc 3 12h315 lock washer 1 x 0-164" - re33062 shipping bundle ar x (9701) incl-instructions,anleitung,istruziony ,instrucciones,anvisningar 90-2 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (30-nov-95) pn=360 2g6 instrument panel switch (oil) code 7603, 9119 interupteur (huile) code 7603, 9119 schalter (oel) kode 7603, 9119 interruttore (olio) codice 7603, 9119 interruptor (aceite) codigo 7603, 9119 kontakt (olja) koden 7603, 9119 cd37328 -un-20jul95 a engine l key part no- part name qty serial no- l remarks 1 at85174 switch 1 x 1/8"-27nptf (12volt - 24volt) 2 15h197 elbow fitting 1 x 1/8"-27nptf x 1/8"-27nptf - re33063 shipping bundle ar x (9119) incl-instructions,anleitung, istruzioni,instrucciones,anvisningar genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (30-nov-95) 90-3 pn=361 2g7 instrument panel switch (water), code 6603 - instrument panel (shipping bundle), code 9180 interupteur (eau), code 6603 - tableau de bord (colis d’adaptation), code 9180 schalter (wasser), koden 6603 - armaturenbrett (nachruestteilesatz), koden 9180 interruttore (acqua), codice 6603 - cruscotto (collo p-install-succesiva), codice 9180 interruptor (agua), codigo 6603 - tablero de instrumentos (volumen de envio), codigo 9180 kontakt (vatten), kode 6603 - instrumentbraeda (tillbehoerssats), kode 9180 cd37319 -un-20jul95 a engine l key part no- part name qty serial no- l remarks 1 az35440 sender 1 x 1/2"-14nptf (6volt - 24volt) 90-4 genset power units 龙岩约翰迪尔强鹿发动机ECU-M电脑控制主板找哪家,广州约翰迪尔发动机凸轮轴瓦批发价,河源约翰迪尔加大连杆瓦RE529318A找哪家,漳州强鹿柴油机止推片哪里买,开封约翰迪尔加热器TRE502079批发价,安庆美国约翰迪尔JOHNDEERE挖掘机柴油机配件批发商,郑州约翰迪尔C240联合收割机发动机配件信息,无堂划分域强鹿柴油发动机启动马达价格行情,辽源强鹿柴油机马达厂家价格,吉安约翰迪尔6090柴油机加大连杆瓦的价格,阿拉善JohnDeere节温器R136063哪里买,西安约翰迪尔柴油发电机组缸体信息,唐山JohnDeere排气门R93311代理,十堰约翰迪尔联合收割机发动机大小瓦多少钱,萍乡强鹿R123461风扇皮带厂家批发,晋中约翰迪尔联合收割机发动机继电器厂家批发,达州JohnDeere连杆RE500608哪家好,(cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=362 2g8 instrument panel switch (oil) - instrument panel (shipping bundle) interupteur (huile) - tableau de bord (colis d’adaptation) schalter (oel) - armaturenbrett (nachruestteilesatz) interruttore (olio) - cruscotto (collo p-install-succesiva) interruptor (aceite) - tablero de instrumentos (volumen de envio) kontakt (olja) - instrumentbraeda (tillbehoerssats) cd39608 -un-20jul95 a engine l key part no- part name qty serial no- l remarks 1 re63583 touch switch 1 x 1/8"-27nptf (6volt - 24volt) genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 90-5 pn=363 2g9 instrument panel bracket/wiring harness- instrument panel (shipping bundle) support/faisceau de cables - tableau de bord (colis d’adaptation) konsole/kabelbaum - armaturenbrett (nachruestteilesatz) staffa/cablaggio - cruscotto (collo p-install-successiva) soporte/grupo de cables - tablero instrumentos (volumen de envio) konsol/kabelhaerva - instrumentbraeda (tillbehoerssars) cd40031a -un-26nov97 this parts listing is continued 90-6 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=364 2g10 instrument panel a l key part no- part name qty year l remarks 1 re64397 rubber mount 1 x packg (4) 2 24m7274 washer 1 x 6 x 12 x 1 mm 3 12m7133 lock washer 1 x 6-100 mm 4 14m7165 lock nut 1 x m6 5 r128657 bracket 1 x 6 re64772 wiring harness ar x lgth 2000mm (78-74") extension,rallonge,verlaengerung, estensione,extension,foerlaengning 7 r44302 tie band 8 x genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 90-7 pn=365 2g11 instrument panel gauge - instrument panel (shipping bundle) instrument de bord - tableau de bord (colis d’adaptation) anzeigeinstrument - armaturenbrett (nachruestteilesatz) strumento indicatore - cruscotto (collo p-install-successiva) manometro - tablero instrumentos (volumen de envio) maetare - instrumentbraeda (tillbehoerssars) cd40032a -un-26nov97 this parts listing is continued 90-8 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=366 2g12 instrument panel a l key part no- part name qty year l remarks 1 re500303 console 1 x (sub for re64398) (12 volt) re500306 console 1 x (24 volt) 2 re64405 circuit board 1 x (12 volt) re500311 circuit board 1 x (24 volt) 3 re500305 toggle switch 1 x (sub for re64403) 4 r129929 key 1 x (use with re64403) nla, order re500305 r500195 key 1 x (use with re500305) 5 re64407 fuse 1 x 16 amp 6 re64402 temperature gauge 1 x 7 re64401 pressure gauge 1 x 8 re64404 hour meter 1 x 9 re64400 tachometer 1 x 10 re500304 wiring harness 1 x (sub for re64399) 11 r44302 tie band 8 x genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 90-9 pn=367 2g13 instrument panel coolant heater, code 9197 (shipping bundle) prechauffeur de liquide de refroidissement, code 9197 (colis d’adaptation) kuehlwasser-vormaermer, kode 9197 (nachruestteilesatz) preriscald-liq-reffreddam), codice 9197 (collo p-install-successiva) precalentador del agua, codigo 9197 (volumen de envio) kylvaetskevaermare, koden 9197 (tillbehoerssats) cd40041 -un-13nov97 3 0 2 9 key part no- part name qty serial no- d remarks 1 re64805 wiring harness 1 x 2 re64803 heating element 1 x (240 volt - 1000 watt) 3 - clamp 1 x 4 re69449 switch 1 x (12 volt - 24 volt) 5 re69448 shipping bundle 1 x assy, incl-instructions,mit anleitung, con istruzioni,con instrucciones, med,inklusive anvisningar (9197) 90-10 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=368 2g14 instrument panel coolant heater, code 9182 (shipping bundle) prechauffeur de liquide de refroidissement, code 9182 (colis d’adaptation) kuehlwasser-vormaermer, kode 9182 (nachruestteilesatz) preriscald-liq-reffreddam), codice 9182 (collo p-install-successiva) precalentador del agua, codigo 9182 (volumen de envio) kylvaetskevaermare, koden 9182 (tillbehoerssats) cd40035 -un-20dec95 4 4 4 0 0 0 3 3 4 9 9 5 key part no- part name qty serial no- d t t remarks 1 re64805 wiring harness 1 x x x 2 re64803 heating element 1 x x x (240 volt - 1000 watt) 3 - clamp 1 x x x 4 at135260 switch 1 x x x (12 volt - 24 volt) 5 14h605 nut 1 x x x 0-164" 6 12h315 lock washer 1 x x x 0-164" 7 re66120 shipping bundle 1 x x x assy, incl-instructions,mit anleitung, con istruzioni,con instrucciones, med,inklusive anvisningar (9182) genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 90-11 pn=369 2g15 instrument panel coolant heater, code 9183 (shipping bundle) prechauffeur de liquide de refroidissement, code 9183 (colis d’adaptation) kuehlwasser-vormaermer, kode 9183 (nachruestteilesatz) preriscald-liq-reffreddam), codice 9183 (collo p-install-successiva) precalentador del agua, codigo 9183 (volumen de envio) kylvaetskevaermare, koden 9183 (tillbehoerssats) cd40035 -un-20dec95 6 6 0 0 5 6 9 8 key part no- part name qty serial no- t t remarks 1 re64805 wiring harness 1 x x 2 re64804 heating element 1 x x (240 volt - 1500 watt) 3 - clamp 1 x x 4 at135260 switch 1 x x (12 volt - 24 volt) 5 14h605 nut 1 x x 0-164" 6 12h315 lock washer 1 x x 0-164" 7 re66121 shipping bundle 1 x x assy, incl-instructions,mit anleitung, con istruzioni,con instrucciones, med,inklusive anvisningar (9183) 90-12 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=370 1l15 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index part no- grid key page part no- grid key page part no- grid key page ah104837 2e9 1 60 - 3 ar67942 1g3 2 22 - 13 at21110 1h24 8 23 - 14 ah104837 2e11 5 60 - 5 ar67942 1g15 9 22 - 25 at21110 1i1 8 23 - 14b ah104837 2e13 5 60 - 7 ar67942 1h24 1 23 - 14 at21124 1e11 11 21 - 13 al25273 2d10 2 40 - 9 ar67942 1h25 2 23 - 14a at21124 1e12 7 21 - 14 al30423 2d19 10 50 - 3 ar67942 1i1 2 23 - 14b at21124 1i6 7 23 - 17 al55046 2d10 1 40 - 9 ar67942 1i2 1 23 - 15 at21132 1e8 9 21 - 12 al55047 2d10 3 40 - 9 ar67942 1i3 2 23 - 15a at21132 1f25 9 22 - 12 al63095 2d10 4 40 - 9 ar67942 1i4 2 23 - 15b at21132 1h24 9 23 - 14 al65077 2d19 13 50 - 3 ar67942 1i17 9 23 - 28 at21138 1e12 7 21 - 14 al70855 2d10 2 40 - 9 ar70575 1j11 1 23 - 48 at21138 1i6 7 23 - 17 al70855 2d10 5 40 - 9 ar77851 2d25 5 50 - 9 at21139 1e8 9 21 - 12 al81436 2d19 9 50 - 3 ar81786 1g1 9 22 - 12a at21139 1f25 9 22 - 12 ar100124 1h12 2 23 - 2 ar81786 1i3 9 23 - 15a at21139 1h24 9 23 - 14 ar21837 1d12 6 20 - 33 ar81788 1e11 9 21 - 13 at21140 1c16 8 20 - 14 ar21837 1d13 6 20 - 34 ar81788 1g3 9 22 - 13 at21140 1c17 8 20 - 14a ar21837 1d14 8 20 - 35 ar81788 1i4 9 23 - 15b at21140 1e8 8 21 - 12 ar21837 1f6 1 21 - 33 ar89839 2c13 4 35 - 12 at21140 1f25 8 22 - 12 ar21837 1f9 6 21 - 36 ar89852 2c15 5 35 - 14 at21140 1g1 8 22 - 12a ar21837 1g25 1 22 - 35 ar89852 2c18 6 35 - 17 at21140 1h24 8 23 - 14 ar21837 1h2 1 22 - 37 ar91660 1d7 3 20 - 28 at21140 1i3 8 23 - 15a ar21837 1h6 6 22 - 41 ar91660 1e22 3 21 - 24 at21191 1d8 4 20 - 29 ar21837 1i25 1 23 - 37 ar91660 1g17 3 22 - 27 at21191 1d8 6 20 - 29 ar21837 1j4 1 23 - 41 ar91660 1i19 3 23 - 30 at21191 1e24 4 21 - 26 ar21839 2e24 6 70 - 9 ar95932 1c16 10 20 - 14 at21191 1e24 6 21 - 26 ar21839 2f4 6 70 - 13 ar95932 1c18 2 20 - 14b at21191 1g19 4 22 - 29 ar21839 2f8 6 70 - 17 ar95932 1e10 2 21 - 12b at21191 1g19 6 22 - 29 ar21842 2e11 1 60 - 5 ar95932 1g2 2 22 - 12b at21191 1i21 4 23 - 32 ar21842 2e13 1 60 - 7 ar95932 1i2 10 23 - 15 at21191 1i21 6 23 - 32 ar40418 2f12 6 70 - 21 ar95932 1i5 2 23 - 16 at21535 1c13 1 20 - 11 ar44402 2f25 1 80 - 6 ar97653 1g3 11 22 - 13 at21535 1c24 2 20 - 20 ar54749 2f25 4 80 - 6 ar97653 1g4 7 22 - 14 at21535 1g10 2 22 - 20 ar55283 2d20 4 50 - 4 ar97653 1i4 11 23 - 15b at21535 1i11 2 23 - 22 ar55283 2d23 4 50 - 7 ar97653 1i6 7 23 - 17 at22919 1d8 4 20 - 29 ar63037 1i14 1 23 - 25 ar97654 1i6 7 23 - 17 at22919 1d8 7 20 - 29 ar63218 2f21 1 80 - 2 ar97655 1g4 7 22 - 14 at22919 1e24 4 21 - 26 ar63218 2f22 - 80 - 3 ar97655 1i6 7 23 - 17 at22919 1e24 7 21 - 26 ar63219 2f21 1 80 - 2 ar97708 1f4 1 21 - 31 at22919 1g19 4 22 - 29 ar63219 2f22 - 80 - 3 ar97708 1g21 1 22 - 31 at22919 1g19 7 22 - 29 ar63222 2f21 1 80 - 2 at129531 2d25 8 50 - 9 at22919 1i21 4 23 - 32 ar63222 2f22 - 80 - 3 at129533 2d25 10 50 - 9 at22919 1i21 7 23 - 32 ar63228 2f22 - 80 - 3 at130930 2d20 3 50 - 4 at24252 1d6 3 20 - 27 ar63229 2f22 - 80 - 3 at130930 2d23 3 50 - 7 at24252 1e23 3 21 - 25 ar63230 2f22 - 80 - 3 at130930 2d25 14 50 - 9 at24252 1g18 3 22 - 28 ar63979 2f21 1 80 - 2 at135260 2g5 1 90 - 2 at24252 1i20 3 23 - 31 ar63979 2f22 - 80 - 3 at135260 2g14 4 90 - 11 at24834 2e22 3 70 - 7 ar63980 2f22 - 80 - 3 at135260 2g15 4 90 - 12 at25983 2e14 1 60 - 8 ar65294 1j14 5 25 - 3 at13740 1c13 36 20 - 11 at31819 2e21 4 70 - 6 ar65294 1j15 6 25 - 4 at13740 1c15 33 20 - 13 at32333 1k8 8 30 - 2 ar65294 2e24 4 70 - 9 at13740 1e7 38 21 - 11 at32333 1k9 8 30 - 3 ar65294 2f4 4 70 - 13 at13740 1f24 39 22 - 11 at32333 1k10 8 30 - 4 ar65294 2f8 4 70 - 17 at13740 1h21 38 23 - 11 at32333 2c2 7 35 - 2 ar65294 2f12 4 70 - 21 at13740 1h23 33 23 - 13 at32333 2c3 7 35 - 3 ar65507 1c20 5 20 - 16 at18904 1c5 3 20 - 3 at32333 2c4 7 35 - 4 ar65507 1e13 5 21 - 15 at18904 1d24 3 21 - 3 at32333 2c5 7 35 - 5 ar65507 1g5 5 22 - 15 at18904 1f16 3 22 - 3 at32333 2c6 7 35 - 6 ar65507 1i7 5 23 - 18 at18904 1h13 3 23 - 3 at32333 2c7 7 35 - 7 ar65507 2g3 3 80 - 9 at18904 1j4 5 23 - 41 at32333 2c8 7 35 - 8 ar66402 1i14 8 23 - 25 at18904 1j24 15 25 - 13 at32333 2c9 7 35 - 9 ar67942 1c16 1 20 - 14 at18904 1k2 12 25 - 15 at85174 1c13 33 20 - 11 ar67942 1c17 2 20 - 14a at18904 1k4 15 25 - 17 at85174 1f24 24 22 - 11 ar67942 1d5 9 20 - 26 at18904 1k6 10 25 - 19 at85174 2g6 1 90 - 3 ar67942 1e8 1 21 - 12 at18904 2f4 8 70 - 13 az35440 2g7 1 90 - 4 ar67942 1e9 2 21 - 12a at18904 2f8 8 70 - 17 a147r 2e2 5 50 - 11 ar67942 1e11 2 21 - 13 at18904 2f12 8 70 - 21 a22698 1d8 9 20 - 29 ar67942 1e20 9 21 - 22 at21110 1e8 8 21 - 12 a22698 1e24 9 21 - 26 ar67942 1f25 1 22 - 12 at21110 1e11 8 21 - 13 a22698 1g19 9 22 - 29 ar67942 1g1 2 22 - 12a at21110 1f25 8 22 - 12 a22698 1i21 9 23 - 32 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-1 pn=371 1l16 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page a22698 1k9 16 30 - 3 m1746t 1g16 1 22 - 26 re22678 1i7 1 23 - 18 a22698 1k10 16 30 - 4 m1746t 1i18 1 23 - 29 re23181 1j24 6 25 - 13 a4827r 1d4 12 20 - 25 m41029 1c19 4 20 - 15 re23181 1k4 6 25 - 17 a4827r 1d5 15 20 - 26 m41029 1e12 4 21 - 14 re23182 2f25 2 80 - 6 a4827r 1e19 12 21 - 21 m43551 1j24 5 25 - 13 re24458 1c20 1 20 - 16 a4827r 1e20 15 21 - 22 m43551 1k4 5 25 - 17 re24458 1e13 1 21 - 15 a4827r 1g14 12 22 - 24 m63431 2c11 2 35 - 11 re24752 1e7 1 21 - 11 a4827r 1g15 15 22 - 25 n10010 2f4 3 70 - 13 re25335 1j24 13 25 - 13 a4827r 1i16 12 23 - 27 n10010 2f8 3 70 - 17 re25933 2c12 4 35 - 11b a4827r 1i17 15 23 - 28 n10010 2f12 3 70 - 21 re25933 2c14 5 35 - 13 cd15466 1c20 6 20 - 16 n10215 1k8 5 30 - 2 re26342 1k2 5 25 - 15 cd15466 1e13 6 21 - 15 n10215 1k9 5 30 - 3 re26433 1j15 3 25 - 4 cd15466 1g5 6 22 - 15 n10215 1k10 5 30 - 4 re26871 1h12 1 23 - 2 cd15466 1i7 6 23 - 18 n10215 2d16 9 40 - 15 re27348 1c17 9 20 - 14a cd16284 1c7 3 20 - 5 n10215 2e3 5 50 - 12 re27348 1c19 7 20 - 15 cd16284 1e1 3 21 - 5 n10215 2e4 6 50 - 13 re27348 1c21 6 20 - 17 cd16284 1f18 3 22 - 5 n10215 2e5 5 50 - 14 re27348 1e9 11 21 - 12a cd16284 1h15 3 23 - 5 pe71011292 2e9 7 60 - 3 re27348 1e12 7 21 - 14 cd16301 1k22 1 30 - 16 p40098 1k2 1 25 - 15 re27348 1h25 11 23 - 14a ce15515 1j20 4 25 - 9 re12820 1j8 3 23 - 45 re27348 1i6 7 23 - 17 dd12119 1c6 2 20 - 4 re13571 1c16 10 20 - 14 re27349 1c19 7 20 - 15 dd12120 1d25 2 21 - 4 re13571 1c17 11 20 - 14a re27349 1c21 6 20 - 17 dd12120 1f17 2 22 - 4 re13571 1c18 2 20 - 14b re27349 1e12 7 21 - 14 dd12121 1h14 2 23 - 4 re13571 1e9 10 21 - 12a re27349 1i1 11 23 - 14b dd14134 2f24 1 80 - 5 re13571 1e10 2 21 - 12b re27349 1i6 7 23 - 17 dd14136 2f24 1 80 - 5 re13571 1e11 10 21 - 13 re27350 1c18 1 20 - 14b dd14345 2f24 1 80 - 5 re13571 1g1 10 22 - 12a re27350 1e9 9 21 - 12a dd14346 2f24 1 80 - 5 re13571 1g2 2 22 - 12b re27350 1e10 1 21 - 12b dd14996 1k22 2 30 - 16 re13571 1g3 10 22 - 13 re27350 1g2 1 22 - 12b dd14996 2g1 1 80 - 7 re13571 1h25 10 23 - 14a re27350 1i5 1 23 - 16 dd15068 1i1 1 23 - 14b re13571 1i1 10 23 - 14b re27351 1c16 9 20 - 14 dd15070 1e11 1 21 - 13 re13571 1i2 10 23 - 15 re27351 1c18 1 20 - 14b dd15339 1g3 1 22 - 13 re13571 1i3 10 23 - 15a re27351 1e10 1 21 - 12b dd15341 1i4 1 23 - 15b re13571 1i4 10 23 - 15b re27351 1g2 1 22 - 12b dd15664 1k22 2 30 - 16 re13571 1i5 2 23 - 16 re27351 1i1 9 23 - 14b dd15664 2g1 1 80 - 7 re15674 1c20 2 20 - 16 re27351 1i2 9 23 - 15 h1058r 1e21 2 21 - 23 re15674 1e13 2 21 - 15 re27351 1i5 1 23 - 16 h1058r 1g16 2 22 - 26 re15674 1g5 2 22 - 15 re27352 1e9 8 21 - 12a h1058r 1i18 2 23 - 29 re15674 1i7 2 23 - 18 re27352 1g1 8 22 - 12a h113196 2d4 2 40 - 3 re16495 1c19 1 20 - 15 re27352 1h25 8 23 - 14a h113196 2d6 2 40 - 5 re19282 1c20 3 20 - 16 re27352 1i2 8 23 - 15 h35244 1c17 15 20 - 14a re19797 2c12 6 35 - 11b re27353 1c16 8 20 - 14 h35244 1d16 5 20 - 37 re19797 2c13 6 35 - 12 re27353 1g3 8 22 - 13 h35244 1e9 14 21 - 12a re19797 2c14 8 35 - 13 re27353 1i1 8 23 - 14b h35244 1f10 5 21 - 37 re19797 2c15 8 35 - 14 re27353 1i2 8 23 - 15 h35244 1g1 14 22 - 12a re19797 2c16 2 35 - 15 re27353 1i4 8 23 - 15b h35244 1g3 14 22 - 13 re19797 2c18 2 35 - 17 re27358 1c19 7 20 - 15 h35244 1h7 5 22 - 42 re19797 2c20 2 35 - 19 re27358 1e12 7 21 - 14 h35244 1h25 14 23 - 14a re19799 2c14 7 35 - 13 re27358 1i6 7 23 - 17 h35244 1i1 14 23 - 14b re19799 2c15 9 35 - 14 re27359 1c18 1 20 - 14b h35244 1i3 14 23 - 15a re19799 2c16 4 35 - 15 re27359 1e10 1 21 - 12b h35244 1i4 14 23 - 15b re19800 2c18 5 35 - 17 re27359 1g2 1 22 - 12b h35244 1j8 5 23 - 45 re19800 2c20 5 35 - 19 re27359 1i2 9 23 - 15 h36031 1c5 4 20 - 3 re20036 2d25 9 50 - 9 re27359 1i5 1 23 - 16 l39334 2d2 3 40 - 1 re20898 2c12 1 35 - 11b re27360 1i2 8 23 - 15 l39334 2d4 9 40 - 3 re20898 2c13 1 35 - 12 re27364 1c19 7 20 - 15 l39334 2d7 3 40 - 6 re20899 2c12 2 35 - 11b re27364 1e12 7 21 - 14 l39334 2d9 3 40 - 8 re20899 2c13 2 35 - 12 re27364 1i6 7 23 - 17 l39334 2d16 9 40 - 15 re20900 2c12 3 35 - 11b re27366 1c18 1 20 - 14b l59904 1d4 10 20 - 25 re20900 2c13 3 35 - 12 re27366 1e10 1 21 - 12b l59904 1e19 10 21 - 21 re20901 2c12 5 35 - 11b re27366 1g2 1 22 - 12b l59904 1g14 10 22 - 24 re20901 2c13 5 35 - 12 re27366 1i2 9 23 - 15 l62675 1c13 29 20 - 11 re20901 2c18 4 35 - 17 re27366 1i5 1 23 - 16 l62675 1e7 24 21 - 11 re20901 2c20 4 35 - 19 re27368 1i2 8 23 - 15 l62675 1h21 24 23 - 11 re21076 1c19 1 20 - 15 re30493 2d9 4 40 - 8 l77042 2d19 8 50 - 3 re21076 1e12 1 21 - 14 re31323 1c8 2 20 - 6 m1746t 1e21 1 21 - 23 re22678 1e13 1 21 - 15 re31323 1e2 2 21 - 6 95-2 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=372 1l17 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page re31323 1f19 2 22 - 6 re43287 2c15 4 35 - 14 re501055 2g3 2 80 - 9 re31323 1h16 2 23 - 6 re43293 2c18 1 35 - 17 re50122 1j4 7 23 - 41 re31617 1c8 4 20 - 6 re43421 2d12 7 40 - 11 re50752 1k14 1 30 - 8 re31617 1e2 4 21 - 6 re43422 2d12 15 40 - 11 re50808 2c5 1 35 - 5 re31617 1f19 4 22 - 6 re43422 2d16 10 40 - 15 re50809 2c5 1 35 - 5 re31617 1h16 4 23 - 6 re44199 1d2 1 20 - 23 re50829 2c4 1 35 - 4 re31973 1c6 8 20 - 4 re44202 1c3 2 20 - 1 re50885 2c7 1 35 - 7 re31973 1d25 8 21 - 4 re44202 1c4 3 20 - 2 re50886 2c8 1 35 - 8 re31973 1f17 8 22 - 4 re44205 1d23 1 21 - 2 re50892 2c7 1 35 - 7 re31973 1h14 8 23 - 4 re44205 1f15 1 22 - 2 re50893 2c8 1 35 - 8 re32140 1c3 1 20 - 1 re44574 1c16 7 20 - 14 re50897 2f10 18 70 - 19 re32140 1c4 2 20 - 2 re44574 1c17 12 20 - 14a re50897 2f14 7 70 - 23 re32140 1d23 4 21 - 2 re44574 1e8 7 21 - 12 re50898 2f2 16 70 - 11 re32140 1f15 4 22 - 2 re44574 1e9 12 21 - 12a re50898 2f6 18 70 - 15 re32203 1j24 22 25 - 13 re44574 1e11 12 21 - 13 re50979 1c17 1 20 - 14a re32204 1k4 22 25 - 17 re44574 1f25 7 22 - 12 re51527 1d5 1 20 - 26 re32204 1k6 3 25 - 19 re44574 1g1 12 22 - 12a re51527 1e20 1 21 - 22 re33062 2g5 - 90 - 2 re44574 1g3 12 22 - 13 re51527 1g15 1 22 - 25 re33063 2g6 - 90 - 3 re44574 1h24 7 23 - 14 re51527 1i17 1 23 - 28 re33641 1e7 1 21 - 11 re44574 1h25 12 23 - 14a re51648 1k16 1 30 - 10 re33876 2e11 4 60 - 5 re44574 1i1 12 23 - 14b re51649 1k15 1 30 - 9 re33876 2e13 4 60 - 7 re44574 1i2 7 23 - 15 re51650 1k17 1 30 - 11 re35507 2e9 4 60 - 3 re44574 1i3 12 23 - 15a re51870 1e7 1 21 - 11 re35992 2f25 3 80 - 6 re44574 1i4 12 23 - 15b re52020 1d1 1 20 - 22 re36935 2c21 1 35 - 20 re46784 1j14 3 25 - 3 re52020 1e17 1 21 - 19 re36935 2c22 1 35 - 21 re47134 2c4 1 35 - 4 re52020 1g12 1 22 - 22 re36939 2c22 1 35 - 21 re47176 2c4 1 35 - 4 re52020 1i13 1 23 - 24 re36939 2c23 1 35 - 22 re47519 2e20 3 70 - 5 re52120 2d4 4 40 - 3 re37089 2c11 6 35 - 11 re47867 1g1 11 22 - 12a re52120 2d6 10 40 - 5 re37090 2c11 6 35 - 11 re47867 1g4 7 22 - 14 re52122 2d6 4 40 - 5 re37091 2c11 1 35 - 11 re47867 1i3 11 23 - 15a re52124 2d6 7 40 - 5 re37091 2c11 6 35 - 11 re47867 1i6 7 23 - 17 re52125 2d6 8 40 - 5 re38009 1k18 1 30 - 12 re48154 2c5 1 35 - 5 re52899 2c20 6 35 - 19 re38009 1k19 1 30 - 13 re48155 2c5 1 35 - 5 re52977 1d4 9 20 - 25 re38009 1k21 1 30 - 15 re48156 2c6 1 35 - 6 re52977 1d5 10 20 - 26 re38028 1d5 19 20 - 26 re48157 2c7 1 35 - 7 re52977 1e19 9 21 - 21 re38028 1e20 19 21 - 22 re48158 2c8 1 35 - 8 re52977 1e20 10 21 - 22 re38028 1g15 19 22 - 25 re48159 2c7 1 35 - 7 re52977 1g14 9 22 - 24 re38028 1i17 19 23 - 28 re48160 2c8 1 35 - 8 re52977 1g15 10 22 - 25 re38077 1f6 7 21 - 33 re48583 1j6 1 23 - 43 re52977 1i16 9 23 - 27 re38078 1g25 5 22 - 35 re48615 1e1 2 21 - 5 re52977 1i17 10 23 - 28 re38078 1h2 5 22 - 37 re48615 1f18 2 22 - 5 re53058 1k11 1 30 - 5 re38078 1h2 6 22 - 37 re48617 1h15 2 23 - 5 re53073 1g5 1 22 - 15 re38078 1i25 8 23 - 37 re48747 1e9 1 21 - 12a re53073 1i7 1 23 - 18 re38852 2g3 1 80 - 9 re500066 2e1 2 50 - 10 re53082 1f24 32 22 - 11 re39242 2d14 6 40 - 13 re500068 2e1 1 50 - 10 re53082 1g6 4 22 - 16 re39244 2d14 9 40 - 13 re500303 2g12 1 90 - 9 re53082 1g7 1 22 - 17 re39246 2d14 10 40 - 13 re500304 2g12 10 90 - 9 re53429 1c7 2 20 - 5 re39248 2d14 14 40 - 13 re500305 2g12 3 90 - 9 re53716 1g4 1 22 - 14 re39249 2d14 3 40 - 13 re500305 2g12 4 90 - 9 re53716 1i6 1 23 - 17 re39250 2d14 11 40 - 13 re500306 2g12 1 90 - 9 re53786 2c2 1 35 - 2 re39251 2d14 1 40 - 13 re500311 2g12 2 90 - 9 re53786 2c3 1 35 - 3 re40547 1c23 2 20 - 19 re500340 1i2 4 23 - 15 re53787 2c2 1 35 - 2 re41931 2e9 5 60 - 3 re500340 1i3 1 23 - 15a re53853 2c16 1 35 - 15 re41939 2c3 1 35 - 3 re500721 2d3 1 40 - 2 re53884 1h19 1 23 - 9 re42733 1e12 1 21 - 14 re500721 2d8 1 40 - 7 re54130 1h25 1 23 - 14a re42733 1i6 1 23 - 17 re500721 2d10 1 40 - 9 re54883 1g1 1 22 - 12a re42762 1c4 5 20 - 2 re500722 2d3 3 40 - 2 re54885 1j24 17 25 - 13 re42762 1d23 3 21 - 2 re500722 2d8 3 40 - 7 re54885 1k2 14 25 - 15 re42762 1f15 3 22 - 2 re500722 2d10 3 40 - 9 re54885 1k4 17 25 - 17 re43284 2c14 1 35 - 13 re500733 2d2 4 40 - 1 re54885 1k6 12 25 - 19 re43284 2c15 1 35 - 14 re50096 2d4 3 40 - 3 re54885 2f4 10 70 - 13 re43285 2c14 2 35 - 13 re50096 2d6 3 40 - 5 re55037 1k6 6 25 - 19 re43285 2c15 2 35 - 14 re501052 1d15 1 20 - 36 re55339 1h21 1 23 - 11 re43286 2c14 3 35 - 13 re501052 1f8 1 21 - 35 re55390 1k20 1 30 - 14 re43286 2c15 3 35 - 14 re501052 1h5 1 22 - 40 re55390 1k23 1 30 - 17 re43287 2c14 4 35 - 13 re501054 2g3 1 80 - 9 re55762 1k13 1 30 - 7 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-3 pn=373 1l18 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page re55868 1k2 11 25 - 15 re60304 1k21 7 30 - 15 re63497 2e1 1 50 - 10 re55900 1c11 1 20 - 9 re60350 1e9 9 21 - 12a re63583 2g8 1 90 - 5 re55901 1e5 1 21 - 9 re60350 1g1 9 22 - 12a re63674 1c13 23 20 - 11 re55901 1f22 1 22 - 9 re60350 1h25 9 23 - 14a re63674 1c15 32 20 - 13 re55901 1f24 5 22 - 11 re60384 2d2 4 40 - 1 re63674 1f24 40 22 - 11 re56056 1k2 3 25 - 15 re60854 1k12 1 30 - 6 re63674 1h23 32 23 - 13 re56351 1f24 32 22 - 11 re61065 1i22 1 23 - 34 re63736 1d18 2 20 - 39 re56351 1g6 4 22 - 16 re61094 2e11 3 60 - 5 re63913 1e12 3 21 - 14 re56351 1g7 1 22 - 17 re61094 2e13 3 60 - 7 re63913 1g4 3 22 - 14 re56417 1f11 2 21 - 38 re61095 2e11 17 60 - 5 re63913 1i6 3 23 - 17 re56417 1h8 2 22 - 43 re61095 2e13 17 60 - 7 re63914 1c19 3 20 - 15 re56417 1j9 2 23 - 46 re61115 2e18 1 70 - 3 re63914 1e12 3 21 - 14 re56425 1c13 1 20 - 11 re61277 2f8 2 70 - 17 re64211 1c25 7 20 - 21 re56547 1k8 11 30 - 2 re61290 2f12 2 70 - 21 re64211 1e16 7 21 - 18 re56666 1k20 7 30 - 14 re61467 1c20 3 20 - 16 re64211 1g11 7 22 - 21 re56667 1k9 11 30 - 3 re61767 1f6 7 21 - 33 re64211 1i12 7 23 - 23 re57117 1k23 7 30 - 17 re61769 1g25 5 22 - 35 re64241 2c2 1 35 - 2 re57118 1k10 11 30 - 4 re61769 1h2 5 22 - 37 re64241 2c3 1 35 - 3 re57262 1h23 1 23 - 13 re61769 1h2 6 22 - 37 re64242 2c3 1 35 - 3 re57279 1c16 9 20 - 14 re61769 1i25 8 23 - 37 re64243 2c4 1 35 - 4 re57279 1c17 10 20 - 14a re61771 1c7 2 20 - 5 re64244 2c4 1 35 - 4 re57279 1c18 1 20 - 14b re62101 1k4 13 25 - 17 re64290 2g3 1 80 - 9 re57279 1e10 1 21 - 12b re62158 1k8 10 30 - 2 re64291 2g3 2 80 - 9 re57279 1g2 1 22 - 12b re62158 1k9 10 30 - 3 re64292 2c22 15 35 - 21 re57279 1i2 9 23 - 15 re62158 1k10 10 30 - 4 re64292 2c23 15 35 - 22 re57279 1i5 1 23 - 16 re62158 1k13 1 30 - 7 re64293 1c7 2 20 - 5 re57438 1i3 1 23 - 15a re62158 1k13 3 30 - 7 re64293 2g3 1 80 - 9 re57482 1e15 4 21 - 17 re62218 2e24 1 70 - 9 re64294 2g3 2 80 - 9 re57482 1g9 4 22 - 19 re62219 2e24 3 70 - 9 re64308 2f2 9 70 - 11 re57647 2c6 1 35 - 6 re62220 2e11 7 60 - 5 re64308 2f6 6 70 - 15 re57714 2c16 5 35 - 15 re62220 2e13 7 60 - 7 re64308 2f10 6 70 - 19 re57928 1k18 7 30 - 12 re62221 2f4 1 70 - 13 re64308 2f10 18 70 - 19 re57960 2d18 8 50 - 2 re62221 2f8 1 70 - 17 re64308 2f14 17 70 - 23 re57960 2d21 8 50 - 5 re62221 2f12 1 70 - 21 re64354 1d15 1 20 - 36 re57960 2d22 8 50 - 6 re62240 2c11 6 35 - 11 re64354 1f8 1 21 - 35 re58410 2c20 1 35 - 19 re62241 2c11 6 35 - 11 re64354 1h5 1 22 - 40 re58432 1k6 9 25 - 19 re62627 2d18 6 50 - 2 re64397 2g10 1 90 - 7 re58515 2e1 2 50 - 10 re62627 2d21 6 50 - 5 re64398 2g12 1 90 - 9 re58568 1f11 2 21 - 38 re62627 2d22 6 50 - 6 re64399 2g12 10 90 - 9 re58568 1j9 2 23 - 46 re62658 1d10 14 20 - 31 re64400 2g12 9 90 - 9 re58858 1k2 5 25 - 15 re62658 1f2 14 21 - 29 re64401 2g12 7 90 - 9 re58910 1d10 1 20 - 31 re62658 1f4 15 21 - 31 re64402 2g12 6 90 - 9 re58910 1f2 1 21 - 29 re62658 1g21 15 22 - 31 re64403 2g12 3 90 - 9 re58911 2f2 1 70 - 11 re62660 1i23 1 23 - 35 re64403 2g12 4 90 - 9 re58914 2e9 10 60 - 3 re62665 2d3 1 40 - 2 re64404 2g12 8 90 - 9 re58914 2e11 10 60 - 5 re62665 2d8 1 40 - 7 re64405 2g12 2 90 - 9 re58914 2e13 10 60 - 7 re62665 2d10 1 40 - 9 re64407 2g12 5 90 - 9 re58915 1k19 7 30 - 13 re62666 2d3 2 40 - 2 re64449 1k11 1 30 - 5 re58918 2e9 17 60 - 3 re62666 2d8 2 40 - 7 re64772 2g10 6 90 - 7 re58919 2e9 3 60 - 3 re62666 2d10 2 40 - 9 re64803 2g13 2 90 - 10 re58921 2e19 3 70 - 4 re62667 2d3 3 40 - 2 re64803 2g14 2 90 - 11 re58941 2e24 2 70 - 9 re62668 2d3 4 40 - 2 re64804 2g15 2 90 - 12 re58964 1d18 2 20 - 39 re62669 2d3 5 40 - 2 re64805 2g13 1 90 - 10 re59010 2d7 4 40 - 6 re62670 2d8 3 40 - 7 re64805 2g14 1 90 - 11 re59010 2d9 4 40 - 8 re62670 2d10 3 40 - 9 re64805 2g15 1 90 - 12 re59019 1c22 8 20 - 18 re62672 2d8 4 40 - 7 re65173 2d16 10 40 - 15 re59019 1e15 9 21 - 17 re62672 2d10 4 40 - 9 re65201 2c21 15 35 - 20 re59019 1g9 9 22 - 19 re62673 2d3 5 40 - 2 re65201 2c22 15 35 - 21 re59019 1i9 8 23 - 20 re62673 2d8 5 40 - 7 re65215 1c7 2 20 - 5 re59019 2f4 12 70 - 13 re62673 2d10 5 40 - 9 re65224 1e9 1 21 - 12a re59019 2f8 12 70 - 17 re63049 2f4 14 70 - 13 re65225 1f24 1 22 - 11 re59019 2f12 12 70 - 21 re63049 2f8 14 70 - 17 re65283 2f15 1 70 - 24 re59241 1c22 4 20 - 18 re63049 2f12 14 70 - 21 re65342 2c9 1 35 - 9 re60005 1c8 2 20 - 6 re63079 2f14 11 70 - 23 re65358 1c13 1 20 - 11 re60005 1e2 2 21 - 6 re63181 1k13 1 30 - 7 re65358 1c15 1 20 - 13 re60005 1f19 2 22 - 6 re63282 2f6 10 70 - 15 re65580 1i14 1 23 - 25 re60005 1h16 2 23 - 6 re63282 2f10 10 70 - 19 re65604 2f12 2 70 - 21 95-4 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=374 1l19 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page re66120 2g14 7 90 - 11 r101225 1d7 6 20 - 28 r109086 1d16 2 20 - 37 re66121 2g15 7 90 - 12 r101225 1e22 6 21 - 24 r109086 1d17 2 20 - 38 re66266 2c6 1 35 - 6 r101225 1e23 6 21 - 25 r109086 1f10 2 21 - 37 re66397 2f4 2 70 - 13 r101225 1g17 6 22 - 27 r109086 1h7 2 22 - 42 re66820 1c20 2 20 - 16 r101225 1g18 6 22 - 28 r109086 1j8 2 23 - 45 re66820 1e13 2 21 - 15 r101225 1i19 6 23 - 30 r109572 1f24 21 22 - 11 re66820 1g5 2 22 - 15 r101225 1i20 6 23 - 31 r109863 1d6 5 20 - 27 re66820 1i7 2 23 - 18 r101227 1d6 2 20 - 27 r109863 1d7 5 20 - 28 re66968 1c20 1 20 - 16 r101227 1d7 2 20 - 28 r109863 1e22 5 21 - 24 re67036 1d10 1 20 - 31 r101227 1e22 2 21 - 24 r109863 1e23 5 21 - 25 re67086 2d2 4 40 - 1 r101227 1e23 2 21 - 25 r109863 1g17 5 22 - 27 re67087 2d7 4 40 - 6 r101227 1g17 2 22 - 27 r109863 1g18 5 22 - 28 re67087 2d9 4 40 - 8 r101227 1g18 2 22 - 28 r109863 1i19 5 23 - 30 re67761 2c9 1 35 - 9 r101227 1i19 2 23 - 30 r109863 1i20 5 23 - 31 re68456 2c6 1 35 - 6 r101227 1i20 2 23 - 31 r109878 2e5 3 50 - 14 re68457 2c6 1 35 - 6 r102901 1d10 7 20 - 31 r109882 1g23 14 22 - 33 re68472 1d18 2 20 - 39 r102901 1f2 7 21 - 29 r109882 1j2 14 23 - 39 re68482 1d18 2 20 - 39 r102901 1f4 8 21 - 31 r109886 1g23 12 22 - 33 re68540 1c21 1 20 - 17 r102901 1g21 8 22 - 31 r109886 1j2 12 23 - 39 re69380 2e1 1 50 - 10 r104523 1i2 4 23 - 15 r109887 1g23 6 22 - 33 re69448 2g13 5 90 - 10 r104523 1i3 5 23 - 15a r111949 1e1 2 21 - 5 re69449 2g13 4 90 - 10 r104536 1j24 - 25 - 13 r112747 1h15 2 23 - 5 re70143 1i23 1 23 - 35 r104536 1k2 - 25 - 15 r112871 1h23 21 23 - 13 re70487 2d16 7 40 - 15 r104536 1k4 - 25 - 17 r112922 2d6 6 40 - 5 re70681 2d16 6 40 - 15 r104536 1k6 - 25 - 19 r112923 2d6 5 40 - 5 re70756 2d16 1 40 - 15 r104536 2f12 - 70 - 21 r112926 2d6 9 40 - 5 re70779 2d18 8 50 - 2 r104592 1d19 2 20 - 40 r113577 1i10 2 23 - 21 re70779 2d21 8 50 - 5 r104592 1d20 2 20 - 41 r113611 1i10 10 23 - 21 re70779 2d22 8 50 - 6 r104592 1e1 5 21 - 5 r113612 1e12 1 21 - 14 re70961 2d12 15 40 - 11 r104592 1f18 5 22 - 5 r113612 1i6 1 23 - 17 re70961 2d16 10 40 - 15 r104592 1j10 2 23 - 47 r113701 1g23 6 22 - 33 re71256 2d16 8 40 - 15 r104592 1j11 2 23 - 48 r113701 1j2 6 23 - 39 re71583 2d18 6 50 - 2 r104646 2d12 9 40 - 11 r113752 1d1 6 20 - 22 rt7700040288 2d2 4 40 - 1 r104647 2d12 11 40 - 11 r113752 1e17 6 21 - 19 rt7700040288 2d2 9 40 - 1 r104676 2d12 10 40 - 11 r113752 1g11 10 22 - 21 rt7700040288 2d7 4 40 - 6 r104677 2d12 8 40 - 11 r113752 1g12 6 22 - 22 rt7700040288 2d7 9 40 - 6 r104907 2c5 12 35 - 5 r113752 1i13 6 23 - 24 rt7700040288 2d9 4 40 - 8 r104907 2c6 12 35 - 6 r114096 1g23 9 22 - 33 rt7700040288 2d9 9 40 - 8 r104907 2c7 12 35 - 7 r114096 1j2 9 23 - 39 r100105 1d6 7 20 - 27 r104907 2c8 12 35 - 8 r114097 1g23 8 22 - 33 r100105 1e23 7 21 - 25 r104907 2c9 12 35 - 9 r114097 1j2 8 23 - 39 r100105 1g18 7 22 - 28 r105806 1d12 2 20 - 33 r114102 1g10 4 22 - 20 r100105 1i20 7 23 - 31 r105806 1f9 2 21 - 36 r114157 1h15 6 23 - 5 r100508 2d14 13 40 - 13 r105806 1h6 2 22 - 41 r114282 1d18 3 20 - 39 r100509 2d14 8 40 - 13 r106796 1c3 3 20 - 1 r115223 1c13 21 20 - 11 r100511 2d14 7 40 - 13 r106796 1c4 4 20 - 2 r115280 1c25 10 20 - 21 r100512 2d14 12 40 - 13 r106796 1d23 2 21 - 2 r115280 1d1 7 20 - 22 r100513 2d14 5 40 - 13 r106796 1f15 2 22 - 2 r115280 1e16 10 21 - 18 r100809 1c18 1 20 - 14b r106829 1c8 7 20 - 6 r115280 1e17 7 21 - 19 r100809 1e9 9 21 - 12a r106829 1e2 7 21 - 6 r115280 1g12 7 22 - 22 r100809 1e10 1 21 - 12b r106829 1f19 7 22 - 6 r115280 1i12 10 23 - 23 r100809 1g2 1 22 - 12b r106829 1h16 7 23 - 6 r115280 1i13 7 23 - 24 r100809 1i5 1 23 - 16 r106831 1c8 5 20 - 6 r115335 1f24 5 22 - 11 r100850 1c17 4 20 - 14a r106831 1e2 5 21 - 6 r115336 1g5 4 22 - 15 r100850 1e9 4 21 - 12a r106831 1f19 5 22 - 6 r115336 1i7 4 23 - 18 r100850 1g1 4 22 - 12a r106831 1h16 5 23 - 6 r115349 1d16 3 20 - 37 r100888 1c23 4 20 - 19 r106861 1j17 3 25 - 6 r115390 1h23 31 23 - 13 r10093 1c13 1 20 - 11 r106861 1j18 3 25 - 7 r116195 1e7 21 21 - 11 r10093 1c23 3 20 - 19 r106861 1j19 3 25 - 8 r116568 1c7 2 20 - 5 r10093 1c24 3 20 - 20 r106861 1j20 3 25 - 9 r116569 1e1 2 21 - 5 r10093 1g10 3 22 - 20 r108588 1c13 11 20 - 11 r116617 2d2 4 40 - 1 r10093 1i11 3 23 - 22 r108588 1e7 11 21 - 11 r116617 2d2 8 40 - 1 r101201 2c21 6 35 - 20 r108588 1f24 11 22 - 11 r116617 2d7 4 40 - 6 r101201 2c22 6 35 - 21 r108588 1h21 11 23 - 11 r116617 2d7 8 40 - 6 r101201 2c23 6 35 - 22 r108588 1h23 11 23 - 13 r116617 2d9 4 40 - 8 r101223 cast 1c17 6 20 - 14a r108679 1h24 4 23 - 14 r116617 2d9 8 40 - 8 r101225 1d6 6 20 - 27 r108679 1h25 5 23 - 14a r116617 2d12 16 40 - 11 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-5 pn=375 1l20 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page r116851 1g4 1 22 - 14 r121413 1e10 1 21 - 12b r125407 1d14 6 20 - 35 r116851 1i6 1 23 - 17 r121413 1g1 9 22 - 12a r125507 1f6 6 21 - 33 r116889 1h21 21 23 - 11 r121413 1g2 1 22 - 12b r125507 1f6 7 21 - 33 r119210 1e7 33 21 - 11 r121413 1h25 9 23 - 14a r125508 1f6 8 21 - 33 r119210 1f24 33 22 - 11 r121413 1i2 9 23 - 15 r125508 1g25 6 22 - 35 r119210 1g6 5 22 - 16 r121413 1i3 9 23 - 15a r125508 1h2 6 22 - 37 r119210 1g7 5 22 - 17 r121413 1i5 1 23 - 16 r125508 1i25 9 23 - 37 r119220 1f10 3 21 - 37 r121416 1c7 2 20 - 5 r125711 1g1 11 22 - 12a r119220 1h7 3 22 - 42 r121416 1d13 5 20 - 34 r125711 1g4 7 22 - 14 r119359 1c22 5 20 - 18 r121416 1d14 4 20 - 35 r126389 2e4 3 50 - 13 r119360 1e15 5 21 - 17 r121425 1h3 2 22 - 38 r126518 1c7 2 20 - 5 r119360 1g9 5 22 - 19 r121426 1h3 1 22 - 38 r126518 1d13 2 20 - 34 r119392 1c13 25 20 - 11 r121568 1j14 6 25 - 3 r127185 2f6 9 70 - 15 r119392 1c15 25 20 - 13 r121568 1j15 7 25 - 4 r127185 2f10 9 70 - 19 r119392 1e7 25 21 - 11 r121768 1d20 6 20 - 41 r127186 2f14 10 70 - 23 r119392 1f24 25 22 - 11 r121768 1f12 6 21 - 39 r128415 1d14 7 20 - 35 r119392 1h15 5 23 - 5 r122154 2d18 9 50 - 2 r128514 1d14 3 20 - 35 r119392 1h21 25 23 - 11 r122154 2d19 7 50 - 3 r128657 2g10 5 90 - 7 r119392 1h23 25 23 - 13 r122154 2d21 9 50 - 5 r128755 2e9 10 60 - 3 r119874 1c11 5 20 - 9 r122155 2d22 8 50 - 6 r128755 2e11 10 60 - 5 r119874 1c13 31 20 - 11 r122155 2d22 9 50 - 6 r128755 2e13 10 60 - 7 r119874 1c15 31 20 - 13 r122286 1j4 3 23 - 41 r129432 1c15 21 20 - 13 r119874 1e5 5 21 - 9 r122287 1j4 6 23 - 41 r129657 1c7 2 20 - 5 r119874 1e7 29 21 - 11 r122288 1j4 4 23 - 41 r129790 2f14 3 70 - 23 r119874 1f22 5 22 - 9 r122389 1g23 14 22 - 33 r129929 2g12 4 90 - 9 r119874 1f24 38 22 - 11 r122389 1g25 5 22 - 35 r130085 2f14 10 70 - 23 r119874 1h19 - 23 - 9 r122389 1h2 5 22 - 37 r130729 1d17 3 20 - 38 r119874 1h21 29 23 - 11 r122389 1i25 8 23 - 37 r130883 1c13 11 20 - 11 r119874 1h23 - 23 - 13 r122401 1d24 4 21 - 3 r130883 1c15 11 20 - 13 r119949 1f18 2 22 - 5 r122401 1f16 4 22 - 3 r130883 1e7 11 21 - 11 r119985 1g25 4 22 - 35 r122401 1h13 4 23 - 3 r130883 1f24 11 22 - 11 r119986 1g25 3 22 - 35 r122403 1j9 2 23 - 46 r130883 1h23 11 23 - 13 r119987 1h6 7 22 - 41 r122831 2f2 4 70 - 11 r130942 1c4 1 20 - 2 r119988 1k8 4 30 - 2 r122835 2f2 14 70 - 11 r131071 2f4 5 70 - 13 r119988 1k9 4 30 - 3 r122836 2e24 7 70 - 9 r131129 2e9 2 60 - 3 r119988 1k10 4 30 - 4 r122837 2e24 5 70 - 9 r131575 1c20 4 20 - 16 r120009 1f25 4 22 - 12 r122843 2e9 2 60 - 3 r131575 1e13 4 21 - 15 r120009 1g1 5 22 - 12a r122848 2d23 9 50 - 7 r131575 1i7 4 23 - 18 r120146 1g23 7 22 - 33 r122864 2e9 2 60 - 3 r131765 1d19 6 20 - 40 r120146 1j2 7 23 - 39 r123226 1d14 3 20 - 35 r131765 1h9 6 22 - 44 r120247 1c22 6 20 - 18 r123226 1d14 5 20 - 35 r131768 1j10 6 23 - 47 r120247 1e15 6 21 - 17 r123226 1d14 6 20 - 35 r131769 1j11 6 23 - 48 r120247 1g9 6 22 - 19 r124128 1c22 7 20 - 18 r131794 1d8 1 20 - 29 r120247 1i10 7 23 - 21 r124128 1e15 7 21 - 17 r131794 1e24 1 21 - 26 r120394 1i14 7 23 - 25 r124128 1g9 7 22 - 19 r131794 1g19 1 22 - 29 r120586 1d20 1 20 - 41 r124203 2f12 7 70 - 21 r131794 1i21 1 23 - 32 r120586 1f12 1 21 - 39 r124204 2f12 5 70 - 21 r132750 2e9 6 60 - 3 r120586 1h9 1 22 - 44 r124277 1k4 13 25 - 17 r132751 2e11 6 60 - 5 r120586 1j10 1 23 - 47 r124585 1i22 2 23 - 34 r132751 2e13 6 60 - 7 r120765 1f11 2 21 - 38 r124647 2e13 2 60 - 7 r134417 2d18 9 50 - 2 r120765 1h8 2 22 - 43 r124696 2f4 7 70 - 13 r135509 2d16 4 40 - 15 r120966 1k9 13 30 - 3 r124696 2f8 7 70 - 17 r135510 2d16 5 40 - 15 r120966 1k10 13 30 - 4 r124697 2f8 5 70 - 17 r135896 1d14 3 20 - 35 r121008 2d18 3 50 - 2 r124761 2f6 17 70 - 15 r135896 1d14 4 20 - 35 r121008 2d21 3 50 - 5 r124761 2f10 17 70 - 19 r136241 1d17 3 20 - 38 r121008 2d22 3 50 - 6 r124762 2f6 3 70 - 15 r21630 1f12 2 21 - 39 r121018 1e9 5 21 - 12a r124762 2f10 3 70 - 19 r21630 1h9 2 22 - 44 r121027 1i3 5 23 - 15a r124764 2f14 3 70 - 23 r21630 1j10 2 23 - 47 r121031 1k10 13 30 - 4 r124784 2f14 12 70 - 23 r26125 1c8 3 20 - 6 r121171 1h2 3 22 - 37 r124792 2f4 9 70 - 13 r26125 1e2 3 21 - 6 r121172 1h2 7 22 - 37 r124792 2f8 9 70 - 17 r26125 1f19 3 22 - 6 r121194 1e7 36 21 - 11 r124845 1c7 2 20 - 5 r26125 1h16 3 23 - 6 r121194 1h21 36 23 - 11 r124853 1h23 21 23 - 13 r26286 1k8 9 30 - 2 r121413 1c16 9 20 - 14 r124883 2e11 2 60 - 5 r26286 1k8 10 30 - 2 r121413 1c17 10 20 - 14a r124884 2e13 18 60 - 7 r26286 1k9 9 30 - 3 r121413 1c18 1 20 - 14b r125042 2f10 3 70 - 19 r26286 1k9 10 30 - 3 r121413 1e9 9 21 - 12a r125043 2f8 5 70 - 17 r26286 1k10 9 30 - 4 95-6 genset power units海北JohnDeere排气门异管RE518083多少钱,湘潭JohnDeere发动机活塞RE527039厂家价格,湖北约翰迪尔发动机柴油泵公司,广安强鹿6081柴油发动机凸轮轴铜衬套多少钱,柳州约翰迪尔柴油机水温传感器el52222厂家价格,韶关johndeere约翰迪尔强鹿柴油发动机增压器RE535845多少钱,南宁强鹿发动机RE31973摇臂哪家好,南昌约翰迪尔柴油发电机配件价格,黔西南约翰迪尔柴油发电机组喷油嘴厂家供应,苏州强鹿柴油发动机发电机厂家供应,厦门JOHNDEERE强鹿6068HF475配件信息,泰安约翰迪尔CH530甘蔗收获机发动机配件诚信推荐,池州约翰迪尔柴油发动机机油冷却器代理商,南昌强鹿6068柴油机凸轮随动件诚信推荐,西双版纳约翰迪尔6081柴油机缸套厂家供应,石家庄强鹿柴油机3029前油封厂家供应, (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=376 1l21 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page r26286 1k10 10 30 - 4 r44302 2g12 11 90 - 9 r54615 1c25 3 20 - 21 r26286 1k13 2 30 - 7 r46414 1j24 8 25 - 13 r54615 1d1 3 20 - 22 r26286 1k13 3 30 - 7 r46414 1k4 8 25 - 17 r54615 1e16 3 21 - 18 r26286 2c2 8 35 - 2 r47151 1i10 9 23 - 21 r54615 1e17 3 21 - 19 r26286 2c3 8 35 - 3 r47607 1k8 10 30 - 2 r54615 1g11 3 22 - 21 r26286 2c4 8 35 - 4 r47607 1k9 10 30 - 3 r54615 1g12 3 22 - 22 r26286 2c5 8 35 - 5 r47607 1k10 10 30 - 4 r54615 1i12 3 23 - 23 r26286 2c6 8 35 - 6 r47607 1k13 3 30 - 7 r54615 1i13 3 23 - 24 r26286 2c7 8 35 - 7 r48000 2c21 15 35 - 20 r54634 1f24 32 22 - 11 r26286 2c8 8 35 - 8 r48000 2c22 15 35 - 21 r54634 1g6 4 22 - 16 r26286 2c9 8 35 - 9 r48000 2c23 15 35 - 22 r54634 1g7 4 22 - 17 r26493 1c13 13 20 - 11 r48600 2c4 4 35 - 4 r54635 1f24 35 22 - 11 r26493 1c15 13 20 - 13 r48600 2c5 4 35 - 5 r54635 1g6 7 22 - 16 r26493 1e7 13 21 - 11 r48600 2c6 4 35 - 6 r54635 1g7 7 22 - 17 r26493 1f24 13 22 - 11 r48600 2c7 4 35 - 7 r54637 1j7 2 23 - 44 r26493 1h21 13 23 - 11 r48600 2c8 4 35 - 8 r54638 1j5 4 23 - 42 r26493 1h23 13 23 - 13 r48600 2c9 4 35 - 9 r54639 1j5 2 23 - 42 r26650 1c13 9 20 - 11 r48685 1c13 8 20 - 11 r54641 1d12 5 20 - 33 r26650 1c15 9 20 - 13 r48685 1c15 8 20 - 13 r54641 1f9 5 21 - 36 r26650 1e7 9 21 - 11 r48685 1c16 6 20 - 14 r54641 1h6 5 22 - 41 r26650 1f24 9 22 - 11 r48685 1c17 13 20 - 14a r54641 1i23 3 23 - 35 r26650 1h21 9 23 - 11 r48685 1e7 8 21 - 11 r54641 1j7 3 23 - 44 r26650 1h23 9 23 - 13 r48685 1e8 6 21 - 12 r54799 1f17 9 22 - 4 r26892 1k6 5 25 - 19 r48685 1e9 7 21 - 12a r54802 1c13 7 20 - 11 r27272 2c2 11 35 - 2 r48685 1e11 7 21 - 13 r54802 1c15 7 20 - 13 r27272 2c3 11 35 - 3 r48685 1f24 8 22 - 11 r54802 1e7 7 21 - 11 r27272 2c4 11 35 - 4 r48685 1f25 6 22 - 12 r54802 1f24 7 22 - 11 r27272 2c5 11 35 - 5 r48685 1g1 7 22 - 12a r54802 1h21 7 23 - 11 r27272 2c6 11 35 - 6 r48685 1g3 7 22 - 13 r54802 1h23 7 23 - 13 r27272 2c7 11 35 - 7 r48685 1h21 8 23 - 11 r54823 1g23 2 22 - 33 r27272 2c8 11 35 - 8 r48685 1h23 8 23 - 13 r54823 1h3 4 22 - 38 r27272 2c9 11 35 - 9 r48685 1h24 6 23 - 14 r54823 1j2 2 23 - 39 r27346 1j24 20 25 - 13 r48685 1h25 7 23 - 14a r55233 1c13 28 20 - 11 r27346 1k4 20 25 - 17 r48685 1i1 7 23 - 14b r55233 1c15 28 20 - 13 r27474 1i10 8 23 - 21 r48685 1i2 6 23 - 15 r55233 1e7 28 21 - 11 r27564 1i14 4 23 - 25 r48685 1i3 7 23 - 15a r55233 1f24 28 22 - 11 r28811 1f11 3 21 - 38 r48685 1i4 7 23 - 15b r55233 1h21 28 23 - 11 r28811 1h8 3 22 - 43 r48795 2c11 5 35 - 11 r55233 1h23 28 23 - 13 r28811 1j9 3 23 - 46 r48993 1f4 3 21 - 31 r55301 1c13 1 20 - 11 r32214 1c13 17 20 - 11 r48993 1g21 3 22 - 31 r55301 1c24 4 20 - 20 r32214 1c15 17 20 - 13 r48993 1i22 4 23 - 34 r55396 2d12 1 40 - 11 r32214 1e7 17 21 - 11 r500195 2g12 4 90 - 9 r55647 1c19 6 20 - 15 r32214 1f24 17 22 - 11 r50659 2d20 2 50 - 4 r55967 1j7 6 23 - 44 r32214 1h21 17 23 - 11 r50659 2d23 2 50 - 7 r56012 2d20 9 50 - 4 r32214 1h23 17 23 - 13 r50901 2d14 4 40 - 13 r56012 2d23 6 50 - 7 r35352 2c2 9 35 - 2 r50902 2d14 2 40 - 13 r56101 1k18 5 30 - 12 r35352 2c3 9 35 - 3 r51731 1c19 5 20 - 15 r56101 1k19 5 30 - 13 r35352 2c4 9 35 - 4 r51936 2c21 9 35 - 20 r56101 1k20 5 30 - 14 r35352 2c5 9 35 - 5 r51936 2c22 9 35 - 21 r56101 1k21 5 30 - 15 r35352 2c6 9 35 - 6 r51936 2c23 9 35 - 22 r56101 1k23 5 30 - 17 r35352 2c7 9 35 - 7 r51937 2c21 8 35 - 20 r56131 2c2 2 35 - 2 r35352 2c8 9 35 - 8 r51937 2c22 8 35 - 21 r56131 2c3 2 35 - 3 r35352 2c9 9 35 - 9 r51937 2c23 8 35 - 22 r56131 2c4 2 35 - 4 r39741 1e7 26 21 - 11 r52819 1j19 8 25 - 8 r56131 2c5 2 35 - 5 r39741 1f24 26 22 - 11 r53108 2d12 5 40 - 11 r56131 2c6 2 35 - 6 r39741 1h21 26 23 - 11 r53524 1f6 10 21 - 33 r56131 2c7 2 35 - 7 r39741 1h23 26 23 - 13 r53524 1g25 9 22 - 35 r56131 2c8 2 35 - 8 r42729 1c6 6 20 - 4 r53524 1h2 10 22 - 37 r56131 2c9 2 35 - 9 r42729 1d25 6 21 - 4 r53524 1i25 12 23 - 37 r56461 1i23 2 23 - 35 r42729 1f17 6 22 - 4 r53524 1j4 11 23 - 41 r56461 1j7 5 23 - 44 r42729 1h14 6 23 - 4 r54114 1e12 4 21 - 14 r56462 1g23 13 22 - 33 r43724 1j21 4 25 - 10 r54114 1g4 4 22 - 14 r56462 1j2 13 23 - 39 r43724 1j22 4 25 - 11 r54114 1i6 4 23 - 17 r56463 1c5 1 20 - 3 r44302 2d4 2 40 - 3 r54565 1c6 1 20 - 4 r56463 1d24 1 21 - 3 r44302 2d6 2 40 - 5 r54565 1d25 1 21 - 4 r56463 1f16 1 22 - 3 r44302 2d12 12 40 - 11 r54565 1f17 1 22 - 4 r56463 1h13 1 23 - 3 r44302 2g10 7 90 - 7 r54565 1h14 1 23 - 4 r56809 1i22 5 23 - 34 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-7 pn=377 1l22 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page r56809 1i23 4 23 - 35 r70182 1d7 3 20 - 28 r78598 1i1 10 23 - 14b r56811 1i22 6 23 - 34 r70182 1e22 3 21 - 24 r78598 1i2 10 23 - 15 r56947 1j4 13 23 - 41 r70182 1g17 3 22 - 27 r78598 1i3 10 23 - 15a r57059 1c25 4 20 - 21 r70182 1i19 3 23 - 30 r78598 1i4 10 23 - 15b r57059 1e16 4 21 - 18 r70438 1h2 2 22 - 37 r78598 1i5 2 23 - 16 r57059 1g11 4 22 - 21 r70438 1i25 2 23 - 37 r78743 2c2 3 35 - 2 r57059 1i12 4 23 - 23 r70513 2c10 1 35 - 10 r78743 2c3 3 35 - 3 r57260 2e5 4 50 - 14 r70956 1f6 8 21 - 33 r79024 2e18 1 70 - 3 r57270 1j21 3 25 - 10 r70956 1g25 6 22 - 35 r79089 1c13 19 20 - 11 r57270 1j22 3 25 - 11 r70956 1h2 6 22 - 37 r79089 1c15 19 20 - 13 r58967 1j11 1 23 - 48 r70956 1i25 9 23 - 37 r79089 1e7 19 21 - 11 r59409 1c25 6 20 - 21 r70956 1j4 8 23 - 41 r79089 1f24 19 22 - 11 r59409 1e16 6 21 - 18 r71963 2c21 10 35 - 20 r79089 1h21 19 23 - 11 r59409 1g11 6 22 - 21 r71963 2c22 10 35 - 21 r79089 1h23 19 23 - 13 r59409 1i12 6 23 - 23 r71963 2c23 10 35 - 22 r79345 1h19 3 23 - 9 r59409 1i14 2 23 - 25 r72745 1g1 11 22 - 12a r79604 2c21 12 35 - 20 r59962 2e3 4 50 - 12 r72745 1h25 11 23 - 14a r79604 2c22 12 35 - 21 r60492 2d25 3 50 - 9 r72745 1i3 11 23 - 15a r79604 2c23 12 35 - 22 r60746 2c21 15 35 - 20 r73596 1g3 11 22 - 13 r79605 2c21 15 35 - 20 r60746 2c22 15 35 - 21 r73596 1g4 7 22 - 14 r79605 2c22 15 35 - 21 r60828 2e6 6 50 - 15 r73596 1i4 11 23 - 15b r79605 2c23 15 35 - 22 r61871 1c25 8 20 - 21 r73597 1g4 7 22 - 14 r79854 1d8 5 20 - 29 r61871 1d1 4 20 - 22 r73597 1i6 7 23 - 17 r79854 1e24 5 21 - 26 r61871 1e16 8 21 - 18 r73598 1g4 7 22 - 14 r79854 1g19 5 22 - 29 r61871 1e17 4 21 - 19 r73598 1i6 7 23 - 17 r79854 1i21 5 23 - 32 r61871 1g11 8 22 - 21 r73604 1f4 1 21 - 31 r79863 1d8 4 20 - 29 r61871 1g12 4 22 - 22 r73604 1g21 1 22 - 31 r79863 1e24 4 21 - 26 r61871 1i12 8 23 - 23 r74195 1g4 2 22 - 14 r79863 1g19 4 22 - 29 r61871 1i13 4 23 - 24 r74195 1i6 2 23 - 17 r79863 1i21 4 23 - 32 r61871 1i14 3 23 - 25 r74354 1c25 9 20 - 21 r80033 1c19 2 20 - 15 r63104 2c2 4 35 - 2 r74354 1d1 5 20 - 22 r80033 1c21 3 20 - 17 r63104 2c3 4 35 - 3 r74354 1e16 9 21 - 18 r80033 1e12 2 21 - 14 r64100 1d19 1 20 - 40 r74354 1e17 5 21 - 19 r80033 1i6 2 23 - 17 r64268 1j7 2 23 - 44 r74354 1g11 9 22 - 21 r80034 1c19 1 20 - 15 r64449 2e2 5 50 - 11 r74354 1g12 5 22 - 22 r80034 1e12 1 21 - 14 r64449 2e3 1 50 - 12 r74354 1i12 9 23 - 23 r80500 1g5 4 22 - 15 r64449 2e4 4 50 - 13 r74354 1i13 5 23 - 24 r80500 1i7 4 23 - 18 r64449 2e5 1 50 - 14 r75728 1h12 3 23 - 2 r80724 1c20 4 20 - 16 r64449 2e6 5 50 - 15 r75892 1c13 34 20 - 11 r80724 1e13 4 21 - 15 r64848 1e11 9 21 - 13 r75892 1d1 9 20 - 22 r80724 1i7 4 23 - 18 r64848 1g3 9 22 - 13 r75892 1e17 9 21 - 19 r81072 1i14 2 23 - 25 r64848 1i4 9 23 - 15b r75892 1g12 9 22 - 22 r81275 1j13 4 25 - 2 r64851 1c16 10 20 - 14 r75892 1i13 9 23 - 24 r81275 1j14 4 25 - 3 r64851 1c18 2 20 - 14b r75893 1c13 35 20 - 11 r81275 1j15 4 25 - 4 r64851 1e10 2 21 - 12b r76477 2d12 13 40 - 11 r81989 1c17 14 20 - 14a r64851 1g2 2 22 - 12b r76964 2c2 12 35 - 2 r81989 1d16 4 20 - 37 r64851 1i2 10 23 - 15 r76964 2c3 12 35 - 3 r81989 1e9 13 21 - 12a r64851 1i5 2 23 - 16 r76964 2c4 12 35 - 4 r81989 1f10 4 21 - 37 r65215 1c13 18 20 - 11 r77052 1i14 4 23 - 25 r81989 1g1 13 22 - 12a r65215 1c15 18 20 - 13 r77491 1d5 22 20 - 26 r81989 1g3 13 22 - 13 r65215 1e7 18 21 - 11 r77491 1e20 22 21 - 22 r81989 1h7 4 22 - 42 r65215 1f24 18 22 - 11 r77491 1g15 22 22 - 25 r81989 1h25 13 23 - 14a r65215 1h21 18 23 - 11 r77491 1i17 22 23 - 28 r81989 1i1 13 23 - 14b r65215 1h23 18 23 - 13 r77499 1d5 - 20 - 26 r81989 1i3 13 23 - 15a r65607 1d5 20 20 - 26 r77499 1e20 - 21 - 22 r81989 1i4 13 23 - 15b r65607 1e20 20 21 - 22 r77499 1g15 - 22 - 25 r81989 1j8 4 23 - 45 r65607 1g15 20 22 - 25 r77499 1i17 - 23 - 28 r81996 2c11 7 35 - 11 r65607 1i17 20 23 - 28 r78598 1c16 10 20 - 14 r82859 1j24 17 25 - 13 r65833 1c20 6 20 - 16 r78598 1c17 11 20 - 14a r82859 1k2 14 25 - 15 r65833 1e13 6 21 - 15 r78598 1c18 2 20 - 14b r82859 1k4 17 25 - 17 r65833 1g5 6 22 - 15 r78598 1e9 10 21 - 12a r82859 1k6 12 25 - 19 r65833 1i7 6 23 - 18 r78598 1e10 2 21 - 12b r82859 2f4 10 70 - 13 r66090 2c21 7 35 - 20 r78598 1e11 10 21 - 13 r82859 2f8 10 70 - 17 r66090 2c22 7 35 - 21 r78598 1g1 10 22 - 12a r82859 2f12 10 70 - 21 r66090 2c23 7 35 - 22 r78598 1g2 2 22 - 12b r83063 1f6 2 21 - 33 r67188 1d10 1 20 - 31 r78598 1g3 10 22 - 13 r83063 1f6 - 21 - 33 r67188 1f2 1 21 - 29 r78598 1h25 10 23 - 14a r83063 1g25 - 22 - 35 95-8 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=378 1l23 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page r83063 1h2 2 22 - 37 r87758 1i5 1 23 - 16 r97185 1e17 8 21 - 19 r83063 1i25 - 23 - 37 r87759 1i2 8 23 - 15 r97185 1f24 20 22 - 11 r83063 1j4 - 23 - 41 r87797 2d20 1 50 - 4 r97185 1g12 8 22 - 22 r83169 1d4 15 20 - 25 r88112 1f24 31 22 - 11 r97185 1h21 20 23 - 11 r83169 1e19 15 21 - 21 r88112 1g6 2 22 - 16 r97185 1h23 20 23 - 13 r83169 1g14 15 22 - 24 r88112 1g7 2 22 - 17 r97185 1i13 8 23 - 24 r83169 1i16 15 23 - 27 r89879 1j24 23 25 - 13 r97185 2g3 2 80 - 9 r83379 1c17 9 20 - 14a r89879 1k2 15 25 - 15 r97344 1i9 1 23 - 20 r83379 1c19 7 20 - 15 r89879 1k4 23 25 - 17 r97344 1i10 1 23 - 21 r83379 1c21 6 20 - 17 r89879 1k6 4 25 - 19 r97348 1j24 4 25 - 13 r83379 1e9 11 21 - 12a r89944 2c2 5 35 - 2 r97348 1k4 4 25 - 17 r83379 1e12 7 21 - 14 r89944 2c3 5 35 - 3 r97349 1j24 14 25 - 13 r83379 1i6 7 23 - 17 r89944 2c4 5 35 - 4 r97349 1k2 10 25 - 15 r83381 1c18 1 20 - 14b r89944 2c5 5 35 - 5 r97349 1k4 14 25 - 17 r83381 1e10 1 21 - 12b r89944 2c6 5 35 - 6 r97349 1k6 8 25 - 19 r83381 1g2 1 22 - 12b r89944 2c7 5 35 - 7 r97351 1d19 7 20 - 40 r83381 1i5 1 23 - 16 r89944 2c8 5 35 - 8 r97351 1d20 7 20 - 41 r83429 1f17 9 22 - 4 r89944 2c9 5 35 - 9 r97351 1f12 7 21 - 39 r83429 1h14 9 23 - 4 r90648 1d8 1 20 - 29 r97351 1h9 7 22 - 44 r83555 1d19 6 20 - 40 r90648 1e24 1 21 - 26 r97351 1j10 7 23 - 47 r83555 1f12 6 21 - 39 r90648 1g19 1 22 - 29 r97351 1j11 5 23 - 48 r83555 1h9 6 22 - 44 r90648 1i21 1 23 - 32 r97352 1d3 1 20 - 24 r83556 1d20 6 20 - 41 r90658 1j17 6 25 - 6 r97352 1d5 13 20 - 26 r83556 1j10 6 23 - 47 r90658 1j18 6 25 - 7 r97352 1e18 1 21 - 20 r83556 1j11 6 23 - 48 r90658 1j19 9 25 - 8 r97352 1e20 13 21 - 22 r84982 1c7 2 20 - 5 r90658 1j20 5 25 - 9 r97352 1g13 1 22 - 23 r84982 1j16 1 25 - 5 r90692 1c8 8 20 - 6 r97352 1g15 13 22 - 25 r84992 1j13 3 25 - 2 r90692 1e2 8 21 - 6 r97352 1i15 1 23 - 26 r84992 1j13 5 25 - 2 r90692 1f19 8 22 - 6 r97352 1i17 13 23 - 28 r85363 1c7 1 20 - 5 r90692 1h16 8 23 - 6 r97356 1c7 4 20 - 5 r85363 1e1 1 21 - 5 r90783 1i22 1 23 - 34 r97454 1d4 8 20 - 25 r85363 1f18 1 22 - 5 r90788 1d2 2 20 - 23 r97454 1d5 17 20 - 26 r85363 1h15 1 23 - 5 r90788 1h12 4 23 - 2 r97454 1e19 8 21 - 21 r86819 1i11 4 23 - 22 r91360 2c4 3 35 - 4 r97454 1e20 17 21 - 22 r87249 2e6 4 50 - 15 r91360 2c5 3 35 - 5 r97454 1g14 8 22 - 24 r87259 1d2 4 20 - 23 r91360 2c6 3 35 - 6 r97454 1g15 17 22 - 25 r87748 1c19 7 20 - 15 r91360 2c7 3 35 - 7 r97454 1i16 8 23 - 27 r87748 1c21 6 20 - 17 r91360 2c8 3 35 - 8 r97454 1i17 17 23 - 28 r87748 1e12 7 21 - 14 r91360 2c9 3 35 - 9 r97455 1d10 6 20 - 31 r87748 1i1 11 23 - 14b r91453 2e2 4 50 - 11 r97455 1f2 6 21 - 29 r87748 1i6 7 23 - 17 r91692 1d4 11 20 - 25 r97455 1f4 7 21 - 31 r87749 1c16 8 20 - 14 r91692 1d5 14 20 - 26 r97455 1g21 7 22 - 31 r87749 1c16 9 20 - 14 r91692 1e19 11 21 - 21 r97490 1c8 6 20 - 6 r87749 1c18 1 20 - 14b r91692 1e20 14 21 - 22 r97490 1e2 6 21 - 6 r87749 1e10 1 21 - 12b r91692 1g14 11 22 - 24 r97490 1f19 6 22 - 6 r87749 1g2 1 22 - 12b r91692 1g15 14 22 - 25 r97490 1h16 6 23 - 6 r87749 1i1 9 23 - 14b r91692 1i16 11 23 - 27 r97491 1c8 6 20 - 6 r87749 1i2 9 23 - 15 r91692 1i17 14 23 - 28 r97491 1e2 6 21 - 6 r87749 1i5 1 23 - 16 r91708 1g6 5 22 - 16 r97491 1f19 6 22 - 6 r87750 1i1 8 23 - 14b r91889 1c8 1 20 - 6 r97491 1h16 6 23 - 6 r87750 1i2 8 23 - 15 r91889 1e2 1 21 - 6 r97492 1c8 8 20 - 6 r87754 1c19 7 20 - 15 r91889 1f19 1 22 - 6 r97492 1e2 8 21 - 6 r87754 1e12 7 21 - 14 r91889 1h16 1 23 - 6 r97492 1f19 8 22 - 6 r87754 1i6 7 23 - 17 r92154 1c5 2 20 - 3 r97492 1h16 8 23 - 6 r87755 1c18 1 20 - 14b r92154 1d24 2 21 - 3 r97493 1c8 8 20 - 6 r87755 1e10 1 21 - 12b r92154 1f16 2 22 - 3 r97493 1e2 8 21 - 6 r87755 1g2 1 22 - 12b r92154 1h13 2 23 - 3 r97493 1f19 8 22 - 6 r87755 1i2 9 23 - 15 r92179 1j24 9 25 - 13 r97493 1h16 8 23 - 6 r87755 1i5 1 23 - 16 r92352 2c22 15 35 - 21 r97876 1f7 3 21 - 34 r87756 1i2 8 23 - 15 r92352 2c23 15 35 - 22 r97876 1h4 3 22 - 39 r87757 1c19 7 20 - 15 r92425 1e1 6 21 - 5 r97877 1f7 4 21 - 34 r87757 1e12 7 21 - 14 r92425 1f18 6 22 - 5 r97877 1h4 4 22 - 39 r87757 1i6 7 23 - 17 r96703 2d16 2 40 - 15 r97926 1e8 4 21 - 12 r87758 1c18 1 20 - 14b r97185 1c13 20 20 - 11 r97926 1e9 5 21 - 12a r87758 1e10 1 21 - 12b r97185 1c15 20 20 - 13 r97926 1e11 5 21 - 13 r87758 1g2 1 22 - 12b r97185 1d1 8 20 - 22 r98062 1c8 6 20 - 6 r87758 1i2 9 23 - 15 r97185 1e7 20 21 - 11 r98062 1e2 6 21 - 6 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-9 pn=379 1l24 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page r98062 1f19 6 22 - 6 ty9374 1i10 11 23 - 21 t20046 1h24 2 23 - 14 r98062 1h16 6 23 - 6 ty9375 1i10 11 23 - 21 t20046 1h25 3 23 - 14a r99252 1f6 6 21 - 33 t103118 2d25 12 50 - 9 t20046 1i1 3 23 - 14b r99252 1h3 5 22 - 38 t11180 1k2 4 25 - 15 t20046 1i2 2 23 - 15 r99252 1i25 7 23 - 37 t11180 1k6 13 25 - 19 t20046 1i3 3 23 - 15a r99254 1d14 9 20 - 35 t11917 2c10 6 35 - 10 t20046 1i4 3 23 - 15b r99254 1f6 5 21 - 33 t11918 2c11 1 35 - 11 t20070 1c10 4 20 - 8 r99254 1h2 4 22 - 37 t11918 2c11 3 35 - 11 t20070 1e4 4 21 - 8 r99254 1i25 6 23 - 37 t11918 2c11 6 35 - 11 t20070 1f21 4 22 - 8 r99255 1i25 4 23 - 37 t11937 2c11 4 35 - 11 t20070 1h18 4 23 - 8 r99256 1i25 5 23 - 37 t123729 2d25 - 50 - 9 t20070 1h19 6 23 - 9 r99257 1f6 11 21 - 33 t13914 1k9 15 30 - 3 t20072 1c10 2 20 - 8 r99257 1g25 10 22 - 35 t13914 1k10 15 30 - 4 t20072 1c13 3 20 - 11 r99257 1h2 11 22 - 37 t14040 2e2 5 50 - 11 t20072 1c15 3 20 - 13 r99257 1i25 13 23 - 37 t146102 2d4 1 40 - 3 t20072 1e4 2 21 - 8 r99257 1j4 12 23 - 41 t146102 2d6 1 40 - 5 t20072 1e7 3 21 - 11 r99257 2e2 3 50 - 11 t146102 2d16 3 40 - 15 t20072 1f21 2 22 - 8 r99258 1f6 4 21 - 33 t15634 1f24 34 22 - 11 t20072 1f24 3 22 - 11 r99259 1f6 3 21 - 33 t15634 1g6 6 22 - 16 t20072 1h18 2 23 - 8 r99793 1d24 4 21 - 3 t15634 1g7 6 22 - 17 t20072 1h19 7 23 - 9 r99793 1f16 4 22 - 3 t16318 1k18 2 30 - 12 t20072 1h21 3 23 - 11 r99793 1h13 4 23 - 3 t16318 1k19 2 30 - 13 t20072 1h23 3 23 - 13 ty22007 2f21 2 80 - 2 t16318 1k20 2 30 - 14 t20073 1c6 10 20 - 4 ty22008 2f21 2 80 - 2 t16318 1k21 2 30 - 15 t20073 1c11 4 20 - 9 ty22009 2f21 1 80 - 2 t16318 1k23 2 30 - 17 t20073 1c13 6 20 - 11 ty22010 2f21 2 80 - 2 t17949 2c10 3 35 - 10 t20073 1c15 6 20 - 13 ty22011 2f21 2 80 - 2 t17950 2c10 2 35 - 10 t20073 1d25 10 21 - 4 ty6280 2f21 1 80 - 2 t18891 1c13 12 20 - 11 t20073 1e5 4 21 - 9 ty6297 2f21 1 80 - 2 t18891 1c15 12 20 - 13 t20073 1e7 6 21 - 11 ty6297 2f22 - 80 - 3 t18891 1e7 12 21 - 11 t20073 1f17 10 22 - 4 ty6298 2f21 1 80 - 2 t18891 1f24 12 22 - 11 t20073 1f22 4 22 - 9 ty6298 2f22 - 80 - 3 t18891 1h21 12 23 - 11 t20073 1f24 6 22 - 11 ty6300 2f21 1 80 - 2 t18891 1h23 12 23 - 13 t20073 1h14 10 23 - 4 ty6300 2f22 - 80 - 3 t19044 1c23 1 20 - 19 t20073 1h19 4 23 - 9 ty6301 2f21 1 80 - 2 t19044 1c24 1 20 - 20 t20073 1h21 6 23 - 11 ty6301 2f22 - 80 - 3 t19044 1g10 1 22 - 20 t20073 1h23 6 23 - 13 ty6311 2f21 1 80 - 2 t19044 1g23 1 22 - 33 t20094 1c16 3 20 - 14 ty6311 2f22 - 80 - 3 t19044 1h3 6 22 - 38 t20094 1c17 5 20 - 14a ty6312 2f21 1 80 - 2 t19044 1i11 1 23 - 22 t20094 1e8 3 21 - 12 ty6312 2f22 - 80 - 3 t19044 1j2 1 23 - 39 t20094 1e9 4 21 - 12a ty6313 2f21 1 80 - 2 t19158 1j24 21 25 - 13 t20094 1e11 4 21 - 13 ty6313 2f22 - 80 - 3 t19158 1k4 21 25 - 17 t20094 1f25 3 22 - 12 ty6333 1c11 5 20 - 9 t19651 1d10 5 20 - 31 t20094 1g1 4 22 - 12a ty6333 1c13 31 20 - 11 t19651 1d12 4 20 - 33 t20094 1g3 4 22 - 13 ty6333 1c15 31 20 - 13 t19651 1d13 4 20 - 34 t20094 1h24 3 23 - 14 ty6333 1e5 5 21 - 9 t19651 1f2 5 21 - 29 t20094 1h25 4 23 - 14a ty6333 1e7 29 21 - 11 t19651 1f4 6 21 - 31 t20094 1i1 4 23 - 14b ty6333 1f22 5 22 - 9 t19651 1f9 4 21 - 36 t20094 1i2 3 23 - 15 ty6333 1f24 38 22 - 11 t19651 1g21 6 22 - 31 t20094 1i3 4 23 - 15a ty6333 1h19 - 23 - 9 t19651 1h6 4 22 - 41 t20094 1i4 4 23 - 15b ty6333 1h21 29 23 - 11 t19858 2c10 4 35 - 10 t20098 1i10 6 23 - 21 ty6333 1h23 - 23 - 13 t19860 2c10 5 35 - 10 t20130 1g6 1 22 - 16 ty6333 2f23 1 80 - 4 t19861 2c10 7 35 - 10 t20133 1g6 1 22 - 16 ty6359 2f21 1 80 - 2 t20011 1e12 7 21 - 14 t20166 1d8 3 20 - 29 ty6360 2f21 1 80 - 2 t20011 1i6 7 23 - 17 t20166 1e24 3 21 - 26 ty6361 2f21 1 80 - 2 t20034 1d7 4 20 - 28 t20166 1g19 3 22 - 29 ty6389 2f21 2 80 - 2 t20034 1e22 4 21 - 24 t20166 1i21 3 23 - 32 ty6390 2f21 2 80 - 2 t20034 1g17 4 22 - 27 t20202 2e3 3 50 - 12 ty6391 2f21 2 80 - 2 t20034 1i19 4 23 - 30 t20215 1d11 3 20 - 32 ty6392 2f21 2 80 - 2 t20046 1c16 2 20 - 14 t20243 1d10 8 20 - 31 ty6393 2f21 2 80 - 2 t20046 1c17 3 20 - 14a t20243 1f2 8 21 - 29 ty6394 2f21 2 80 - 2 t20046 1e8 2 21 - 12 t20243 1f4 9 21 - 31 ty6519 2f20 1 80 - 1 t20046 1e9 3 21 - 12a t20243 1g21 9 22 - 31 ty6520 2f20 2 80 - 1 t20046 1e11 3 21 - 13 t20243 1i22 13 23 - 34 ty6752 2d25 14 50 - 9 t20046 1f25 2 22 - 12 t20243 1i23 5 23 - 35 ty9371 1j13 6 25 - 2 t20046 1g1 3 22 - 12a t20252 1j17 5 25 - 6 ty9371 1j16 2 25 - 5 t20046 1g3 3 22 - 13 t20255 1j18 5 25 - 7 95-10 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) pn=380 1l25 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) numerical index - continued part no- grid key page part no- grid key page part no- grid key page t20257 1j18 5 25 - 7 t23554 1e8 8 21 - 12 t35699 1f16 7 22 - 3 t20277 1d12 7 20 - 33 t23554 1e11 8 21 - 13 t35699 1h13 7 23 - 3 t20277 1d13 7 20 - 34 t23554 1f25 8 22 - 12 t42171 2d23 1 50 - 7 t20277 1f9 7 21 - 36 t23554 1g3 8 22 - 13 t43513 1j13 6 25 - 2 t20280 2e4 5 50 - 13 t23554 1h24 8 23 - 14 t43513 1j16 2 25 - 5 t20298 1c25 2 20 - 21 t23554 1i4 8 23 - 15b t58477 1j13 5 25 - 2 t20298 1e16 2 21 - 18 t23568 1e11 11 21 - 13 t58477 1j16 1 25 - 5 t20298 1g11 2 22 - 21 t23568 1e12 7 21 - 14 t74416 1k6 14 25 - 19 t20298 1i12 2 23 - 23 t23568 1i6 7 23 - 17 t84409 2d12 14 40 - 11 t20298 1i14 5 23 - 25 t23576 1e8 9 21 - 12 t84410 2d12 14 40 - 11 t20310 1c6 9 20 - 4 t23576 1f25 9 22 - 12 t84411 2d12 14 40 - 11 t20310 1d25 9 21 - 4 t23576 1h24 9 23 - 14 t84412 2d12 14 40 - 11 t20310 1h14 9 23 - 4 t23628 1d10 2 20 - 31 t84413 2d12 14 40 - 11 t20314 1c6 4 20 - 4 t23628 1f2 2 21 - 29 t84578 2d12 14 40 - 11 t20314 1d25 4 21 - 4 t23628 1f4 2 21 - 31 un4660 1k18 6 30 - 12 t20314 1f17 4 22 - 4 t23628 1g21 2 22 - 31 un4660 1k19 6 30 - 13 t20314 1h14 4 23 - 4 t24472 2c21 5 35 - 20 un4660 1k20 6 30 - 14 t20315 1c6 7 20 - 4 t24472 2c22 5 35 - 21 un4660 1k21 6 30 - 15 t20315 1d25 7 21 - 4 t24472 2c23 5 35 - 22 un4660 1k23 6 30 - 17 t20315 1f17 7 22 - 4 t24473 2e16 1 70 - 1 u12198 1g23 11 22 - 33 t20315 1h14 7 23 - 4 t24473 2e17 1 70 - 2 u12198 1j2 11 23 - 39 t20316 1c6 3 20 - 4 t24608 1e7 35 21 - 11 u13639 1e7 27 21 - 11 t20316 1d25 3 21 - 4 t24608 1h21 35 23 - 11 u13639 1f24 27 22 - 11 t20316 1f17 3 22 - 4 t26321 1d6 4 20 - 27 u13639 1h21 27 23 - 11 t20316 1h14 3 23 - 4 t26321 1e23 4 21 - 25 u13639 1h23 27 23 - 13 t20317 1d11 2 20 - 32 t26321 1g18 4 22 - 28 vlfk07v7467 2f20 2 80 - 1 t20328 1d2 3 20 - 23 t26321 1i20 4 23 - 31 vlfk7685 2f20 2 80 - 1 t20328 1h12 5 23 - 2 t26322 1d6 3 20 - 27 vlfk7970 2f20 2 80 - 1 t22867 1d20 8 20 - 41 t26322 1e23 3 21 - 25 t22867 1f12 8 21 - 39 t26322 1g18 3 22 - 28 t22867 1h9 8 22 - 44 t26322 1i20 3 23 - 31 t22867 1j10 8 23 - 47 t26327 1d7 1 20 - 28 t23214 1c16 8 20 - 14 t26327 1e22 1 21 - 24 t23214 1c17 8 20 - 14a t26327 1g17 1 22 - 27 t23214 1e8 8 21 - 12 t26327 1i19 1 23 - 30 t23214 1e9 8 21 - 12a t27658 1d4 14 20 - 25 t23214 1f25 8 22 - 12 t27658 1e19 14 21 - 21 t23214 1g1 8 22 - 12a t27658 1g14 14 22 - 24 t23214 1h24 8 23 - 14 t27658 1i16 14 23 - 27 t23214 1h25 8 23 - 14a t28745 1f24 36 22 - 11 t23214 1i2 8 23 - 15 t28745 1g6 8 22 - 16 t23214 1i3 8 23 - 15a t28745 1g7 8 22 - 17 t23215 1e8 9 21 - 12 t28850 2c2 10 35 - 2 t23215 1f25 9 22 - 12 t28850 2c3 10 35 - 3 t23215 1h24 9 23 - 14 t28850 2c4 10 35 - 4 t23260 1d3 2 20 - 24 t28850 2c5 10 35 - 5 t23260 1d5 12 20 - 26 t28850 2c6 10 35 - 6 t23260 1e18 2 21 - 20 t28850 2c7 10 35 - 7 t23260 1e20 12 21 - 22 t28850 2c8 10 35 - 8 t23260 1g13 2 22 - 23 t28850 2c9 10 35 - 9 t23260 1g15 12 22 - 25 t28860 1k2 2 25 - 15 t23260 1i15 2 23 - 26 t29969 2c15 6 35 - 14 t23260 1i17 12 23 - 28 t30199 1j24 3 25 - 13 t23435 1c13 24 20 - 11 t30199 1k4 3 25 - 17 t23435 1c15 24 20 - 13 t30726 1c22 3 20 - 18 t23435 1e7 31 21 - 11 t30726 1e15 3 21 - 17 t23435 1h21 31 23 - 11 t30726 1g9 3 22 - 19 t23442 1d8 8 20 - 29 t30726 2f6 8 70 - 15 t23442 1e24 8 21 - 26 t30726 2f10 8 70 - 19 t23442 1g19 8 22 - 29 t30726 2f14 9 70 - 23 t23442 1i21 8 23 - 32 t31174 2c21 2 35 - 20 t23474 1c13 16 20 - 11 t31174 2c22 2 35 - 21 t23474 1c15 16 20 - 13 t31174 2c23 2 35 - 22 t23474 1e7 16 21 - 11 t31306 1i25 7 23 - 37 t23474 1f24 16 22 - 11 t32853 2e2 4 50 - 11 t23474 1h21 16 23 - 11 t35699 1c5 7 20 - 3 t23474 1h23 16 23 - 13 t35699 1d24 7 21 - 3 genset power units (cd3029df,cd4039df/tf,cd4045tf,cd6059tf,cd6068tf) pc2450 (20-jan-98) 95-11 pn=381喀什疏勒县perkins涡轮增压多少钱一个原厂专卖,清远连州卡特C2.2发动机销售中心全国发货,永州祁阳县三菱S12R-PTA-C缸体批发,内蒙古自治锡林郭勒西乌珠穆沁旗珀金斯活塞与连杆进口件,彰化县帕金斯8缸发动机配件的地方在那?,烟台招远卡特输油泵轴4N1116大家推荐的日昕-英珀威,临沂蒙阴县帕金斯4008柴油发动机油泵详细参数,台北县CAT卡特C6.6发动机节温器专卖店,白山浑江卡特C1.1发动机配件销售中心联系方式?,山西大同矿道依茨发动机气缸盖垫谁知道多少钱,literature/machine technical manual for radiator service&repair. rg,ctm67,g40,5 –19–02feb94–1/2 install radiator fan—blower&suction types cd30648 –un–16jun98 suction fan (top view) cd30649 –un–16jun98 blower fan (top view) note: a blower fan pushes air through the radiator. a suction fan draws air through the radiator. see illustration. 1. install blower type fan with concave side of blade towards radiator. 2. install suction type fan with concave side of blade towards engine. ctm67 (24sep02) 40-8 oem engine acces***ies 092402 pn=174 continued on next page engine cooling system acces***ies 40 9 rg,ctm67,g40,5 –19–02feb94–2/2 rg9512 –un–18mar99 a—fan b—flat washers c—cap screws d—lock washers e—spacer 3. install fan (a) with spacer (e), if required. 4. install cap screws with new lock washers (d)&flat washers (b), if required. tighten cap screws to specifications. fan mounting cap screws—specification 5/16 in. cap screws—torque. 30 n?m (22 lb-ft) 3/8 in. cap screws—torque. 50 n?m (35 lb-ft) m8 cap screws—torque 35 n?m (26 lb-ft) m10 cap screws—torque 70 n?m (52 lb-ft) ctm67 (24sep02) 40-9 oem engine acces***ies 092402 pn=175 engine cooling system acces***ies 40 10 dpsg,ouo1004,718 –19–17mar99–1/2 check fan&alternator belts t72437 –un–23feb89 t72436 –un–23feb89 a—tension tester b—straight edge 1. inspect belts for cracks, fraying/stretched out areas. replace if necessary. important: make sure sheaves are in alignment. misaligned sheaves can cause premature belt failure from heat buildup and side wear. misalignment can also cause bearing failure. 2. operate engine for 5 minutes if belt is cold. let engine cool for 10—15 minutes if belt is hot. note: engine having dual belts, check tension of front belt only. measure belt tension on the longest part of the belt between sheaves. poly v-belt tension is measured by deflection method with a tension tester&straight edge. 3. standard v-belts check&adjust fan belt tension on standard v-belts using jdg529 gauge/equivalent gauge capable of measuring 667 n (150 lb force)&compare to following specifications. fan belt tension (standard v-belts) (using jdg529 gauge)— specification single belt (new)—tension 578—622 n (130—140 lb-force)  single belt (used)1—tension 378—423 n (85—94 lb-force)  dual belt (new)—tension 423—467 n (95—104 lb-force) . dual belt (used)1—tension 378—423 n (85—94 lb-force)  check&adjust fan belt tension on standard v-belts using jdst28 gauge&straightedge, at halfway point between sheaves,&compare to following specifications. 1 belts are considered used after 10 minutes of operation. ctm67 (24sep02) 40-10 oem engine acces***ies 092402 pn=176 continued on next page engine cooling system acces***ies 40 11 dpsg,ouo1004,718 –19–17mar99–2/2 fan belt tension (standard v-belts) (using jdst28 gauge and straightedge)—specification fan belt—tension 19 mm (3/4 in.) deflection with an 89 n (20 lb-force) halfway between pulleys . single poly v-belt check&adjust fan belt tension on single poly v-belts using jdst28 gauge&straightedge, at halfway point between sheaves,&compare to following specifications. fan belt tension (single poly v-belts) (using jdst28 gauge and straightedge)2—specification fan belt—tension 13 mm (1/2 in.) deflection with a 130 n (30 lb-force) halfway between pulleys . 2specification applies to both new&used belts. ctm67 (24sep02) 40-11 oem engine acces***ies 092402 pn=177 engine cooling system acces***ies 40 12 dpsg,rg41165,128 –19–04jun02–1/1 manual belt tensioner adjustment rg10556 –un–21dec99 check belt tension rg10557 –un–21dec99 adjust belt tension a—belt tension gauge b—cap screw c—cap screw d—tensioner bracket note: two types of manual tensioners shown. note: inspect belts for cracks, fraying,/stretched-out areas. replace if necessary. as a reference check, twist belt in the middle of a 254—305 mm (10—12 in.) span with two fingers. a properly tensioned belt will turn 75—85 degrees. if belt turns more, it needs to be tightened. if belt turns less, it needs to be loosened. note: if timing gear cover/alternator bracket interfere with installation/centering of belt tension gauge (a), install gauge with face toward engine. 1. install jdg1341 belt tension gauge (a) on belt, halfway between pulleys as shown. (jdg1341 belt tension gauge available from local john deere dealer or distributor.) 2. loosen cap screws (b)&(c). 3. slide alternator/tensioner bracket (d) in slot by hand to remove all excess slack in belt. important: do not pry against alternator rear frame. 4. stretch belt by prying outward on alternator front frame or tensioner bracket. observing tension gauge, stretch the belt until specified tension is achieved. specification new belt—tension. 470—650 n (105—145 lb-force) used belt—tension 400—580 n (90—130 lb-force) 5. tighten cap screws (b)&(c). note: after ten minutes run-in, new belts are considered used. belt tension must then be rechecked per used belt specifications. 6. run engine for ten minutes&immediately re-check belt tension per used belt specification above. 7. reset belt tension as necessary. ctm67 (24sep02) 40-12 oem engine acces***ies 092402 pn=178 engine cooling system acces***ies 40 13 ouod002,000016d –19–05jun02–1/2 manual belt tensioner adjustment using belt tension tool (alternate method for engines without auxiliary drive) rg11812 –un–31oct01 alternator bracket&cap screws rg11813 –un–31oct01 belt tension tool a—upper alternator bracket cap screw b—lower alternator bracket cap screw c—jdg1520 belt tension tool d—belt note: the jd1520 belt tension tool may not be compatible with all alternators. in that case, use the preceding method for belt tensioning. note: inspect belts for cracks, fraying,/stretched-out areas. replace if necessary. as a reference check, twist belt in the middle of a 254—305 mm (10—12 in.) span with two fingers. a properly tensioned belt will turn 75—85 degrees. if belt turns more, it needs to be tightened. if belt turns less, it needs to be loosened. 1. loosen upper (a)&lower (b) alternator bracket cap screws. lower cap screw must remain tight enough to prevent excessive alternator play but allow alternator to pivot by hand. 2. insert jdg1520 belt tension tool (c) behind belt (d) and over alternator mounting screw. continued on next page ctm67 (24sep02) 40-13 oem engine acces***ies 092402 pn=179 engine cooling system acces***ies 40 14 ouod002,000016d –19–05jun02–2/2 rg11814 –un–31oct01 belt tension tool&torque wrench rg11815 –un–31oct01 scribe reference mark a—alternator b—belt tensioning tool c—torque wrench d—reference mark e—alternator upper bracket notch 3. place torque wrench (c) on belt tensioning tool (b) at 90° to tool. pivot alternator (a) until desired torque is achieved according to specification using the following table. specification new belt—tension. 470—650 n (105—145 lb-force) used belt—tension 400—580 n (90—130 lb-force) jdg1520 belt tensioning tool torque table desired belt tension n applied torque n?m (lb-ft) (lb-force) 445 (100) 108 (90) 489 (110) 115 (85) 534 (120) 122 (90) 623 (140) 135 (100) 4. while holding tension with torque wrench (b), scribe a reference mark (d) on alternator in line with notch (e) on upper alternator bracket. 5. continue to hold tension with torque wrench and tighten upper alternator bracket cap screw. 6. check position of reference mark to see if alternator moved while tightening. if alternator moved, loosen upper alternator bracket cap screw&repeat the tension adjustment procedure. 7. remove belt tension tool&tighten lower alternator bracket cap screw. ctm67 (24sep02) 40-14 oem engine acces***ies 092402 pn=180 engine cooling system acces***ies 40 15 dpsg,ouo1004,719 –19–17mar99–1/1 adjust fan&alternator belts rw6826 –un–22feb90 a—alternator bracket cap screw b—nut a loose belt will slip, causing excessive cover wear, burn spots&overheating. also, a loose belt may “slip and grab”, causing the belt to break. too much belt tension can cause belt heating and excessive stretch. excessive belt tightness will also put heavier loads on the drive components&bearings causing them to fail prematurely. important: do not tighten/loosen belts while they are hot. do not pry against alternator rear frame. 1. loosen alternator bracket cap screw (a)&nut (b) on mounting bolt. 2. apply outward pressure to alternator front frame until correct belt tension is achieved. (see check fan and alternator belts in this group.) 3. secure alternator by tightening alternator bracket cap screw&mounting bolt nut. 4. operate engine for 10 minutes. stop engine and recheck belt tension. if tension is not within specifications, wait 10 minutes&repeat belt adjust procedure. ctm67 (24sep02) 40-15 oem engine acces***ies 092402 pn=181 engine cooling system acces***ies 40 16 ctm67 (24sep02) 40-16 oem engine acces***ies 092402 pn=182 group 45 rear pto - rockford/twin disc 45 1 dpsg,ouo1047,8 –19–22feb99–1/2 essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company dpsg,ouo1047,8 –19–22feb99–2/2 rg6246 –un–05dec97 dial indicator d17526ci (english, in.) d17527ci (metric, mm) used to adjust drive shaft end play. dpsg,ouo1047,9 –19–22feb99–1/4 service equipment&tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). some tools may be available from a local supplier. servicegard is a trademark of deere & company dpsg,ouo1047,9 –19–22feb99–2/4 three-jaw pullerd01251aa for removing pilot bearing. dpsg,ouo1047,9 –19–22feb99–3/4 push-puller d01290aa for removing clutch assembly. ctm67 (24sep02) 45-1 oem engine acces***ies 092402 pn=183 continued on next page rear pto - rockford/twin disc 45 2 dpsg,ouo1047,9 –19–22feb99–4/4 ram/pump set d01055aa for separating clutch assembly&drive shaft. ctm67 (24sep02) 45-2 oem engine acces***ies 092402 pn=184 rear pto - rockford/twin disc 45 3 dpsg,ouo1004,740 –19–23mar99–1/4 rockford/twin disc rear power take-off specifications item measurement specification series 300 drive disk maximum thickness 7 mm (0.313 in.) series 400 clutch disk thickness 10.90—11.51 mm (0.424—0.453 in.) series 500, 6619a ( -027449) thickness 10.89—11.51 mm (0.429—0.453 in.) series 500, 6619a (027450- ); thickness 15.75—16.00 mm 6101h,a&8.1 l, 10.5 l&12.5 (0.620—0.630 in.) l series 700 clutch disk thickness 15.75—16.00 mm (0.620—0.630 in.) series 300 clutch separator springs compressive load at 67—89 n 20.06 mm (0.81 in.) (15—20 lb) series 400 clutch separator springs 6466d, t; 6466a ( -041994) free length 26.9 mm (1.06 in.) compressive load at 67—84 n 20.06 mm (0.81 in.) (15—20 lb) 6466a (041995— ); 6076t,a,h free length 50.8 mm (2.00 in.) compressive load at 67—89 n 30.16 mm (1.18 in.) (15—20 lb) series 500 separator springs—early free length 26.9 mm (1.06 in.) compressive load at 67—89 n 20.06 mm (0.81 in.) (15—20 lb) series 400 pilot bearing id 29.99—30.00 mm (1.1808—1.1811 in.) od 71.99—72.00 mm (2.8342—2.8346 in.) series 500 pilot bearing—early id 29.992—30.000 mm (1.1808—1.1811 in.) od 71.998—72.000 mm (2.8342—2.8346 in.) ctm67 (24sep02) 45-3 oem engine acces***ies 092402 pn=185 continued on next page rear pto - rockford/twin disc 45 4 dpsg,ouo1004,740 –19–23mar99–2/4 item measurement specification series 500 (late)&8.1 l, 10.5 l id 34.98—35.00 mm and 12.5 l pilot bearing (1.3775—1.3780 in.) od 79.98—80.00 mm (3.1491—3.1496 in.) series 700 pilot bearing id 34.98—35.00 mm (1.3775—1.3780 in.) od 79.98—80.00 mm (3.1491—3.1496 in.) series 400 clutch drive shaft 6466d,t; 6466a ( -041994) at pilot bearing od 29.992—30.002 mm (1.1808—1.1811 in.) at bearing surface side-load od 57.188—57.214 mm application (2.2515—2.2525 in.) at bearing surface in-line od 56.718—57.023 mm application (2.2330—2.2450 in.) at release collar surface od 57.099—57.125 mm (2.2480—2.2490 in.) series 400 clutch drive shaft 6466a (041995— ); 6076t,a,h at pilot bearing od 29.992—30.002 mm (1.1808—1.1811 in.) at bearing surface side-load od 66.713—66.739 mm application (2.6265—2.6275 in.) at bearing surface in-line od 65.938—66.243 mm application (2.5960—2.6080 in.) at release collar sliding surface od 62.205—63.500 mm (2.4490—2.5000 in.) early series 500 clutch drive shaft at pilot bearing od 29.992—30.002 mm (1.1808—1.1812 in.) ctm67 (24sep02) 45-4 oem engine acces***ies 092402 pn=186 continued on next page rear pto - rockford/twin disc 45 5 dpsg,ouo1004,740 –19–23mar99–3/4 item measurement specification at bearing surface side load od 57.188—57.214 mm applications (2.2515—2.2525 in.) at bearing surface in-line od 56.718—57.023 mm application (2.2330—2.2450 in.) at release collar sliding surface od 57.099—57.125 mm (2.2480—2.2490 in.) late series 500&8.1 l, 10.5 l and 12.5 l clutch drive shaft at pilot bearing od 34.99—35.00 mm (1.3776—1.3781 in.) at bearing surface side load od 88.94—88.96 mm applications (3.5015—3.5025 in.) at bearing surface in-line od 79.99—80.01 mm application (3.1495—3.1501 in.) at release collar sliding surface od 76.10—76.15 mm (2.9960—2.9980 in.) series 700 clutch drive shaft at pilot bearing od 34.99—35.00 mm (1.3776—1.3781 in.) at bearing surface side-load od 88.94—88.96 mm application (3.5015—3.5025 in.) at bearing surface in-line od 79.99—80.01 mm application (3.1495—3.1501 in.) at release collar sliding surface od 76.10—76.15 mm (2.9960—2.9980 in.) yoke cap screws torque 27 n?m (20 lb-ft) yoke handle cap screw torque 27 n?m (20 lb-ft) series 400 drive shaft end play 0.10—0.15 mm (0.004—0.006 in.) ctm67 (24sep02) 45-5 oem engine acces***ies 092402 pn=187 continued on next page rear pto - rockford/twin disc 45 6 dpsg,ouo1004,740 –19–23mar99–4/4 item measurement specification series 500, 8.1 l, 10.5 l&12.5 l end play 0.10—0.15 mm (0.004—0.006 in.) drive shaft series 700 drive shaft end play 0.10—0.15 mm (0.004—0.006 in.) side load clutch shaft endplay 0.10—0.15 mm (0.004—0.006 in.) release collar nuts torque 27 n?m (20 lb-ft) drive shaft retaining nut torque 230—244 n?m (170—180 lb-ft) flywheel housing face run-out maximum variation 0.20 mm (0.008 in.) flywheel face flatness maximum variation 0.23 mm (0.009 in.) maximum variation per 25 mm (1.0 0.013 mm (0.0005 in.) in.) of travel flywheel pilot bearing bore maximum variation 0.127 mm (0.005 in.) concentricity clutch drive ring cap screws torque 47 n?m (35 lb-ft) clutch housing-to-flywheel housing cap screws side-load application torque 47 n?m (35 lb-ft) in-line application torque 75 n?m (55 lb-ft) clutch engagement series 300 force 267—311 n (60—70 lb) series 400, 6466d, t; 6466a force 267—311 n (60—70 lb) ( -01994) series 400, 6466a (041995- ); force 289—333 n (65—75 lb) 6076t,a,h series 500, 6619a ( -027449) force 267—311 n (60—70 lb) series 500, 6619a (027450- ), force 289—333 (65—75 lb) 6101h,a&8.1 l, 10.5 l and 12.5 l series 700 force 378—422 (85—95 lb) ctm67 (24sep02) 45-6 oem engine acces***ies 092402 pn=188 rear pto - rockford/twin disc 45 7 s11,5005,as –19–02feb94–1/1 general information the direct-drive power take-off unit is designed to permit engine power to gradually be transferred to any application by use of the pto clutch unit. the power take-off assembly may be either an in-line or side-load application. the side-load application cannot be used for in-line work&the in-line application cannot be used for side-load work. s11,5005,a –19–02feb94–1/1 diagnosing malfunctions clutch slips ? clutch out of adjustment ? worn/burned clutch ? oil/grease on clutch facings clutch grabs/chatters ? loose/worn drive ring ? worn teeth on clutch facings clutch noise ? clutch loose on drive shaft ? drive ring loose clutch will not release ? frozen pilot bearing clutch drag ? broken lever springs ? rough clutch splines ? clutch facings oil soaked ? clutch parts worn ? excessive clutch face runout clutch engages itself ? improper adjustment ? worn linkage ? worn release collar drive shaft bearing runs hot ? insufficient bearing end-play ? excessive bearing lubrication ? insufficient bearing lubrication defective pilot bearing ? improper removal/installation ? lack of lubrication. ctm67 (24sep02) 45-7 oem engine acces***ies 092402 pn=189 rear pto - rockford/twin disc 45 8 s11,5005,at –19–02feb94–1/1 remove power take-off rg4657 –un–19jan90 a—operating lever b—hook c—cap screws d—tapped holes 1. engage clutch operating lever (a). 2. remove name plate to access opening for hook (b). 3. insert hook securely. raise hoist to support power take-off. 4. remove 12 cap screws (c). 5. install two cap screws into tapped holes (d) in housing. tighten cap screws evenly to separate pto unit from flywheel housing. ctm67 (24sep02) 45-8 oem engine acces***ies 092402 pn=190 rear pto - rockford/twin disc 45 9 ctm67 (24sep02) 45-9 oem engine acces***ies 092402 pn=191 rear pto - rockford/twin disc 45 10 dpsg,ouo1004,742 –19–24mar99–1/2 power take-off exploded view rg9531 –un–25mar99 fig. 2 - pto assembly ctm67 (24sep02) 45-10 oem engine acces***ies 092402 pn=192 continued on next page rear pto - rockford/twin disc 45 11 dpsg,ouo1004,742 –19–24mar99–2/2 1—yoke shaft 21—spacer1 47—clutch body 73—plate 2—woodruff key 22—snap ring (2 used) 48—washer 74—adjusting ring 3—lubrication fitting 23—bearing 49—nut 75—pressure plate 4—nut 24—drive shaft 50—bearing 76—driving disk 5—lubrication fitting 25—handle 51—key 77—center plate (if used) 6—screw 26—washer 52—cap screw (8 used) 78—driving disk (if used) 7—plate 27—cap screw 53—spring (4 used) 79—driving ring 8—gasket 28—washer (2 used) 54—rivet 80—key 9—set screw 29—cap screw (2 used) 55—snap ring (8 used) 81—snap ring (3 used) 10—bearing cup (2 used) 30—yoke 56—snap ring (4 used) 82—clutch body 11—bearing cone (2 used) 31—washer (12 used) 57—washer (8 used) 83—lock washer 12—drive shaft 32—cap screw (12 used) 58—pin (4 used) 84—nut 13—bearing retainer 33—housing 59—lever (4 used) 85—spacer (if used) 14—lock plate 34—key 60—link (8 used) 86—bearing 15—washer 35—pin 61—pin (8 used) 87—pin (3 used) 16—cap screw 36—lock 62—grease tube 88—spring (3 used) 17—cap screw 37—cap screw 63—cap screw (2 used) 89—cap screw (8 used) 18—washer 38—lock washer 64—release collar 90—lock 19—lock plate 39—spring 65—release sleeve 91—lock washer 20—bearing retainer 40—adjusting ring 66—lock washer (2 used) 92—cap screw 41—wear plate 67—lock nut (2 used) 93—grease tube 42—pressure plate 68—pin (6 used) 94—release sleeve 43—driving disk 69—lever (3 used) 95—cap screw (2 used) 44—center plate 70—link (6 used) 96—release collar 45—driving disk 71—snap ring (6 used) 97—lock washer (2, if used) 46—driving ring 72—spring 98—lock nut (2 used) note: parts (10—16) are for side-load pto applications. note: parts (17—24) are for in-line pto applications. note: parts (68—98) are for early version pto. 1 on some early version in-line pto’s, spacer (21) is installed on right side of drive shaft. bearing (23) with snap rings is then installed on left side of shaft. ctm67 (24sep02) 45-11 oem engine acces***ies 092402 pn=193 rear pto - rockford/twin disc 45 12 dpsg,ouo1004,736 –19–23mar99–1/6 disassemble power take-off rg3715 –un–25sep89 a—pilot bearing b—bearing puller 1. remove pilot bearing (a) using the d01251aa bearing puller (b). note: some early model pto’s may have a spacer beneath bearing. 2. remove spacer (if equipped). dpsg,ouo1004,736 –19–23mar99–2/6 rg3716 –un–25sep89 a—nut b—tube c—housing 3. remove nut (a). 4. disconnect grease tube (b) from housing (c). dpsg,ouo1004,736 –19–23mar99–3/6 rg9533 –un–26mar99 a—bar b—drive shaft c—release lever 5. insert bar (a) between release lever (c)&drive shaft (b) through inspection hole to keep drive shaft from turning. continued on next page ctm67 (24sep02) 45-12 oem engine acces***ies 092402 pn=194 rear pto - rockford/twin disc 45 13 dpsg,ouo1004,736 –19–23mar99–4/6 rg3717 –un–25sep89 a—washer b—nut 6. bend back tab on lock washer (a) from nut (b). 7. remove nut. note: nut has right-hand threads. continued on next page ctm67 (24sep02) 45-13 oem engine acces***ies 092402 pn=195 rear pto - rockford/twin disc 45 14 dpsg,ouo1004,736 –19–23mar99–5/6 rg3719 –un–25sep89 a—clutch assembly b—cap screw (2 used) c—flat washer (2 used) d—d01290aa push puller note: later model clutch assemblies do not have tapped holes to install d01290aa puller. use another suitable puller. 8. install d01290aa push puller (d) using two 3/4—10 x 5 in. cap screws (b)&two flat washers (c) to break clutch assembly (a) loose from drive shaft. caution: clutch unit is heavy. use care in handling. note: for ease&convenience, it may be necessary to use d01055aa ram/pump set (not shown) along with push puller to remove clutch assembly. 9. remove puller&place clutch assembly on clean work bench with release lever up. remove yoke note: see exploded view at the beginning of this group for illustration of parts referred to in following removal steps. 1. loosen cap screws (29) on yoke (30)&operating lever (25). remove lever. 2. drive yoke either left/right to expose woodruff keys (2). remove keys. 3. withdraw yoke shaft (1) from yoke&housing. remove yoke. disassemble clutch assembly (early version) note: see exploded view at the beginning of this group for illustration of parts referred to in following removal steps. 1. remove release lever spring (72) from release sleeve assembly. 2. mark both halves of release collar (96) for reassembly. 3. remove cap screws (95)&nuts (98)&separate collar from release sleeve (94). 4. remove pins (87)&discard retaining rings (81). ctm67 (24sep02) 45-14 oem engine acces***ies 092402 pn=196 continued on next page rear pto - rockford/twin disc 45 15 dpsg,ouo1004,736 –19–23mar99–6/6 5. remove release sleeve from clutch assembly. 6. remove adjusting lock (90). 7. remove adjusting ring (74) by unscrewing from pressure plate (75). 8. lift pressure plate from clutch body. 9. remove driving disk (76). on double-disk units, remove center plate (77)&second driving disk (78). 10. remove separator springs (88) from body. 11. remove clutch assembly. disassemble clutch assembly (later version) note: see exploded view at the beginning of this group for illustration of parts referred to in following removal steps. 1. remove snap rings (55)&pins (61) attaching links (60) to levers (59). 2. remove release sleeve assembly from clutch body. 3. remove links (60) from release sleeve. 4. mark halves of release collar (64) for reassembly and remove from release sleeve (65). 5. remove adjusting lock parts (35—39). 6. remove adjusting ring assembly (40) by rotating counterclockwise. 7. remove levers (59) from pressure plate (42). 8. remove springs (53). 9. remove parts (42—45) from clutch body. 10. remove clutch assembly. ctm67 (24sep02) 45-15 oem engine acces***ies 092402 pn=197 rear pto - rockford/twin disc 45 16 dpsg,ouo1004,725 –19–18mar99–1/7 inspect power take-off parts rg3726 –un–25sep89 1. inspect clutch driving disks for worn driving teeth and burned/scored friction faces. replace as necessary. 2. check thickness of clutch driving disks. specification series 300 drive disk—maximum thickness. 7 mm (0.313 in.) series 400 clutch disk— thickness 10.90—11.51 mm (0.424—0.453 in.) . series 500, 6619a ( -027449)— thickness 10.89—11.51 mm (0.429—0.453 in.) . series 500, 6619a (027450- ); 6101h,a&8.1l, 10.5l and 12.5l—thickness 15.75—16.00 mm (0.620—0.630 in.)  series 700 clutch disk— thickness 15.75—16.00 mm (0.620—0.630 in.) . replace as necessary. 3. inspect separator springs for correct tension. specification series 300 clutch separator springs—compressive load at 67—89 n (15—20 lb) . 20.06 mm (0.81 in.) series 400 clutch separator springs—specification 6466d, t; 6466a ( -041994)— free length  26.9 mm (1.06 in.) compressive load at 67—84 n (15—20 lb) 20.06 mm (0.81 in.) 6466a (041995— ); 6076t,a,h—free length . 50.8 mm (2.00 in.) compressive load at 67—89 n (15—20 lb) 30.16 mm (1.18 in.) specification series 500 separator springs— early—free length  26.9 mm (1.06 in.) compressive load at 67—89 n (15—20 lb) 20.06 mm (0.81 in.) replace any spring that is rusted, bent/distorted. ctm67 (24sep02) 45-16 oem engine acces***ies 092402 pn=198 continued on next page rear pto - rockford/twin disc 45 17 dpsg,ouo1004,725 –19–18mar99–2/7 rg3729 –un–25sep89 4. inspect pilot bearing for roughness&wear. specification series 400 pilot bearing—id 29.99—30.00 mm (1.1808—1.1811 in.)  od 71.99—72.00 mm (2.8342—2.8346 in.) . series 500 pilot bearing—early— id 29.992—30.000 mm (1.1808—1.1811 in.) . od 71.998—72.000 mm (2.8342—2.8346 in.) . series 500 (late)&8.1 l, 10.5 l&12.5 l pilot bearing—id 34.98—35.00 mm (1.3775—1.3780 in.) . od 79.98—80.00 mm (3.1491—3.1496 in.) . series 700 pilot bearing—id 34.98—35.00 mm (1.3775—1.3780 in.)  od 79.98—80.00 mm (3.1491—3.1496 in.) . replace as necessary. dpsg,ouo1004,725 –19–18mar99–3/7 rg3730 –un–25sep89 a—lock plate b—bearing retainer 5. to inspect/replace bearings, remove lock plate (a). 6. turn bearing retainer (b) counterclockwise&remove using a brass drift&hammer. 7. on in-line applications, remove grease fitting from output end of drive shaft. 8. remove bearing from housing by striking output end of drive shaft with a soft hammer. continued on next page ctm67 (24sep02) 45-17 oem engine acces***ies 092402 pn=199 rear pto - rockford/twin disc 45 18 dpsg,ouo1004,725 –19–18mar99–4/7 rg3731 –un–25sep89 a—snap ring b—snap ring 9. on side-load pto application, rear bearing cup will remain in housing. drive cup from housing by alternately driving a punch in holes at rear of housing rear drive shaft bore. 10. press drive shaft from bearing. on in-line applications, remove snap rings (a&b) before pressing. inspect drive shaft&bearings for wear/damage. replace as necessary. clean shaft&bearings in clean solvent&blow dry. continued on next page ctm67 (24sep02) 45-18 oem engine acces***ies 092402 pn=200 rear pto - rockford/twin disc 45 19 dpsg,ouo1004,725 –19–18mar99–5/7 rg3732 –un–25sep89 a—bearing surface 11. check bearing surfaces (a) on clutch shaft for wear or roughness. series 400 clutch drive shaft 6466d,t; 6466a ( -041994): series 400 clutch drive shaft 6466d,t; 6466a ( -041994)— specification at pilot bearing—od 29.992—30.002 mm (1.1808—1.1811 in.) . at bearing surface side-load application—od 57.188—57.214 mm (2.2515—2.2525 in.)  at bearing surface in-line application—od 56.718—57.023 mm (2.2330—2.2450 in.)  at release collar surface—od 57.099—57.125 mm (2.2480—2.2490 in.)  series 400 clutch drive shaft 6466a (041995— ); 6076t,a,h: series 400 clutch drive shaft 6466a (041995— ); 6076t,a,h— specification at pilot bearing—od 29.992—30.002 mm (1.1808—1.1811 in.) . at bearing surface side-load application—od 66.713—66.739 mm (2.6265—2.6275 in.)  at bearing surface in-line application—od 65.938—66.243 mm (2.5960—2.6080 in.)  at release collar sliding surface—od 62.205—63.500 mm (2.4490—2.5000 in.) . early series 500 clutch drive shaft: early series 500 clutch drive shaft—specification at pilot bearing—od 29.992—30.002 mm (1.1808—1.1812 in.) . at bearing surface side load applications—od 57.188—57.214 mm (2.2515—2.2525 in.)  at bearing surface in-line application—od 56.718—57.023 mm (2.2330—2.2450 in.)  at release collar sliding surface—od 57.099—57.125 mm (2.2480—2.2490 in.) . late series 500&8.1 l, 10.5 l&12.5 l clutch drive shaft: ctm67 (24sep02) 45-19 oem engine acces***ies 092402 pn=201 continued on next page rear pto - rockford/twin disc 45 20 dpsg,ouo1004,725 –19–18mar99–6/7 late series 500&8.1 l, 10.5 l&12.5 l clutch drive shaft— specification at pilot bearing—od 34.99—35.00 mm (1.3776—1.3781 in.) . at bearing surface side load applications—od 88.94—88.96 mm (3.5015—3.5025 in.)  at bearing surface in-line application—od 79.99—80.01 mm (3.1495—3.1501 in.)  at release collar sliding surface—od 76.10—76.15 mm (2.9960—2.9980 in.) . series 700 clutch drive shaft: series 700 clutch drive shaft—specification at pilot bearing—od 34.99—35.00 mm (1.3776—1.3781 in.) . at bearing surface side-load application—od 88.94—88.96 mm (3.5015—3.5025 in.)  at bearing surface in-line application—od 79.99—80.01 mm (3.1495—3.1501 in.)  at release collar sliding surface—od 76.10—76.15 mm (2.9960—2.9980 in.) . continued on next page ctm67 (24sep02) 45-20 oem engine acces***ies 092402 pn=202 rear pto - rockford/twin disc 45 21 dpsg,ouo1004,725 –19–18mar99–7/7 rg3728 –un–25sep89 a—wear ring b—rivets 12. inspect pressure plate, center plate (if used) and clutch body for scoring, cracks,/heat checks. splines on clutch body&pressure plate must be free from scratches&worn spots. 13. check threads on adjusting ring&clutch body for wear&replace as necessary. 14. inspect all pins, links,&levers for wear, damage, or holes out of round. replace as necessary. 15. inspect release sleeve, release bearing collar, and bearing retainer. replace as necessary. mark bearing collars for reassembly. 16. inspect wear ring (a) on adjusting ring for wear around the o.d. of the wear face. note: on later version pto, wear ring is not serviceable. replace adjusting ring assembly if worn. 17. to replace wear ring, drive rivets (b, three used) out with a punch. install new wear ring&secure with new rivets. ctm67 (24sep02) 45-21 oem engine acces***ies 092402 pn=203 rear pto - rockford/twin disc 45 22 dpsg,ouo1004,741 –19–24mar99–1/1 assemble drive shaft&bearings— side-load application rg3730 –un–25sep89 a—lock plate b—bearing retainer (refer to exploded view illustration at beginning of this group prior to following assembly procedure.) caution: oil fumes/oil can ignite above 193°c (380°f). use a thermometer&do not exceed 182°c (360°f). do not allow a flame or heating element to be in direct contact with the oil. heat the oil in a well-ventilated area. plan a safe handling procedure to avoid burns. 1. heat new bearing cones (11) in oil to no more than 149°c (300°f). (do not heat cup.) 2. install bearings on shaft (12) until bearing cones are flush against raised portion of shaft. 3. remove rear bearing cup as previously directed. 4. install new bearing cup into housing. 5. pack bearings with grease. 6. install shaft/bearing assembly into housing. 7. install front bearing cup into bearing retainer. 8. install bearing retainer by turning retainer clockwise. 9. adjust drive shaft end play. (see adjust drive shaft end play-side load only as described later in this group.) 10. install lock plate (a)&tighten securely. ctm67 (24sep02) 45-22 oem engine acces***ies 092402 pn=204 rear pto - rockford/twin disc 45 23 rg,ctm67,g45,3 –19–02feb94–1/1 assemble drive shaft&bearings—in-line application rg3731 –un–25sep89 a—retaining ring b—retaining ring caution: oil fumes of oil can ignite above 193°c (380°f). use a thermometer&do not exceed 182°c (360°f). do not allow a flame or heating element to be in direct contact with the oil. heat the oil in a well-ventilated area. plan a safe handling procedure to avoid burns. 1. install retaining ring (a) onto shaft. 2. heat new bearing in oil to no more than 149°c (300°f). 3. install new bearing on shaft until bearing is flush against snap ring. 4. install retaining ring (b) on shaft/bearing assembly. 5. pack bearings with grease. 6. insert shaft with bearing into housing. if necessary, drive bearing into housing using a piece of pipe the same diameter as the bearing’s outer race. 7. install spacer. 8. install bearing retainer, turning clockwise until retainer presses bearing to bottom of housing. 9. install bearing retainer&lock plate. ctm67 (24sep02) 45-23 oem engine acces***ies 092402 pn=205 rear pto - rockford/twin disc 45 24 s11,5005,ac –19–02feb94–1/2 install yoke rg3725 –un–25sep89 a—yoke b—woodruff key c—yoke shaft 1. install yoke (a)&yoke shaft (c). note: cap screw heads on yoke should face toward clutch. 2. install woodruff keys (b) into shaft. s11,5005,ac –19–02feb94–2/2 rg3724 –un–25sep89 a—handle b—yoke shaft c—cap screws 3. center yoke onto yoke shaft (b)&tighten cap screws (c) to specifications. specification yoke cap screws—torque. 27 n?m (20 lb-ft) 4. install handle (a) onto shaft&tighten cap screw to specifications. specification yoke handle cap screw—torque 27 n?m (20 lb-ft) ctm67 (24sep02) 45-24 oem engine acces***ies 092402 pn=206 rear pto - rockford/twin disc 45 25 s11,5005,bj –19–02feb94–1/1 check&adjust drive shaft end play rg3733 –un–03mar93 a—bearing retainer note: end play can be adjusted on side load applications only. 1. use a sling/similar device to cradle housing so that drive shaft is vertical. 2. allow end of drive shaft to rest on wood block on floor. 3. raise housing slightly&tap pilot end of shaft to seat parts. 4. mount dial indicator on face of clutch housing and adjust pointer to rest on pilot end of drive shaft. zero the indicator. 5. lower housing so drive shaft rests on block. 6. for in-line applications: measure end play and compare to the following specifications: specification series 400 drive shaft—end play 0.10—0.15 mm (0.004—0.006 in.) series 500, 8.1 l, 10.5 l and 12.5 l drive shaft—end play . 0.10—0.15 mm (0.004—0.006 in.) series 700 drive shaft—end play 0.10—0.15 mm (0.004—0.006 in.) 7. for side load applications: tap lightly around housing near drive shaft to seat front bearing in cup. read indicator. adjust drive shaft end play by turning bearing retainer (a) clockwise to decrease endplay. specification side load clutch shaft—endplay. 0.10—0.15 mm (0.004—0.006 in.) ctm67 (24sep02) 45-25 oem engine acces***ies 092402 pn=207 rear pto - rockford/twin disc 45 26 dpsg,ouo1004,737 –19–23mar99–1/3 assemble clutch unit (early version) rg9534 –un–25mar99 1—release collar 9—plate 17—clutch body 24—cap screw (8 used) 2—lock washer (2 used) 10—adjusting ring 18—lock washer 25—lock 3—lock nut (2, if used) 11—pressure plate 19—nut 26—lock washer 4—pin (6 used) 12—driving disk (1/2) 20—spacer (if used) 27—cap screw 5—lever (3 used) 13—center plate (if used) 21—bearing 28—grease tube 6—link (6 used) 14—driving ring 22—pin (3 used) 29—release sleeve 7—snap ring (6 used) 15—key 23—spring (3 used) 30—cap screw (2 used) 8—spring 16—snap ring (3 used) 1. place clutch body (17) on bench with hub end up. 2. install separator springs (23) in holes in clutch body. 3. position clutch driving disk over hub. 4. on double-disk units, position center plate (13) and second driving disk (12) over hub. position pressure plate (11) over hub. notches in i.d. of pressure plate must align with release lever bosses on clutch body. lower pressure plate onto separator springs. continued on next page ctm67 (24sep02) 45-26 oem engine acces***ies 092402 pn=208 rear pto - rockford/twin disc 45 27 dpsg,ouo1004,737 –19–23mar99–2/3 rg4656 –un–19jan90 a—adjusting ring b—release lever c—pin d—release collar e—bolt f—links g—pin h—pin 5. screw adjusting ring (a) into pressure plate until it bottoms. 6. install three release levers (b) with tab on lever facing out. 7. insert pins (c) with heads facing direction of rotation. secure pins with new retaining rings. 8. apply grease to i.d. of clutch release sleeve collar halves. 9. place two halves of release collar (d) together over shoulder of release sleeve, aligning scribe marks. be sure machined side of collar faces up. 10. install bolts (e)&nuts, tightening to specifications. specification release collar nuts—torque . 27 n?m (20 lb-ft) 11. rotate collar to check for binding. if collar binds, shim between release collar halves to obtain clearance. 12. place release lever spring (8) over release sleeve and against release collar before installing links (f). note: if links (f) were not removed from sleeve, go to step 15. 13. place one link on each side of ear on release sleeve with triangular tab on link at release sleeve&point of triangle facing center of sleeve. 14. install pins (g) with heads facing direction of rotation. secure pins with new retaining rings. 15. install release sleeve assembly on clutch with each pair of links astride release lever. install pins (h) and retaining rings. 16. slide release lever spring (8) into place over release levers. 17. remove driving ring (14) from flywheel. 18. center clutch driving disk(s) between clutch body and pressure plate using driving ring (14). ctm67 (24sep02) 45-27 oem engine acces***ies 092402 pn=209 continued on next page rear pto - rockford/twin disc 45 28 dpsg,ouo1004,737 –19–23mar99–3/3 19. turn adjusting ring (10) counterclockwise until pressure plate almost contacts driving disk. 20. engage clutch by applying pressure to release sleeve. if driving disk can be moved, adjust ring counterclockwise enough to lock driving disk in place. ctm67 (24sep02) 45-28 oem engine acces***ies 092402 pn=210 rear pto - rockford/twin disc 45 29 dpsg,ouo1004,739 –19–23mar99–1/1 assemble clutch unit (late version) rg9532 –un–26mar99 1—pin 9—driving disk (2 used) 17—cap screw (8 used) 25—link (8 used) 2—lock 10—center plate 18—rivet 26—pin (8 used) 3—cap screw 11—driving ring 19—spring (4 used) 27—grease tube 4—lock washer 12—clutch body 20—snap ring (8 used) 28—cap screw (2 used) 5—spring 13—washer 21—snap ring (4 used) 29—release collar 6—adjusting ring 14—nut 22—washer (8 used) 30—release sleeve 7—wear plate 15—bearing 23—pin (4 used) 31—lock washer (2 used) 8—pressure plate 16—key 24—lever (4 used) 32—lock nut (2 used) 1. place clutch body (12) on bench with hub end (threads) up. 2. place driving disk (9) , center plate (10), then second driving disk (9) on clutch body. 3. lay pressure plate (8) friction surface on clutch body with pressure plate drive splines meshing with hub splines. 4. install levers (24) , springs (19)&pins (23) on pressure plate. secure pins with snap rings (21). 5. lubricate threads of adjusting ring (6)&thread into clutch body clockwise to tighten. 6. using marks made during disassembly, attach release collar (29) to release sleeve (30) using cap screws&lock nuts. tighten nuts to specifications. specification release collar nuts—torque. 27 n?m (20 lb-ft) 7. attach links (25) on each side of lug on release sleeve using pins (26), with head of pin leading direction of rotation. secure pins with snap rings (20). 8. place release sleeve assembly on adjusting ring (6) lining links up to attach with levers. install pins through links&levers, with head of pins leading direction of rotation,&secure with snap rings. 9. tighten adjusting ring (6) only enough to hold disks in place when clutch is engaged. 10. place drive ring (11) over clutch assembly and make sure teeth of drive ring mesh with teeth of drive disks. 11. using drive ring (11), center drive disks between clutch body (12)&pressure plate (8). engage clutch to hold disks in place. ctm67 (24sep02) 45-29 oem engine acces***ies 092402 pn=211 rear pto - rockford/twin disc 45 30 dpsg,ouo1004,738 –19–23mar99–1/1 install clutch unit rg3717 –un–25sep89 a—lock washer b—jam nut 1. be sure key is in place on drive shaft. 2. install clutch assembly on drive shaft. be sure pins on release collar are inserted in yoke arms&grease tube hole in release collar faces grease fitting hole in housing. 3. install new lock washer (a)&jam nut (b). tighten jam nut to specifications. specification drive shaft retaining nut— torque  230—244 n?m (170—180 lb-ft) bend side tab of lock washer against jam nut. 4. connect grease tube to housing. s11,5005,al –19–02feb94–1/1 check flywheel housing face run-out r22212 –un–14dec88 note: when measuring flywheel face/housing face, maintain end pressure on crankshaft to hold shaft against main thrust bearings. 1. mount dial indicator on flywheel. set pointer to contact pto mounting surface on flywheel housing at right angles. pointer should not contact holes in flywheel housing. 2. rotate flywheel by turning crankshaft. read dial indicator. specification flywheel housing face run-out—maximum variation 0.20 mm (0.008 in.) ctm67 (24sep02) 45-30 oem engine acces***ies 092402 pn=212 rear pto - rockford/twin disc 45 31 s11,5005,am –19–02feb94–1/1 check flywheel face flatness r22213 –un–14dec88 1. mount dial indicator base on flywheel housing. position pointer to contact driving ring mounting surface. do not allow pointer to contact driving ring mounting holes. important: maintain constant end pressure on crankshaft to hold shaft against thrust bearing when measuring flywheel face runout. 2. rotate flywheel by turning crankshaft. read total dial indicator movement. resurface flywheel face or replace as required. specification flywheel face flatness— maximum variation. 0.23 mm (0.009 in.) maximum variation per 25 mm (1.0 in.) of travel. 0.013 mm (0.0005 in.) s11,5005,an –19–02feb94–1/1 check pilot bearing bore r22214 –un–14dec88 1. mount dial indicator on flywheel housing face and position pointer to contact i.d. of pilot bearing bore in flywheel. 2. rotate flywheel by turning crankshaft. read dial indicator. specification flywheel pilot bearing bore concentricity—maximum variation 0.127 mm (0.005 in.) ctm67 (24sep02) 45-31 oem engine acces***ies 092402 pn=213 rear pto - rockford/twin disc 45 32 s11,5005,bo –19–02feb94–1/1 inspect drive ring rg4652 –un–06apr89 1. inspect clutch drive ring (arrow) for broken teeth, cracks,/distortion. replace as necessary. 2. if replaced, tighten cap screws to specifications. specification clutch drive ring cap screws— torque . 47 n?m (35 lb-ft) s11,5005,bp –19–02feb94–1/1 install power take-off if driving ring was removed, install at this time as described earlier. 1. install spacer (if equipped)&pilot bearing on drive shaft. sealed side of bearing must be installed facing clutch pack. 2. insert hook from chain hoist securely in inspection hole. 3. install pto on engine. (using two guide studs installed in flywheel housing will make pto installation easier.) important: be sure pilot bearing enters flywheel bore&driving disk teeth engage driving ring. 4. install pto to flywheel housing cap screws, and tighten to specifications. clutch housing-to-flywheel housing cap screws—specification side-load application—torque. 47 n?m (35 lb-ft) in-line application—torque 75 n?m (55 lb-ft) 5. install handle, if not previously installed. tighten cap screw securely. ctm67 (24sep02) 45-32 oem engine acces***ies 092402 pn=214 rear pto - rockford/twin disc 45 33 s55,2510,h –19–02feb94–1/1 check pto clutch adjustment—early version r27550 –un–14dec88 caution: entanglement in rotation driveline can cause serious injury/death. wear close fitting clothing. stop the engine&be sure pto driveline is stopped before servicing. 1. measure clutch engagement force at handle grip with a spring scale. the engagement force should be as follows: clutch engagement—specification series 300—force 267—311 n (60—70 lb) series 400, 6466d, t; 6466a ( -01994)—force 267—311 n (60—70 lb) series 400, 6466a (041995- ); 6076t,a,h—force 289—333 n (65—75 lb) series 500, 6619a ( -027449)— force  267—311 n (60—70 lb) series 500, 6619a (027450- ), 6101h,a&8.1 l, 10.5 l and 12.5 l—force 289—333 (65—75 lb) series 700—force. 378—422 (85—95 lb) important: improper adjustment of the pto clutch might shorten clutch life. make sure adjustments are made properly. 2. if adjustments are needed, disengage clutch and remove cover plate from clutch housing (shown removed). 3. remove cap screw&remove adjusting lock (a). 4. turn adjusting ring (b) to adjust clutch engagement pressure. check engagement pressure at clutch handle with spring scale. 5. install adjusting lock when specified engagement pressure is achieved. tighten cap screw securely. 6. recheck clutch engagement force with spring scale. install cover plate. disengage clutch. ctm67 (24sep02) 45-33 oem engine acces***ies 092402 pn=215 rear pto - rockford/twin disc 45 34 s55,2510,i –19–02feb94–1/1 check pto clutch adjustment—late version rg78255q1 –un–15dec88 a—lock screw b—locking cam c—body splines d—adjusting ring caution: entanglement in rotation driveline can cause serious injury/death. wear close fitting clothing. stop the engine&be sure pto driveline is stopped before servicing. 1. measure clutch engagement force at handle grip with a spring scale. the engagement force should be 289— 333 n (65—75 lb-force). clutch engagement—specification series 300—force 267—311 n (60—70 lb) series 400, 6466d, t; 6466a ( -01994)—force 267—311 n (60—70 lb) series 400, 6466a (041995- ); 6076t,a,h—force 289—333 n (65—75 lb) series 500, 6619a ( -027449)— force  267—311 n (60—70 lb) series 500, 6619a (027450- ) 6101h,a&8.1 l, 10.5 l and 12.5 l—force 289—333 (65—75 lb) series 700—force. 378—422 (85—95 lb) important: improper adjustment of the pto clutch might shorten clutch life. make sure adjustments are made properly. 2. if adjustments are needed, disengage clutch and remove cover plate from clutch housing (shown removed). 3. turn adjusting lock screw (a) to disengage locking cam (b) from clutch body splines (c). 4. turn adjusting ring (d) to adjust clutch engagement pressure. check engagement pressure at clutch handle with spring scale. 5. turn adjusting lock screw to engage locking cam with clutch body hub splines when specified engagement pressure is achieved. 6. recheck clutch engagement force with spring scale. install cover plate. disengage clutch. ctm67 (24sep02) 45-34 oem engine acces***ies 092402 pn=216 group 46 rear pto - john deere 46 1 dpsg,yz01324,25 –19–13sep02–1/11 special/essential tools note: order tools according to information given in the u.s. servicegard? catalog/from the european microfiche tool catalog (mtc). servicegard is a trademark of deere & company dpsg,yz01324,25 –19–13sep02–2/11 bearing drivers (do1045aa master set) 27535 - disc press on outer race of idler bearing into idler gear. dpsg,yz01324,25 –19–13sep02–3/11 bearing drivers (do1045aa master set) 27529 - disc press on outer race of idler bearing into idler gear and press on inner race of pump drive bearing onto pump drive gear. dpsg,yz01324,25 –19–13sep02–4/11 bearing drivers (do1045aa master set) 27489 - handle press on outer race of idler bearing into idler gear. dpsg,yz01324,25 –19–13sep02–5/11 bearing drivers (do1045aa master set) 27522 - disc press on inner race of pump drive bearing onto pump drive gear. continued on next page ctm67 (24sep02) 46-1 oem engine acces***ies 092402 pn=217 rear pto - john deere 46 2 dpsg,yz01324,25 –19–13sep02–6/11 bearing drivers (do1045aa master set) 27489 - handle press on inner race of pump drive bearing onto pump drive gear. dpsg,yz01324,25 –19–13sep02–7/11 bearing driver .7 1/2 inch disc press on outer race of bearing in seal retainer. dpsg,yz01324,25 –19–13sep02–8/11 yz2038 –un–24jun02 idler shaft puller jdg1664 remove primary&auxiliary idler shafts from rear pto housing dpsg,yz01324,25 –19–13sep02–9/11 yz2026 –un–25jun02 idler shaft press jdg1663 press primary&auxiliary idler shafts into rear pto housing dpsg,yz01324,25 –19–13sep02–10/11 seal&wear sleeve installer jdg974a simultaneously install seal&wear sleeve onto 8.1 l or 12.5 l rear pto drive gear. dpsg,yz01324,25 –19–13sep02–11/11 flywheel turning tool jde81-1 rotate engine flywheel one full revolution to center bearing in seal retainer&release any preload off ball bearing. ctm67 (24sep02) 46-2 oem engine acces***ies 092402 pn=218 rear pto - john deere 46 3 dpsg,yz01324,31 –19–07may99–1/1 other material number name use ty16285 (u.s.) john deere clean&cure primer cleans parts&speeds cure of sealant engine oil lubricates idler shaft, bearing outer races,&o-rings. acetone cleans mate surfaces on rear power take-off housing and auxiliary housing cover. ty9370 (u.s.) medium strength thread lock&locks&seals dowel pins&cap sealer screws that will require removal. loctite #5699 (u.s.) grey high performance rtv silicone seals auxiliary pump drive cover to gasket power take-off housing,&cover plates to power take-off housing. loctite #680 (u.s.) sealant apply to starter flywheel&input gear before installing seals loctite is a trademark of loctite corp. ctm67 (24sep02) 46-3 oem engine acces***ies 092402 pn=219 rear pto - john deere 46 4 dpsg,yz01324,27 –19–05may99–1/3 rear power take-off specifications for 8.1 l&12.5 l engines with primary and auxiliary pump drives (double pump) yz2074 –un–06mar02 power take-off (sae #1 housing with 12.5 l engine input gear) yz2065 –un–24jun02 power take-off (sae #2 housing with 8.1 l engine input gear) a—identification plate d—primary idler shaft group g—auxiliary idler shaft group j—starter ring b—magnetic pickup access e—52 tooth input gear h—auxiliary pump group k—flywheel access c—primary pump group f—seal retainer i—pto housing ctm67 (24sep02) 46-4 oem engine acces***ies 092402 pn=220 continued on next page rear pto - john deere 46 5 dpsg,yz01324,27 –19–05may99–2/3 pump drive output primary pump auxiliary pump type continuous rotation, no internal disconnect continuous rotation, no internal disconnect rotation direction counterclockwise clockwise pto shaft speed 1.3:1 speedup 1.3:1 speedup pto output power (max) 224 kw (300 hp) 112 kw (150 hp) note: total maximum pto output power when both outputs are used is 300 hp. item measurement specification weight values:1 pto sae #1 housing for 8.1 l weight* 527 lbs (239 kg) and 12.5 l engine w/ auxiliary pump pad pto sae #2 housing for 8.1 l weight* 557 lbs (253 kg) engine w/ auxiliary pump pad torque values: plugs (1/2-20 unf) to primary & torque 16 n?m (12 lb-ft) auxiliary pump housings (5) plugs (3/8-24 unf) to primary & torque 8 n?m (6 lb-ft) auxiliary pump housings (7) drain plug to power take-off torque 102 n?m (75 lb-ft) housing cap screws to flywheel access torque 37 n?m (22 lb-ft) cover plate (4) cap screws to primary idler shaft torque 37 n?m (22 lb-ft) cover plate (2) cap screws to auxiliary idler shaft torque 37 n?m (22 lb-ft) cover plate (2) cap screws to primary & auxiliary torque 270 n?m (200 lb-ft) pump sae ’c’ adapters (8) 1*weight values do not include flywheel assembly/cap screws used to hold flywheel to input gear, as they vary with the application. ctm67 (24sep02) 46-5 oem engine acces***ies 092402 pn=221 continued on next page rear pto - john deere 46 6 dpsg,yz01324,27 –19–05may99–3/3 item measurement specification cap screws to auxiliary pump torque 270 n?m (200 lb-ft) housing (4) cap screws to sae ’c’ adapter torque 103 n?m (76 lb-ft) caps (4) cap screws to mag pickup cover torque 11 n?m (8 lb-ft) plate (2) cap screws to rear pto housing torque 325 n?m (240 lb-ft) mounting (6) cap screws to lower front rear torque 50 n?m (37 lb-ft) pto housing cover (6) cap screws to starter flywheel torque 15 n?m (11 lb-ft) seal (8) cap screws to drive gear seal (2) torque 50 n?m (37 lb-ft) cap screws to flywheel (12) torque 170 n?m (125 lb-ft) idler shaft diameter measurements: primary idler shaft diameter 45mm (1.77 in.) auxiliary idler shaft diameter 40mm (1.57 in.) ctm67 (24sep02) 46-6 oem engine acces***ies 092402 pn=222 rear pto - john deere 46 7 dpsg,yz01324,27 –19–05may99–1/3 rear power take-off specifications for 8.1 l&12.5 l engines with primary pump drive (single pump) yz2075 –un–06mar02 power take-off (sae #1 housing with 12.5 l engine input gear) yz2076 –un–24jun02 power take-off (sae #2 housing with 8.1 l engine input gear) a—auxiliary idler shaft group d—primary idler shaft group g—magnetic pickup access j—flywheel access b—identification plate e—seal retainer h—auxiliary pump access k—pto housing c—primary pump group f—52 tooth input gear i—starter ring ctm67 (24sep02) 46-7 oem engine acces***ies 092402 pn=223 continued on next page rear pto - john deere 46 8 dpsg,yz01324,27 –19–05may99–2/3 primary pump drive output type continuous rotation, no internal disconnect rotation direction counterclockwise pto shaft speed 1.3:1 speedup pto output power (max) 224 kw (300 hp) item measurement specification weight values:1 pto sae #1 housing for 8.1 l weight* 444 lbs (202 kg) and 12.5 l engine pto sae #2 housing for 8.1 l weight* 474 lbs (215 kg) engine torque values: plugs (1/2-20 unf) to
