约翰迪尔 6081 低压缩活塞 Power Tech 6081 8.1L 低压缩活塞。至ESN 199,999。第1层, PowerTech 系列发动机和设备型号 6081 根据发动机序列号199,999 8.1L 低压缩活塞 4802 4806 发动机型号: 6081HF001 孔径: 4.56in116mm 销径Ø: 1.8742in(+/-.0002)=47mm 连杆（米): R116340(ToESN86,536) R501034(从86,537) 连杆（米): RE70688 RE64509 洋马发动机农业 2266 9640iWTS 3510 9650 4920 9650CTS

产品咨询

约翰迪尔采棉机应用的发动机零件

设备型号备注

499 Small pin, O'rings on block, Con Rod (m): T20007, R81410, To ESN 275,483

9986 Low Compression Piston. To ESN 199,999. Tier 1

9900 Liter designated, Con Rod (m): R80034, Piston (m): RE30250

9940 Con Rod (m) R57303, R67320

499 Large pin, O'rings on block, Con Rod (m): R51727, R80034, From ESN 275,484

9996 Low Compression Piston. To ESN 199,999. Tier 1

9910 Liter designated, Con Rod (m): R80034, Piston (m): RE30250

9940 Con.Rod (m) R71074 (P/N AR93341)

699 Small pin, O'rings on liner, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, R51451, AR78310

7660 9.0 Liter Tier 2 & Tier 3

9920 Liter designated, Con Rod (m): R80034, Piston (m): RE30250

9950 Con.Rod (m) R71074 (P/N AR93341)

499 Small pin, O'rings on block, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, AR78310

7445 Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278

9940 Con Rod (m) R71074 (P/N AR93341)

699 Small pin, O'rings on block, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, AR78310

7484 Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278

9950 Con Rod (m) R71074 (P/N AR93341)

499 Large pin, O'rings on block, Con Rod (m): RE16495, Piston (m): AR77762

9930 Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278

9960 High Ring Piston, Con Rod (m): R71074 (P/N AR93341)

7440 Con Rod (m): R80034, Piston (m): RE30250

7445 Liter designated, Con Rod (m): R80032, Piston (m): RE22678

7455 Piston (m) RE59277, RE505100

7445 Con Rod (m): R80034, Piston (m): RE30250

7484 Liter designated, Con Rod (m): R80032, Piston (m): RE22678

7460 Piston (m) RE59277, RE505100

9900 Con Rod (m): R80034, Piston (m): RE30250

9930 Liter designated, Con Rod (m): R80032, Piston (m): RE22678

9970 High Compression Piston. To ESN 199,999. Tier 1

9910 Con Rod (m): R80034, Piston (m): RE30250

699 Block (m) R40610, R40620, R45950, R47170, R48440

9976 Low Compression Piston. To ESN 199,999. Tier 1

9920 Con Rod (m): R80034, Piston (m): RE30250

699 Block (m) R49470, R49650, R59850, R72128, R87558

设备型号	备注
499	Small pin, O'rings on block, Con Rod (m): T20007, R81410, To ESN 275,483
9986	Low Compression Piston. To ESN 199,999. Tier 1
9900	Liter designated, Con Rod (m): R80034, Piston (m): RE30250
9940	Con Rod (m) R57303, R67320
499	Large pin, O'rings on block, Con Rod (m): R51727, R80034, From ESN 275,484
9996	Low Compression Piston. To ESN 199,999. Tier 1
9910	Liter designated, Con Rod (m): R80034, Piston (m): RE30250
9940	Con.Rod (m) R71074 (P/N AR93341)
699	Small pin, O'rings on liner, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, R51451, AR78310
7660	9.0 Liter Tier 2 & Tier 3
9920	Liter designated, Con Rod (m): R80034, Piston (m): RE30250
9950	Con.Rod (m) R71074 (P/N AR93341)
499	Small pin, O'rings on block, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, AR78310
7445	Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278
9940	Con Rod (m) R71074 (P/N AR93341)
699	Small pin, O'rings on block, Con Rod (m): T20007, R81410, Piston (m): RE53265, T30015, AR78310
7484	Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278
9950	Con Rod (m) R71074 (P/N AR93341)
499	Large pin, O'rings on block, Con Rod (m): RE16495, Piston (m): AR77762
9930	Con Rod (m): R80032, R113612, Piston (m): RE22678, RE19278
9960	High Ring Piston, Con Rod (m): R71074 (P/N AR93341)
7440	Con Rod (m): R80034, Piston (m): RE30250
7445	Liter designated, Con Rod (m): R80032, Piston (m): RE22678
7455	Piston (m) RE59277, RE505100
7445	Con Rod (m): R80034, Piston (m): RE30250
7484	Liter designated, Con Rod (m): R80032, Piston (m): RE22678
7460	Piston (m) RE59277, RE505100
9900	Con Rod (m): R80034, Piston (m): RE30250
9930	Liter designated, Con Rod (m): R80032, Piston (m): RE22678
9970	High Compression Piston. To ESN 199,999. Tier 1
9910	Con Rod (m): R80034, Piston (m): RE30250
699	Block (m) R40610, R40620, R45950, R47170, R48440
9976	Low Compression Piston. To ESN 199,999. Tier 1
9920	Con Rod (m): R80034, Piston (m): RE30250
699	Block (m) R49470, R49650, R59850, R72128, R87558

约翰迪尔 6081 低压缩活塞

PowerTech

系列

发动机和设备型号

6081

根据发动机序列号199,999

8.1L

低压缩活塞

4802 4806

发动机型号:

6081HF001

孔径:
4.56 in 116 mm

销径 Ø:
1.8742 in (+/- .0002) = 47 mm

连杆（米):

R116340 (To ESN 86,536)

R501034 (从 86,537)

连杆（米):

RE70688

RE64509

洋马发动机

农业

2266

9640i WTS

3510

9650

4920

9650 CTS

6610

9660

6650

9660 CTS

7200

9660 WTS

8400

9660i WTS

8410

9680 WTS

8410T

9680i WTS

8420

9750 STS

8420T

9760STS

8520

9780 CTS

8520T

9850i WTS

9100

9976

9120

9986

9560

9996

9560 STS

CH3510

9580 WTS

CTS

9610

CTS II

9640 WTS

CTS III

9650 STS

9660 STS

9780i CTS

发动机大修包

																				TOK504202

																					(点击查看套件内容)

发动机内部修理套件

																				TIK504202

																					(点击查看套件内容)

TIK504202A

(点击查看套件内容)

(13)

活塞缸套组件

TRE508156

组成:

TRE70689

																							b)

																				TRE503528

																							c)

																				TR57771

																							d)

																				TR116236

																							e)

																				TAR98850

																							f)

																				TE1343FN

主轴瓦

TRE529319

Std.

TRE534181

0.0115

需要6片

止推轴承

TRE529320

Std.

TRE504199

0.0115

需要1片

止推垫片

																				TRE61253

																							Std.

使用3片 ,订购数量：1

连杆瓦

TR116081

Std.

TRE57167

0.0115

需要6片

前油封

TAR49025

																							2)

																				后油封

TRE520036

曲轴，齿轮

TR104587

																							4)

																				曲轴

																				TRE535300

																							(1)

																				TRE534314

																							(2)

齿环

TR28811

后齿轮

TR63326

密封圈维修包

TRE506220

衬垫套

TRE506222

气缸垫

TRE55475

机油底壳垫圈

TR71918

(3)

连杆衬套

TR74008

连杆螺栓

TR66452

x12

(4)

TR501035

x12

(4)

																							3)

																				凸轮轴衬套

																				TR87561

																							x4

																							4)

																				连杆

																				TRE53154

																							(10)

																				TRE535555

																							(11)

凸轮轴塞

TR82007

																							2)

																				机油冷却器

TAR55394

																							3)

																				挺柱

																				TR110126

																							x12

																							4)

																				紧张轮

																				TRE518097

																							(9)

																				TRE68715

																							(9)

																				TRE57498

																							(9)

																							1)

																				水泵

TRE521502

																				TRE521503

																							(12)

																							2)

																				O型圈安装组件

TRE509463

阀门部分

进气门

TR84618

Std.

																				TR93308

																							0.003

																				TR93312

																							0.015

排气门

TR84619

Std.

																				TR93311

																							0.003

																				TR93313

																							0.015

插入阀：进气

TR121193

Std.

																							2)

																				插入阀：排气

																				TR119132

																							Std.

																							1)

																				阀盖

TT20129

气门锁夹

TT20077

屏蔽阀

TR102882

(5)

TR501640

(6)

																							1)

																				弹簧阀

TR91822

																							1)

																				节温器

TAR48675

180° F

节温器外壳密封

TR136063

凸轮轴衬套

TRE60622

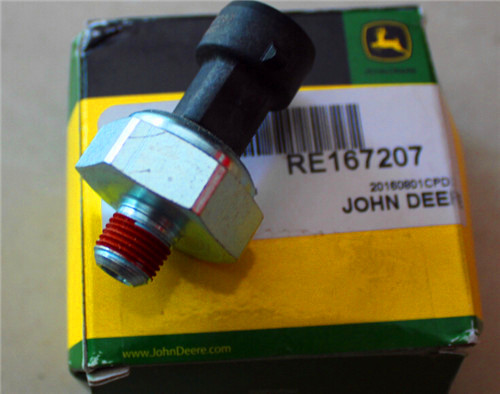

油压传感器

TRE167207

(9)

水温传感器

TRE52722

(9)

曲轴传感器

TRE519144

(9)

（1）用螺旋油泵驱动齿轮。不要与HPCR燃油系统一起使用。

（2）带直油泵传动齿轮。

（3）用铝油盘使用TR49377（RE504822）。

（4）使用TR66452杆式螺栓和机器分体式连杆，并使用带断裂分体式连杆的TR501035杆式螺栓。

（5）发动机ESN 199,999及以下。仅适用于Exaust Valves。

（6）发动机ESN 200,000及以上。仅适用于Exaust Valves。

（7）发动机ESN 199,999及以下。

（8）发动机ESN 200,000及以上。

（9）检查应用程序是否正确使用。

（10）机器分体连杆。使用棒螺栓TR66452。

（11）破裂的分裂连杆。使用棒螺栓TR501035。

（12）高流量。

（13）与断裂分体连杆一起使用。
