沃尔沃柴油机柴油发电机机油冷却器TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE

沃尔沃柴油机柴油发电机机油冷却器TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE

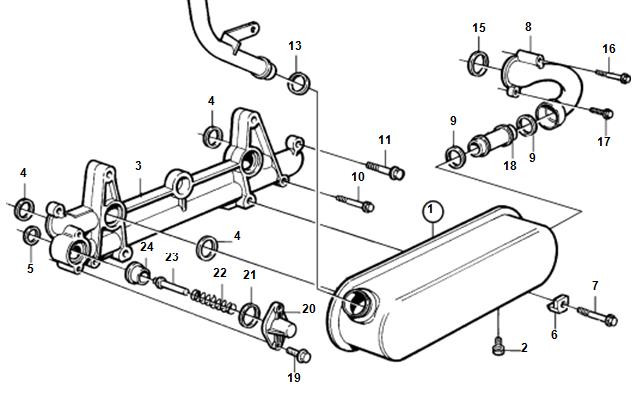

Oil Cooler

TWD1620G, TWD1630G, TAD1630G, TAD1630GE, TAD1631G, TAD1631GE

Ref   Part No.   Qty     Description                  Notes

1   8149982     1   Oil cooler 2        479979       1       Plug

3   1556594     1   Plate

4       8192187       4   Sealing ring

5       8192189       1   Sealing ring 6      471804          4   Holder

7          965189       4   Flange screw

8       1543868       1   Tube, cylinder block

9       1556905       2   Sealing ring 10        965216          2   Screw

11      946671       2   Flange screw

12   1556882     1   Tube                                 (1543813)

13       1556905       1   Sealing ring

14       1543572       2   Sealing ring

15       1556949       1   Sealing ring

16           965217       1   Flange screw

17           946671       1   Flange screw 18          471634       1   Tube

19      946671       2   Flange screw 20   1543608               1   Cover

21       1543577       1   Sealing ring

22       1543615       1   Spring                              BY-PASS 23   1543610               1   Peg

24   1543964     1   Valve seat



机油冷却器

参考零件号/数量说明注释

1·8149982 1·机油冷却器2 479979 1螺塞

3 1556594 1板

4 8192187 4·密封圈

5 8192189 1·密封圈6 471804 4·支架

7 965189 4法兰螺钉

8 1543868 1·气缸体管

9 1556905 2密封圈10 965216 2螺钉

11 946671 2法兰螺钉

12·1556882 1·卡套管（1543813）

13 1556905 1密封圈

14 1543572 2密封圈

15 1556949 1密封圈

16 965217 1法兰螺钉

17 946671 1法兰螺钉18 471634 1卡套管

19 946671 2法兰螺钉20 1543608 1盖

21 1543577 1密封圈

22 1543615 1弹簧BY-PASS 23 1543610 1销钉

24·1543964 1·阀座
