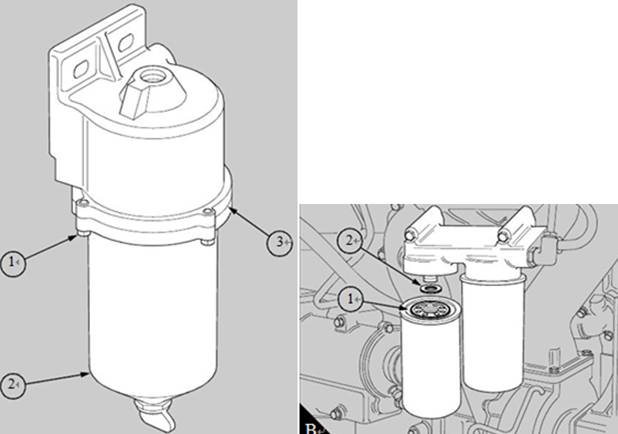

1 Remove the three bolts (A1) and remove the filter

1拆下三个螺栓（A1）和删除筛选器

bowl (A2).

碗（A2）。

2 Clean all of the components with paraffin and dry

2清洁所有的部件，石蜡和干燥

them with a compressed air jet.

他们用压缩空气喷射。

3 Fit the bowl to the filter head, together with a new

3将碗装在过滤器头上，连同一个新的

sealing ring. Align the clamp ring (A3) and fasten it

密封圈。将夹紧环（A3）和固定

with the three bolts.

用三个螺栓。

Early engines can be fitted with filters that have

早期的引擎可以安装有过滤器

elements which can be cleaned. These elements

可清洗的元素。这些元素

should be removed, cleaned with fuel oil and dried

应清除，用燃油清洗和干燥

with a compressed air jet.

用压缩空气喷射。

How to renew the canister of the main fuel

如何更新主燃料罐

The main fuel filter is at the rear of the engine on the

主燃油滤清器位于Perkins3012发动机后部的后部

‘B’ bank side and has two canisters. Both canisters

B银行边有两罐。两罐

must be renewed at the same time.

必须在同一时间更新。

1 Clean the area around the filter and remove the fuel

1清洗过滤器周围的区域并移除燃料

filter canisters. If necessary, use a strap wrench.

过滤罐。如果有必要，使用带扳手。

Discard the canisters.

废罐。

2 Check that the sealing ring (B1) is fitted correctly to

2检查密封圈（B1）正确安装到

each new canister and clean the contact faces of the

每一个新的罐和干净的接触面

filter head.

滤头。

3 Lubricate the top of the canister seal (B1) with clean

3润滑密封的罐顶（B1）与清洁

fuel oil and renew the sealing ring (B2) on the adaptor.

燃料油更换密封圈（B2）的适配器。

4 Fit the new canisters to their threaded adaptors and

4安装新的滤毒罐的螺纹接头和

tighten each canister until the sealing ring just comes

拧紧每一罐直到密封环才出现

into contact with the filter head. Continue to tighten

接触过滤头。继续收紧

overtighten.

过紧。

After the fuel filter canisters have been renewed,

在燃料过滤器罐已更新，

eliminate air from the low pressure fuel system as
