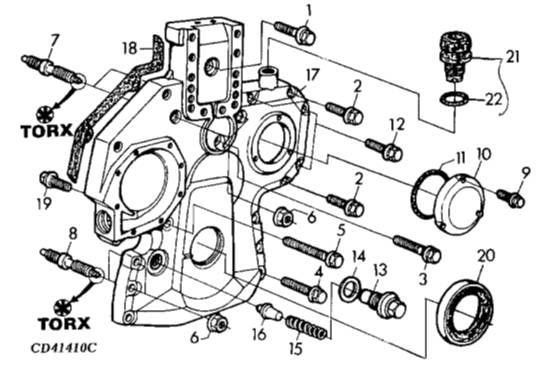

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 19M8291 SCREW 1 X M8 X 35, (10.9)

2 19M8317 SCREW 4 X M8 X 40, (10.9)

3 RE67239 SCREW 1 X WITH SEALANT

4 19M7979 SCREW 2 X M8 X 55, (10.9)

5 19M7801 SCREW 1 X M8 X 60, (10.9)

6 14M7296 FLANGE NUT 6 X M10, (10)

7 R134518 STUD 2 X LGTH 68MM

8 R123584 STUD 4 X LGTH 79MM

9 19M7775 SCREW 3 X M6 X 16, (10.9)

10 R121411 COVER 1 X

11 R121424 O-RING 1 X

12 19M7800 SCREW 2 X M8 X 50, (10.9)

13 R91692 PLUG 1 X

14 A4827R WASHER 1 X

15 T27658 SPRING 1 X LGTH 119MM

16 R83169 VALVE 1 X

17 R134531 COVER 1 X

18 R136516 GASKET 1 X

19 19M7867 SCREW 1 X M8 X 25, (10.9)

20 .................. SEAL 1 X NSEP, ORD KIT RE59810

21 RE501938 PLUG 1 X

22 51M7044 O-RING 1 X 17.300 X 2.200 MM

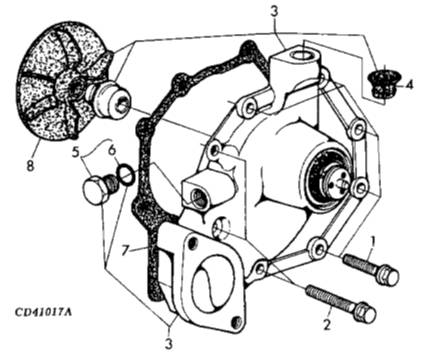

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 19M7863 SCREW 5 X M6 X 25, (10.9)

2 19M7796 SCREW 3 X M6 X 30, (10.9)

3 RE500737 WATER PUMP 1 X ASSY, INCL. KEYS 4-6,8, (ALSO ORDER R123417

AND R123226)

4 R123226 GASKET 1 X

5 RE46685 PLUG 1 X M18 X 1.5

6 51M7043 O-RING 1 X 15.300 X 2.200 MM

7 R123417 GASKET 1 X

8 .................. IMPELLER 1 X MARKED R121036, ORD KIT RE71240

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 19M8291 SCREW 1 X M8 X 35, (10.9)

2 19M8317 SCREW 4 X M8 X 40, (10.9)

3 RE67239 SCREW 1 X WITH SEALANT

4 19M7979 SCREW 2 X M8 X 55, (10.9)

5 19M7801 SCREW 1 X M8 X 60, (10.9)

6 14M7296 FLANGE NUT 6 X M10, (10)

7 R134518 STUD 2 X LGTH 68MM

8 R123584 STUD 4 X LGTH 79MM

9 19M7775 SCREW 3 X M6 X 16, (10.9)

10 R121411 COVER 1 X

11 R121424 O-RING 1 X

12 19M7800 SCREW 2 X M8 X 50, (10.9)

13 R91692 PLUG 1 X

14 A4827R WASHER 1 X

15 T27658 SPRING 1 X LGTH 119MM

16 R83169 VALVE 1 X

17 R134531 COVER 1 X

18 R136516 GASKET 1 X

19 19M7867 SCREW 1 X M8 X 25, (10.9)

20 .................. SEAL 1 X NSEP, ORD KIT RE59810

21 RE501938 PLUG 1 X

22 51M7044 O-RING 1 X 17.300 X 2.200 MM

ENGINES

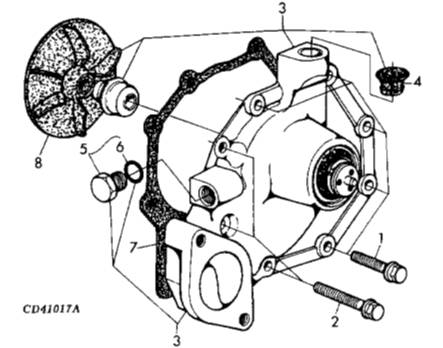

KEY PART NO. PART NAME QTY SERIAL NO. H REMARKS

1 19M7863 SCREW 5 X M6 X 25, (10.9)

2 19M7796 SCREW 3 X M6 X 30, (10.9)

3 RE500734 WATER PUMP 1 X ASSY, INCL KEYS 4-6,8, (ALSO ORDER R123417

AND R123226)

4 R123226 GASKET 1 X

5 RE46685 PLUG 1 X M18 X 1.5

6 51M7043 O-RING 1 X 15.300 X 2.200 MM

7 R123417 GASKET 1 X

8 .................. IMPELLER 1 X MARKED R123395, ORD KIT RE70962

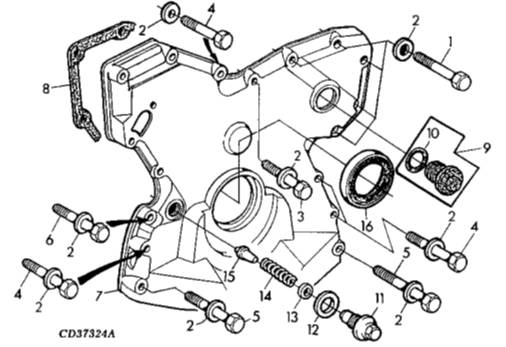

KEY PART NO. PART NAME QTY SERIAL NO. T REMARKS

1 19H3065 CAP SCREW 5 X 3/8" X 2", (SAE 8)

2 24M7106 WASHER 13 X 10 X 18 X 2.500 MM

3 19H1726 CAP SCREW 1 X 3/8" X 2-1/4"

4 19H2733 CAP SCREW 4 X 3/8" X 2-3/8", (SAE 8)

5 19H3031 CAP SCREW 2 X 3/8" X 2-1/2", (SAE 8)

6 19H2549 CAP SCREW 1 X 3/8" X 1-7/8"

7 .................. COVER 1 X ALUMINIUM, MARKED R122417, ORD RE51527

8 R97454 GASKET 1 X

9 RE52977 DRAIN PLUG 1 X M42 X 2

10 51M7049 O-RING 1 X 38.600 X 2.900 MM

11 R91692 PLUG 1 X 1"-16UNC

12 A4827R WASHER 1 X

13 24H1290 WASHER AR X 21/64" X 3/4" X 0.035"

14 T27658 SPRING 1 X LGTH 119MM

15 R83169 VALVE 1 X

16 AR67942 SEAL 1 X
