Perkins4016柴油发动机冷却系统概述（冷却系统）

Perkins4016工业柴油发动机冷却系统概述（冷却系统）

在本手册中和在产品上都提供有安全预防措施和警告。如果对这些警告不予注意会给自己或他人造成人身伤亡。

识别危险用“安全警告符号”和“标志文字”，如“危险”、“警告”或“当心”。“警告”标贴如下所示

Perkins4016柴油发动机冷却系统概述

该发动机有一种加压冷却系统。此冷却系统有两个优势。

·压力有助于防止气穴。

·沸腾的风险降低。

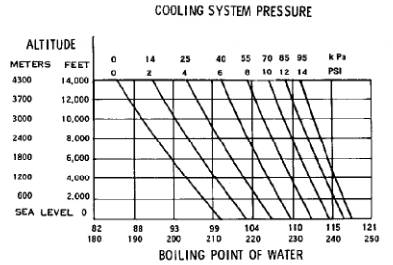

沸点受三种因素影响：压力，海拔和冷却液中的乙二醇浓度。液体沸点随着压力增加而增加。液体沸点随着海拔高度增加而降低。图39显示压力和海拔对水的沸点的影响。

冷却液沸点也取决于冷却液的类型和乙二醇的浓度。乙二醇浓度越大，沸点越高。但是，乙二醇传热效果不及水。因为沸点和传热的效率，乙二醇的浓度很重要。与冷却系统相关的有三个基本故障

·过热

·冷却液损失

·过冷

如果冷却系统没有正确保养，如结垢和沉淀物等固体会降低冷却系统的传热的能力。发动机工作温度会升高。

当发动机超载时，发动机将在拖动状态下运转。当发动机在拖动状态下运转，也即发动机在较低的转速下运转，这样降低了冷却液液流。在高负载下减少冷却液液流将引起过热。泄漏使冷却液缺失。过热的冷却液可通过冷却系统压力安全阀溢出。较低的冷却液液位也会产生过热。过热导致象缸盖裂纹和活塞粘缸现象发生。

缸盖或气缸套裂纹将迫使废气进人冷却系统。额外的压力引起'冷却液丢失、水泵气穴、冷却液循环量少和进一步的过热。

过冷是冷却液旁通水温调节器的结果并直接流人散热器或热交换器。在低环境温度下低负载工作可能引起过冷。过冷由水温调节器保持打开引起的。过冷降低工作效率。过冷使发动机机油快速污染。这样导致曲轴箱形成油泥，气门积炭。加热和冷却循环过快可能导致气缸盖裂纹、密封垫故障、加速磨损和燃油消耗过量。如果怀疑冷却系统有故障，在对系统进行任何测试前，进行目视检查。

Perkins柴油发动机机油冷却器压力测试

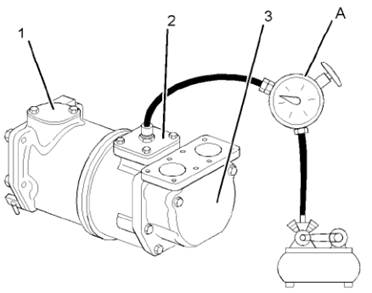

1．制作护板(1)。制作连有空气管接头的护板。

2．用干净的热水加注机油冷却器．使水位在出口法兰范围内。

3．将新接头安装至护板(1)和(3)。将护板(1)和(3)安装至机油冷却器。

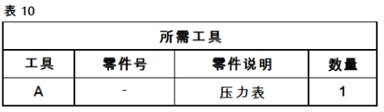

4．将压缩空气连接至机油冷却器。使用工具(A)。将压力设置为345 kPa (50 psi)o压力应持续三分钟保持稳定。

目视检查

冷却系统如果不进行定期检查就会引起发动机温度升高。在用测试设备进行测试之前．先对冷却系统进行目视检查。

警告：加压的系统：热的冷却液能造成严重的烫伤。在发动机停机．等待冷却系统部件冷却下来后再打开冷却系统加注口盖。暖慢松开冷却系统加注口盖，以释放掉所有压力。

1．检查冷却系统中的冷却液液位。读取位于散热器（如有配备）上端的两个冷却液液位指示仪指示的液位位置。

2．查看冷却系统有无渗漏。

3．查看芯件散热片是否弯曲或散热器散热片之间有无碎屑（如有配备）。确保流过散热器的空气没有阻塞。

4．检查风扇叶片是否损坏（如有配备）。

5．发动机冷却后，缓慢取下加注口盖。这会使冷却系统内的所有压力释放出来。检查加注口盖和气密封表面。该表面必须清洁，密封必须无损。

6．检查压力安全阀。请联系OEM了解更多信息。

Perkins柴油发动机水温调节器（节温器）一测试

警告：热的冷却液、蒸汽和碱会造成人身伤害。在工作温度下，发动机冷却液是热的而且处在压力下。散热器和所有到加热器的管路或发动机中都有热的冷却液或蒸汽。与它们的任何接触都会造成严重烫伤。只有当发动机停机且散热器盖已经冷却到可以徒手触摸时，再慢慢拆下过滤器盖以释放压力。冷却系统调节器含碱。应避免它与皮肤和眼睛接触。

注：该信息仅适用于安装在发动机上的淡水温度调节器。

1．从发动机上拆下水温调节器。

2．在适当的容器内逐渐加热冶却液。

3．将水温调节器悬挂在冷却液容器内。水温调节器必须浸没在容器中冷却液面以下，但远离容器四周和底部。

4．保持冷却液处于正确温度10分钟。水温调节器开启温度为71.C。

5. 10分钟后，取出水温调节器。确保水温调节器的阀完全开启。如果水温调节器的阀不能在规定温度下开启，更

换水温调节器。更多信息，请参阅《操作和保养手册》，“水温调节器．更换”。
